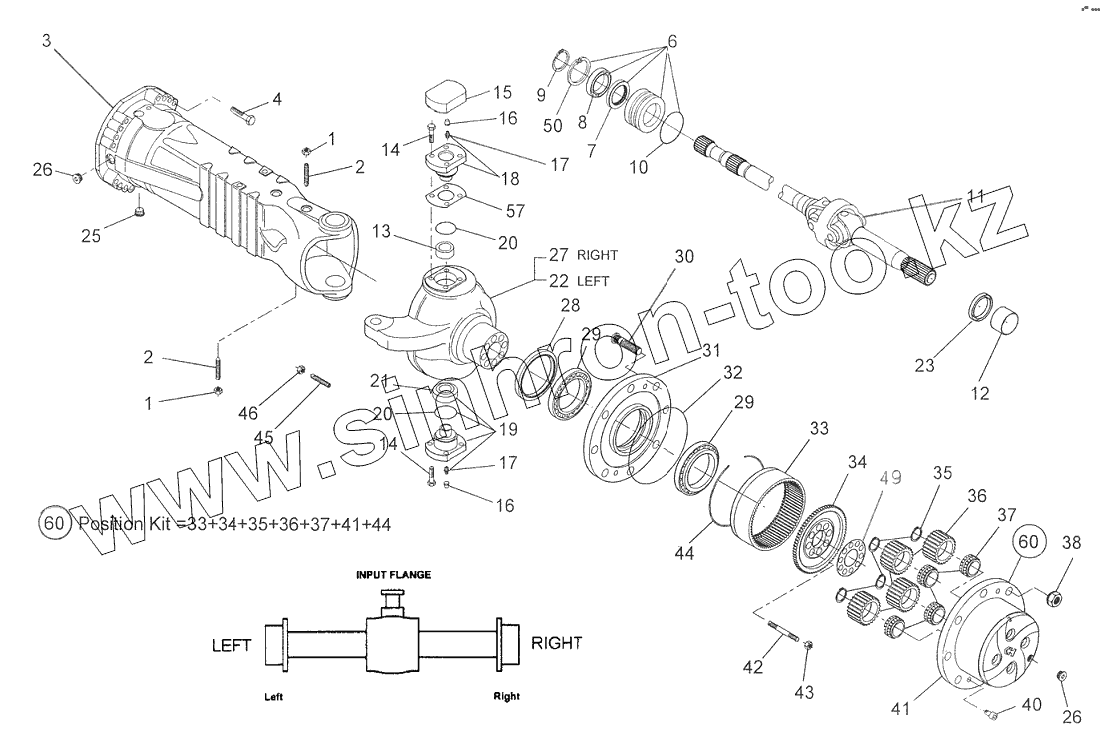

Каталог запасных частей к технике: CARMIX-3.5TT. FRONT AXLE: EPYCICLIC REDUCERS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
4
6
7
8
9
10
11
12
13
14
14
15
16
16
17
17
18
19
20
20
21
22
23
25
26
26
27
28
29
29
30
31
32
33
34
35
36
37
38
40
41
42
43
44
45
46
49
50
57
57
57
57
57
60
Позиция на иллюстрации Заводской номер детали Название детали
1 016.0004.0043 Nut
2 017.0035.0008 Steering adjust bolt
3 017.0035.0009 Axle case
4 016.0041.0026 Bolt
6 017.0035.0010 Reduction bushing
7 017.0004.0023 Seal
8 017.0004.0024 Ball bearing
9 017.0004.0025 Circlip
10 017.0035.0011 O – Ring
11 017.0035.0012 Joint
12 017.0026.0027 Thrust bushing
13 017.0035.0013 Outer race
14 017.0035.0014 Bolt
15 017.0035.0015 Cover
16 017.0026.0035 Plug
17 018.0003.0071 Grease fitting
18 017.0035.0016 Pivot pin
19 017.0035.0017 Pivot pin
20 017.0035.0018 Seal
21 017.0035.0019 Articulation
22 017.0038.0044 Steering case
23 017.0035.0061 Seal
25 016.0041.0005 Magnet plug
26 017.0038.0035 Plug
27 017.0038.0045 Steering case
28 016.0041.0027 Seal
29 016.0041.0030 Bearing
30 017.0014.0021 Wheel stud
31 016.0041.0029 Wheel hub
32 016.0004.0004 O – Ring
33 016.0041.0032 Ring gear
34 016.0041.0033 Ring gear support
35 016.0041.0035 Circlip
36 016.0041.0036 Planet gear
37 016.0041.0037 Bearing
38 017.0014.0023 Nut
40 016.0041.0039 Countersunk bolt
41 016.0041.0040 Planet gear carrier
42 016.0041.0042 Stud
43 016.0041.0041 Nut
44 016.0041.0031 Circlip
45 017.0038.0042 Adjusting bolt
46 017.0038.0042 Adjusting bolt
49 016.0041.0034 Locking plate
50 017.0004.0026 Circlip
57 017.0035.0023 Shim
57 017.0035.0024 Shim
57 017.0035.0025 Shim
60 017.0035.0057 Planet gear carrier
