Каталог запасных частей к технике: BOMAG BW 24RH. Seat Support

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BC772RB-2 (2017) BF 300 C S340 TV BM1300-30-2 (2011) BW 211D-40 BW 24R (2007) BW 24RH (2012) BW120AD-5 (2017) BW211D-40 (2007)

Схема > Не выбрано Engine Parts List TCD2012L04 Crankcase Crankcase Crankcase Crankcase Crankcase Crankcase Crankcase Crankcase Crankcase Crankcase Crankcase Oil Pan Cylinder And Piston Cylinder And Piston Crankshaft Crankshaft Crankshaft Crankshaft Crankshaft Crankshaft Cylinder Head Cylinder Head Cylinder Head Cylinder Head Camshaft Control Pieces Control Pieces Oil And Fuel Filter Oil And Fuel Filter Lube Oil Cooler Lube Oil Cooler Lube Oil Cooler Lube Oil Cooler Lube Oil Cooler Lube Oil Cooler Lube Oil Cooler Lube Oil Tube Injection Pump Injection Pump Injection Pump Injection Valve Injection Valve Fuel Pipes Fuel Pipes Fuel Pipes Fuel Pipes Fuel Pipes Fuel Pipes Suction Pipe And Exhaust Suction Pipe And Exhaust Throttle Control Throttle Control Throttle Control Throttle Control Throttle Control Throttle Control Air Compressor Air Compressor Air Compressor Air Compressor Air Compressor Cooling Blower Cooling Blower Cooling Blower Cooling Blower Cooling Blower Cooling Blower Cooling Blower Cooling Blower Cooling Blower Turbocharger Turbocharger Turbocharger Turbocharger Turbocharger Turbocharger Turbocharger Turbocharger Generator And Starter Generator And Starter Generator And Starter Generator And Starter Generator And Starter Generator And Starter Engine Mounts Engine Mounts Engine Mounts Engine Mounts Engine Mounts Engine Mounts Engine Mounts Electrical Equipment Electrical Equipment Electrical Equipment Electrical Equipment Electrical Equipment Electrical Equipment Connecting Housing Connecting Housing Connecting Housing Connecting Housing Engine Shut Off Engine Shut Off Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Seal Kit Fuel Lift Pump Boost Fuel Supply Boost Fuel Supply Boost Fuel Supply Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Engine Engine Pump Mounting Pump Mounting Air Filter Exhaust System Exhaust System Radiator System Radiator System Radiator System Fuel Prefilter Dry Air Filter Clutch Combination radiator Power Transmission / Actuation Wheel Drive Wheel Drive Actuation Transmission Transmission Transmission Transmission Brake system Brake System Brake System Brake System Steering System Steering Steering Steering Steering Steering Frame with Attachment Parts Frame Frame Frame Noise Insulation Hood Hood Fuel Tank Fuel Tank Hydraulic Oil Tank Hydraulic Oil Tank Water Tank Oil Tank Scraper Scraper Sprinkler System Sprinkler System Sprinkler System Operators Platform Operators Platform Operators Platform Seat Support Seat Support Operator's Seat Operator's Seat Water Pump Drum /Tyres Smooth Tyre Electrical System Central electric Battery Dashboard Dashboard Electrical Equipment Central electric, assembled Central electric, assembled Central electric, assembled Wiring Harness Wiring Harness Wiring Harness Wiring Harness Wiring Harness Hydraulic Hydraulic, Travel System Hydraulic, Travel System Hydraulic, Travel System Hydraulic, Travel System Hydraulic, Travel System Brake Valve Hydraulics, Steering Hydraulics, Steering Priority Valve Hydraulic Filter Hydraulic Pump Hydraulic Pump Hydraulic Motor Hydraulic Motor Hydraulic Motor Hydraulic Motor Hydraulic Motor Hydraulic Motor Hydraulic Motor Hydraulic Motor Hydraulic Motor Way Valve Hydraulic Oil Filter Priority Valve Filter, Hydraulic Oil Hydraulic Cylinder Control Block Filling strainer Steering Pump Valve Block M35-Winter package M35-Winter package M35-Winter package S5-ROPS-FOPS S5-ROPS-FOPS S5-ROPS-FOPS S3-Sun roof S3-Sun roof S3-Sun roof E21-Radio FS10-Railing FS10-Railing FS10-Railing SP1-TUV-Approval S18-Cabin with air cond. S18-Cabin with air cond. S18-Cabin with air cond. S18-Cabin with air cond. S18-Cabin with air cond. S1-Cabin with heating S1-Cabin with heating S1-Cabin with heating RA12-Frame-waterproof J16-Ballast.weight 4800 kg J17-Ballast.weight 3200 kg J18-Ballast.weight 1600 kg J23-Ballast resin 10400kg T4-Thermical apron T4-Thermical apron T4-Thermical apron T4-Thermical apron Vandalism protection, assembled Q10-Coco mats with scraper Q10-Coco mats with scraper Q10-Coco mats with scraper Q10-Coco mats with scraper Q11-Scraper with brush Q11-Scraper with brush Q11-Scraper with brush Q11-Scraper with brush SL12-Decals USA Cab Cab Cab Cab Cab Cab Cab Cab Cab Cab Cab Cab Heating Unit Heating Unit Heating climatic unit Heating climatic unit Wiper motor T91-Profiled tyre T91-Profiled tyre T3-Tyre Inflator T3-Tyre Inflator T3-Tyre Inflator T23-Tyres dunlop T75-Tyres E1-Working lighting E1-Working lighting E20-Lamp protection E51-Generator 230V/50Hz/DE E51-Generator 230V/50Hz/DE E51-Generator 230V/50Hz/DE E51-Generator 230V/50Hz/DE E51-Generator 230V/50Hz/DE AZ12-Tachograph w.connector AZ12-Tachograph w.connector AZ9-Speedometer AG6-Edge cutter AG6-Edge cutter AG6-Edge cutter AG6-Edge cutter Gear pump Edge cutter

1

2

3

4

5

6

7

8

9

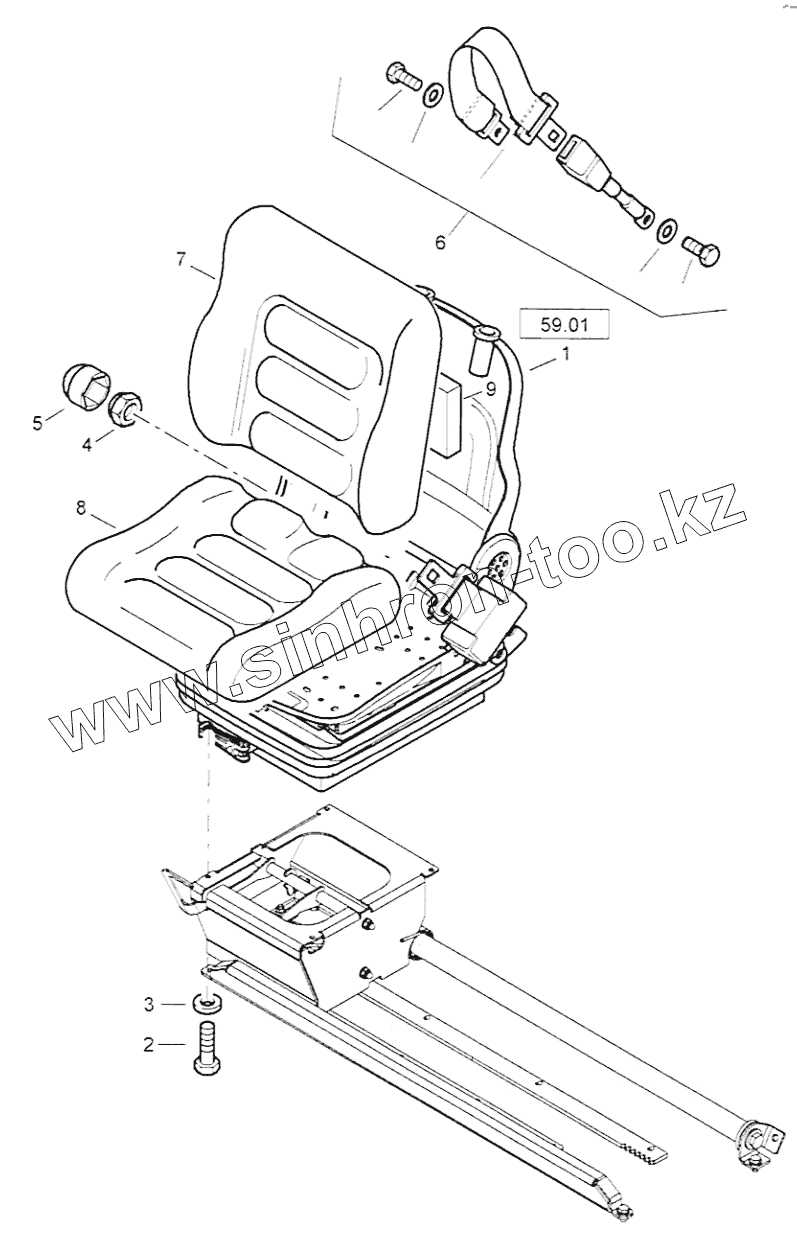

Позиция на иллюстрации	Заводской номер детали		Название детали
1	05570569		Operator's seat
2	07140824		Hexagon bolt
3	08752084		Spring washer
4	08130813		Safety nut
5	06510175		Protection cap
6	05570425		Seat belt
7	05570571		Cushion for backrest,PVC
8	05570570		Cushion for seat,PVC
9	05570577		Rubber plate

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
