Каталог запасных частей к технике: BOMAG BW 24RH. Cab
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
16
17
17
18
19
20
20
21
21
22
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
47
48
49
50
51
53
54
55
55
56
57
58
59
60
61
62
64
66
67
68
69
70
71
72
73
74
75

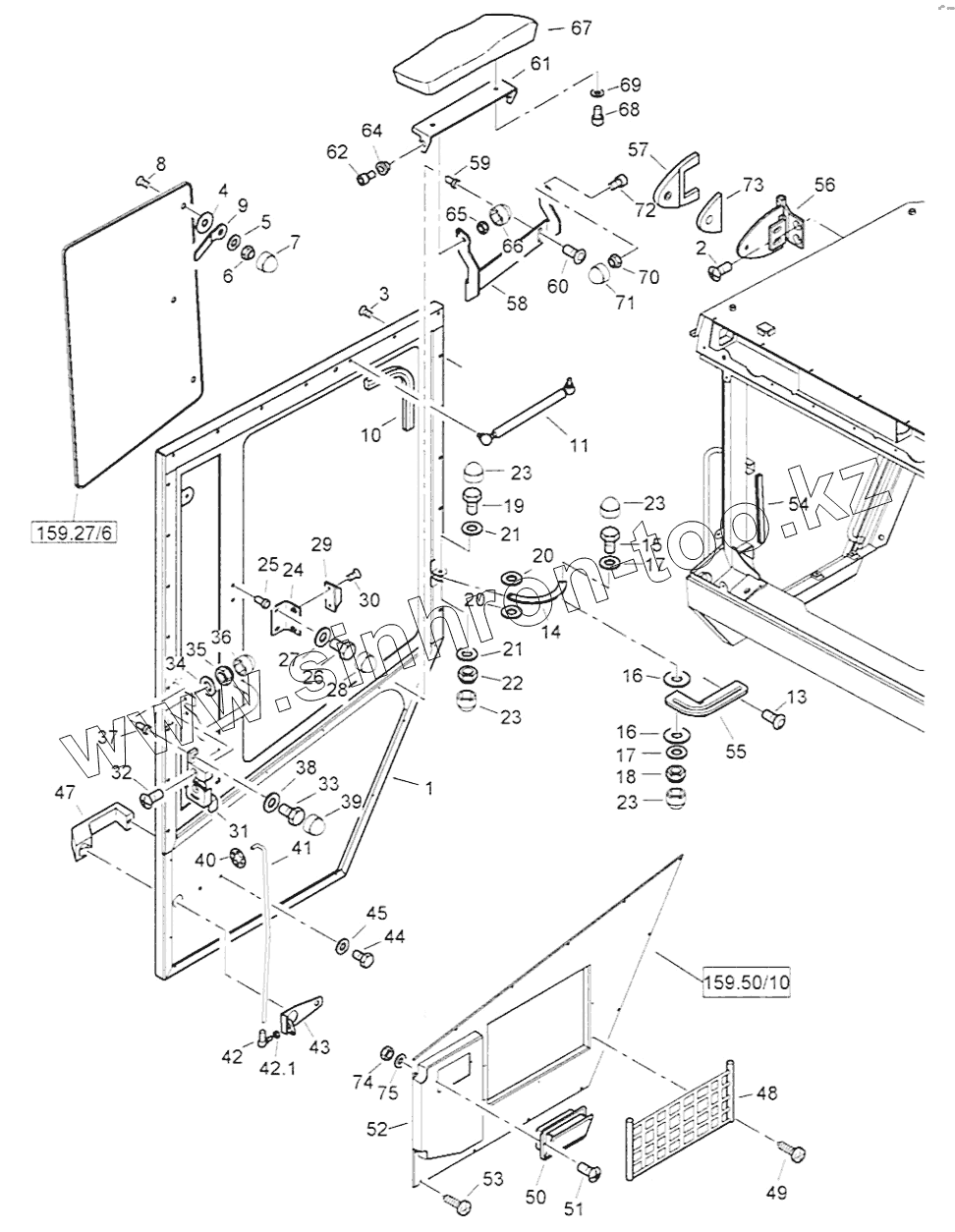

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 92008090 | Door | |
| 2 | 07320812 | Countersunk screw | |
| 3 | 07210896 | Lens head screw | |
| 4 | 32110269 | Plastic washer | |
| 5 | 08510817 | Washer | |
| 6 | 08130813 | Safety nut | |
| 7 | 06510175 | Protection cap | |
| 8 | 07320830 | Countersunk screw | |
| 9 | 58290267 | Handle | |
| 10 | 00652145 | Sealing section | |
| 11 | 05581123 | Gas spring | |
| 13 | 07210896 | Lens head screw | |
| 14 | 64420146 | Plate | |
| 15 | 07140846 | Hexagon bolt | |
| 16 | 32110433 | Washer | |
| 17 | 08510817 | Washer | |
| 18 | 08130813 | Safety nut | |
| 19 | 07140846 | Hexagon bolt | |
| 20 | 08810810 | Circlip | |
| 21 | 08510817 | Washer | |
| 22 | 08130813 | Safety nut | |
| 23 | 06510175 | Protection cap | |
| 24 | 92008119 | Holder | |
| 25 | 05990050 | Nut,blind | |
| 26 | 07140626 | Hexagon bolt | |
| 27 | 08751064 | Spring washer | |
| 28 | 06510174 | Protection cap | |
| 29 | 87500164 | Claw | |
| 30 | 07320608 | Countersunk screw | |
| 31 | 05932124 | Lock | |
| 32 | 07320825 | Countersunk screw | |
| 33 | 07140626 | Hexagon bolt | |
| 34 | 08510818 | Washer | |
| 35 | 08130813 | Safety nut | |
| 36 | 06510175 | Protection cap | |
| 37 | 05990050 | Nut,blind | |
| 38 | 08751064 | Spring washer | |
| 39 | 06510174 | Protection cap | |
| 40 | 08440510 | Quick fastener | |
| 41 | 92008123 | Round steel bar | |
| 42 | 09812100 | Angular joint | |
| 43 | 32110086 | Reversing lever | |
| 44 | 07140622 | Hexagon bolt | |
| 45 | 08751064 | Spring washer | |
| 47 | 32110266 | Push button handle | |
| 48 | 32110420 | Document net | |
| 49 | 07813903 | Parker screw | |
| 50 | 05571263 | Ash tray | |
| 51 | 07310516 | Countersunk screw | |
| 53 | 07813916 | Parker screw | |
| 54 | 00652145 | Sealing section | |
| 55 | 92008109 | Plate | |
| 55 | 08130813 | Safety nut | |
| 56 | 05939162 | Hinge | |
| 57 | 92008063 | Cover | |
| 58 | 92008117 | Plate | |
| 59 | 05990051 | Nut,blind | |
| 60 | 07210896 | Lens head screw | |
| 61 | 92008118 | Plate | |
| 62 | 07210896 | Lens head screw | |
| 64 | 06281208 | Bushing | |
| 66 | 06510175 | Protection cap | |
| 67 | 57260358 | Arm rest | |
| 68 | 07230693 | Socket-head cap screw | |
| 69 | 08751064 | Spring washer | |
| 70 | 08130611 | Safety nut | |
| 71 | 06510174 | Protection cap | |
| 72 | 07230693 | Socket-head cap screw | |
| 73 | 92008064 | Gasket | |
| 74 | 08110508 | Hexagon nut | |
| 75 | 08510511 | Washer |
