Каталог запасных частей к технике: BOMAG BW 24R. Engine
1
2
3
3
4
5
6
7
7
8
8
8
8
8
8
9
9
9
10
11
11
12
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
25
26
28
29
30
31
32
33
34
35
36
36
36
36
37

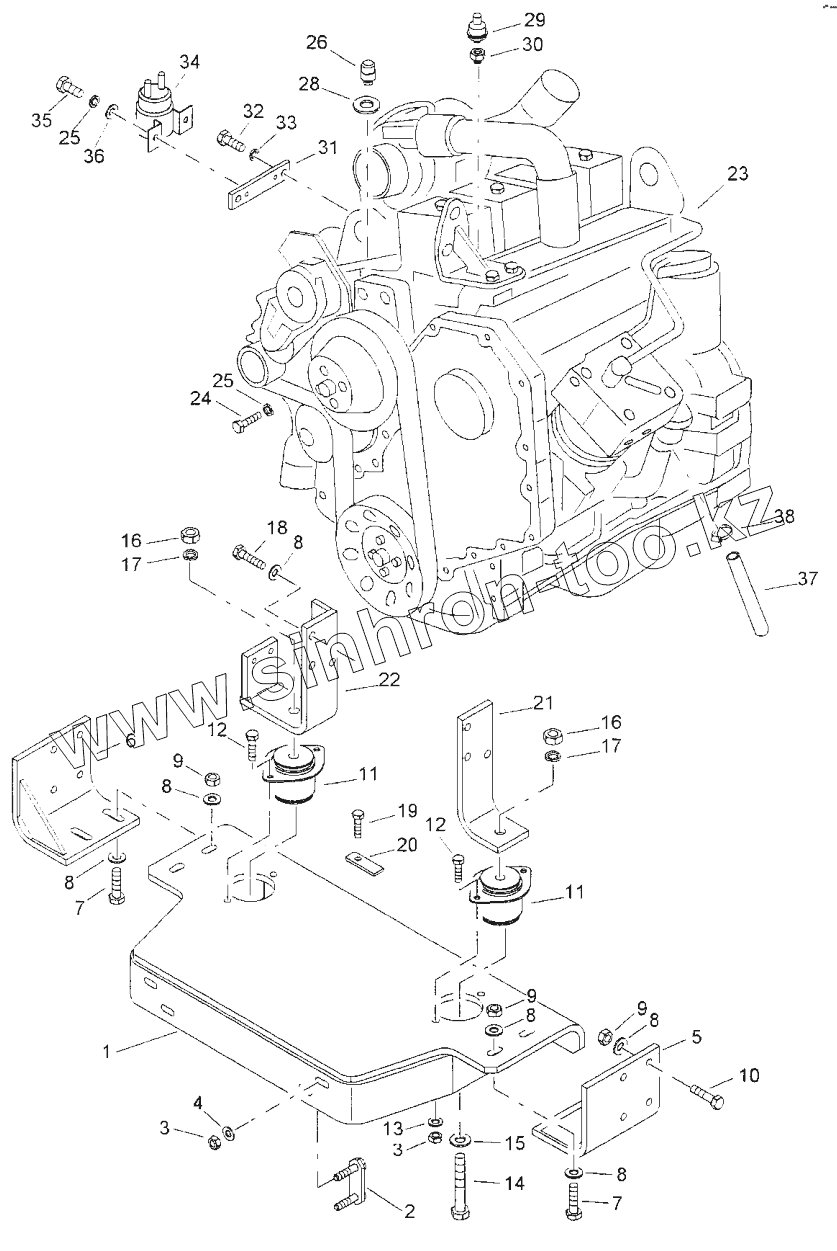

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 38052318 | Support | |
| 2 | 38051095 | Plate | |
| 3 | 38051316 | Hexagon nut | |
| 4 | 38051249 | Washer | |
| 5 | 38051034 | Holder | |
| 6 | 38051035 | Holder | |
| 7 | 38051174 | Hexagon bolt | |
| 8 | 38051250 | Washer | |
| 9 | 38051315 | Hexagon nut | |
| 10 | 38051175 | Hexagon bolt | |
| 11 | 38051773 | Rubber block | |
| 12 | 07141030 | Hexagon bolt | |
| 13 | 08511021 | Washer | |
| 14 | 38051177 | Hexagon bolt | |
| 15 | 38011352 | Washer | |
| 16 | 38051192 | Hexagon nut | |
| 17 | 38051252 | Washer | |
| 18 | 07141238 | Hexagon bolt | |
| 19 | 38051183 | Hexagon bolt | |
| 20 | 38011153 | Lead | |
| 21 | 38051015 | Holder | |
| 22 | 38051100 | Holder | |
| 23 | 31710037 | Diesel engine | |
| 24 | 38051221 | Hexagon bolt | |
| 25 | 08530815 | Spring washer | |
| 26 | 38010307 | Feeler | |
| 28 | 09331128 | Sealing ring | |
| 29 | 38051666 | Pressure switch | |
| 30 | 38051246 | Reducer | |
| 31 | 38051126 | Holder | |
| 32 | 07141224 | Hexagon bolt | |
| 33 | 38052030 | Clamp | |
| 34 | 38051798 | Starter switch | |
| 35 | 38051203 | Hexagon bolt | |
| 36 | 08510817 | Washer | |
| 36 | 38011163 | Clamp | |
| 37 | 38051737 | Hose |
