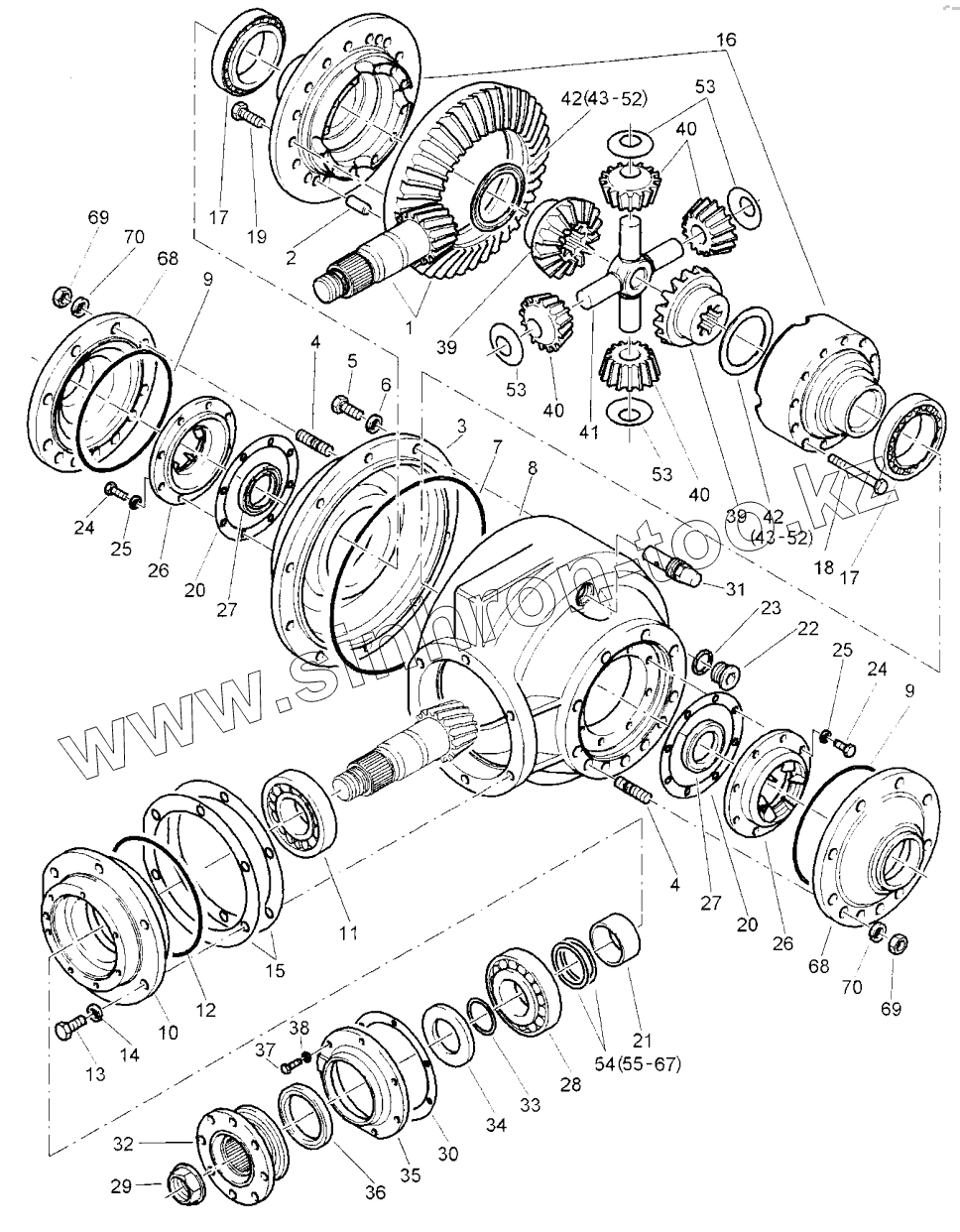

Каталог запасных частей к технике: BOMAG BW 24R. Differential

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
22
23
24
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
40
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
68
69
69
70
70
Позиция на иллюстрации Заводской номер детали Название детали
1 05901120 Bevel gear
2 05901121 Pin,cylindric
3 05901122 Housing cover
4 07596616 Pin screw
5 05901123 Hexagon bolt
6 05901175 ring
7 05901124 0-ring
8 05901125 differential housing
9 06221803 Loop ring
10 05901126 Axle journal
11 05901127 Taper roller bearing
12 05901128 O-ring
13 05901123 Hexagon bolt
14 05901175 ring
15 05901176 Kit
16 05901130 differential housing
17 05901131 Taper roller bearing
18 05901132 Hexagon bolt
19 05901133 Screw
20 05901177 Kit
21 05901178 Spacer bush
22 05901134 Screw
23 05901135 Sealing ring
24 05901136 Hexagon bolt
25 05901179 Ring
26 05901137 Cover
27 05901581 Radial seal
28 05901127 Taper roller bearing
29 05901138 Nut
30 05901139 Gasket
31 05901140 Breather
32 05901141 Cardanic flange
33 05901142 O-ring
34 05901143 Washer
35 05901144 Cover
36 05901582 Radial seal
37 05901145 Hexagon bolt
38 05901180 ring
39 05901181 differential bevel gear
40 05901146 Planetary gear
41 05901147 Cross pin
42 05901182 Kit
43 05901148 Stop disc
44 05901715 Stop disc
45 05901149 Stop disc
46 05901710 Stop disc
47 05901150 Stop disc
48 05901151 Stop disc
49 05901152 Stop disc
50 05901153 Stop disc
51 05901154 Stop disc
52 05901155 Stop disc
53 05901156 Thrust disc
54 05901183 Kit
55 05901157 Set shim
56 05901158 Set shim
57 05901159 Set shim
58 05901160 Set shim
59 05901161 Set shim
60 05901162 Set shim
61 05901163 Set shim
62 05901174 Set shim
63 05901165 Set shim
64 05901166 Set shim
65 05901167 Set shim
66 05901168 Set shim
67 05901169 Set shim
68 05901170 Flange
69 05901171 Hexagon nut
70 05901184 Ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
