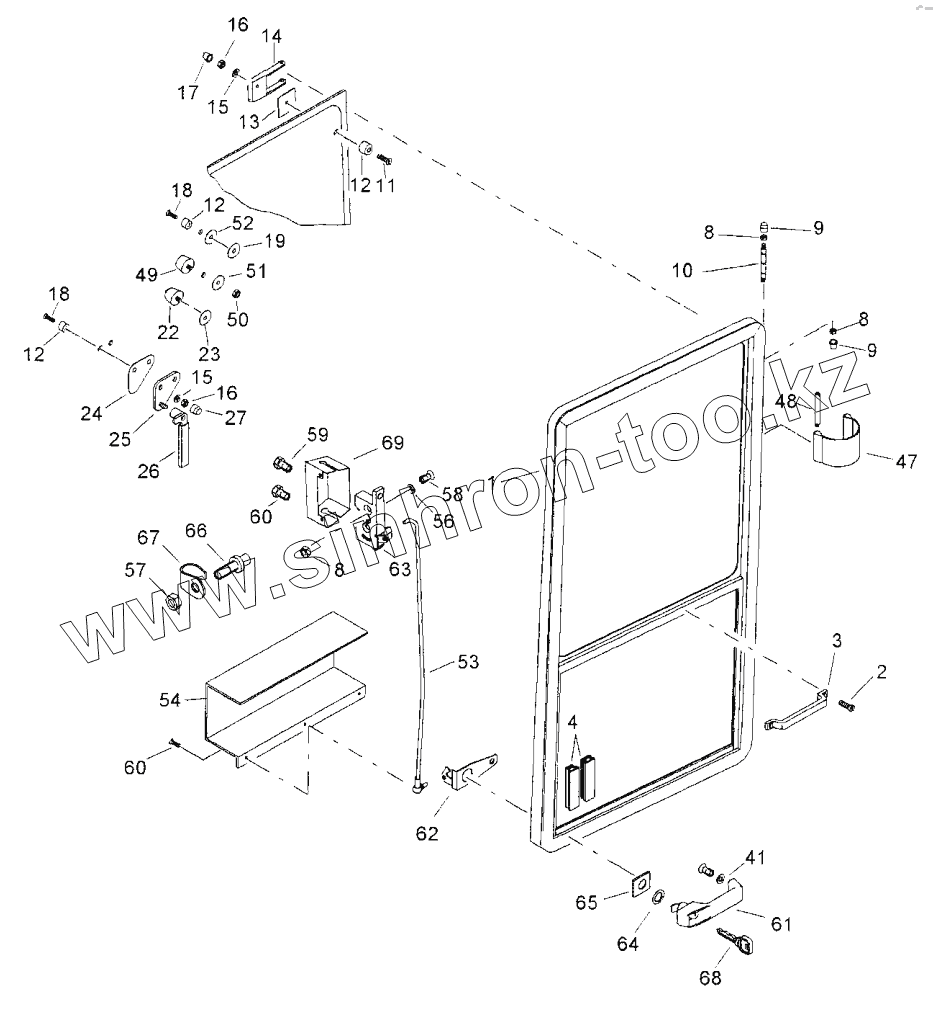

Каталог запасных частей к технике: BOMAG BW 24R. Cab with heating
1
2
3
4
8
8
8
9
9
10
11
12
12
12
13
14
15
15
16
16
17
18
18
19
22
23
24
25
26
27
41
47
48
49
50
51
52
53
54
56
57
58
59
60
60
61
62
63
64
65
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 38052092 | Door | |
| 2 | 38051213 | Hexagon bolt | |
| 3 | 38051735 | Holder | |
| 4 | 00653027 | Sealing section | |
| 8 | 38051240 | Hexagon nut | |
| 9 | 38051741 | Cover | |
| 10 | 38051355 | Journal | |
| 11 | 38051229 | Hexagon bolt | |
| 12 | 38051738 | Washer | |
| 13 | 38051358 | Washer | |
| 14 | 38052130 | Holder | |
| 15 | 08510817 | Washer | |
| 16 | 38051241 | Hexagon nut | |
| 17 | 38051739 | Cover | |
| 18 | 38051233 | Hexagon bolt | |
| 19 | 38010686 | Washer | |
| 20 | 38051745 | Rubber buffer | |
| 22 | 38051780 | Pin | |
| 23 | 38051359 | Washer | |
| 24 | 38051365 | Washer | |
| 25 | 38051364 | Clamp | |
| 26 | 38051357 | Lever | |
| 27 | 38051739 | Cover | |
| 39 | 38051256 | Cover | |
| 40 | 38051226 | Hexagon bolt | |
| 41 | 08530612 | Spring washer | |
| 47 | 38052285 | Clamping band | |
| 48 | 38052131 | Journal | |
| 49 | 38051745 | Rubber buffer | |
| 50 | 38052132 | Nut | |
| 51 | 38052133 | Base | |
| 52 | 38052134 | Base | |
| 53 | 38052151 | Draw bar | |
| 54 | 38052153 | Cover | |
| 56 | 38052155 | Washer | |
| 57 | 38052156 | Nut | |
| 58 | 38052157 | Screw | |
| 59 | 38052158 | Screw | |
| 60 | 38052159 | Screw | |
| 61 | 38052160 | Handle | |
| 62 | 38052162 | Lever | |
| 63 | 38052164 | Lock | |
| 64 | 38052166 | Washer | |
| 65 | 38052167 | Washer | |
| 66 | 38052168 | Journal | |
| 67 | 38052169 | Cover | |
| 68 | 38052170 | Key | |
| 69 | 38052172 | Cover |
