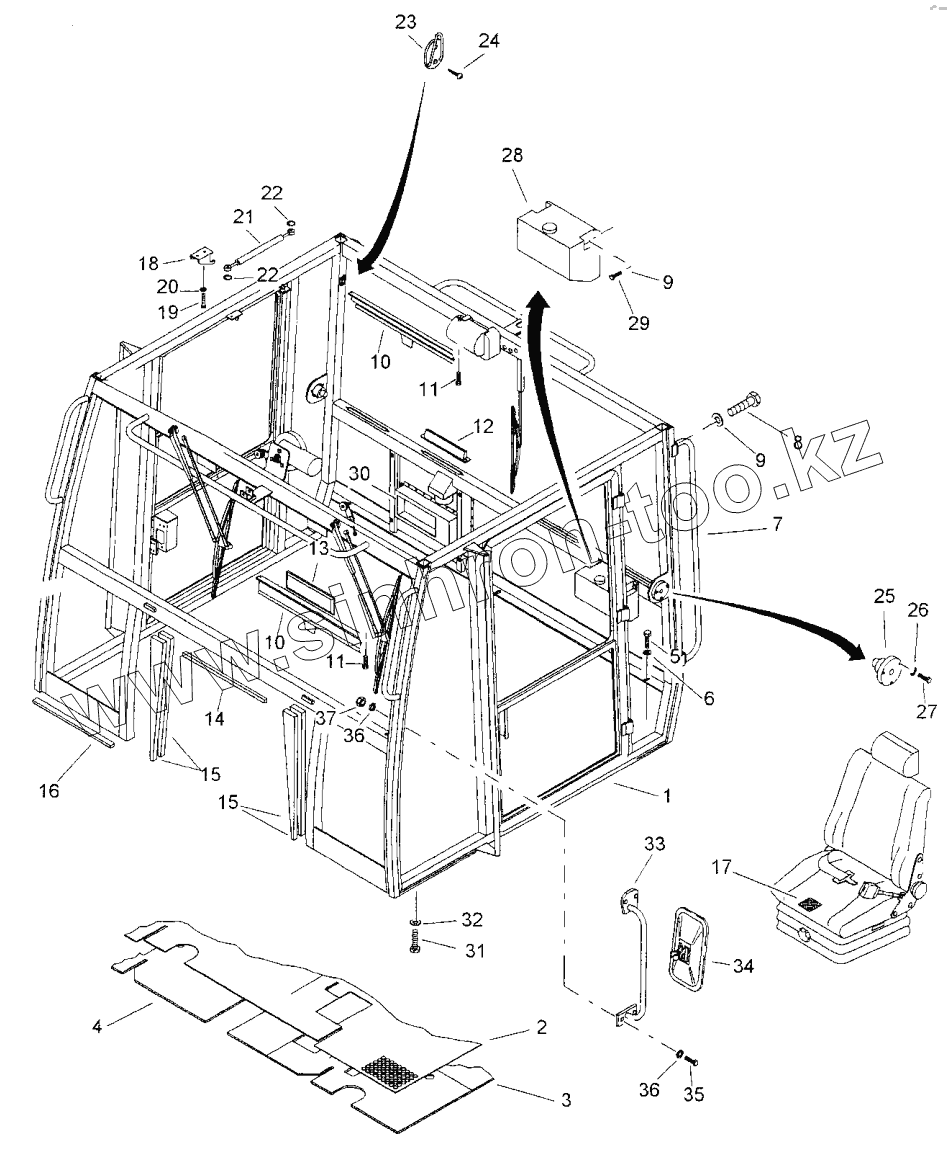

Каталог запасных частей к технике: BOMAG BW 24R. Cab with heating
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 38052090 | Cabin | |
| 2 | 38051164 | Floor mat | |
| 3 | 38051142 | Insulation | |
| 4 | 38051141 | Insulation | |
| 5 | 07141233 | Hexagon bolt | |
| 6 | 08511324 | Washer | |
| 7 | 38051080 | Hoider | |
| 8 | 07140824 | Hexagon bolt | |
| 9 | 08510817 | Washer | |
| 10 | 38052091 | Sun shade | |
| 11 | 38051209 | Hexagon bolt | |
| 12 | 38051767 | Fan | |
| 13 | 38051512 | Mirror | |
| 14 | 38051695 | Gasket | |
| 15 | 38051401 | Seal | |
| 16 | 38051697 | Adhesive tape | |
| 17 | 38052283 | Seat coating | |
| 18 | 38051740 | Cover | |
| 19 | 38010665 | Screw | |
| 20 | 08510511 | Washer | |
| 21 | 38011213 | Gas spring | |
| 22 | 09210201 | Circlip,external | |
| 23 | 38051766 | Deposit rack | |
| 24 | 38051237 | Hexagon bolt | |
| 25 | 38051781 | Holder | |
| 26 | 08530612 | Spring washer | |
| 27 | 07140641 | Hexagon bolt | |
| 28 | 38051578 | Wiper installation | |
| 29 | 38051203 | Hexagon bolt | |
| 30 | 38051733 | Belt | |
| 31 | 07141030 | Hexagon bolt | |
| 32 | 08511021 | Washer | |
| 33 | 38052136 | Holder | |
| 34 | 38052137 | Mirror | |
| 35 | 38052135 | Screw | |
| 36 | 08530612 | Spring washer | |
| 37 | 08110620 | Hexagon nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
