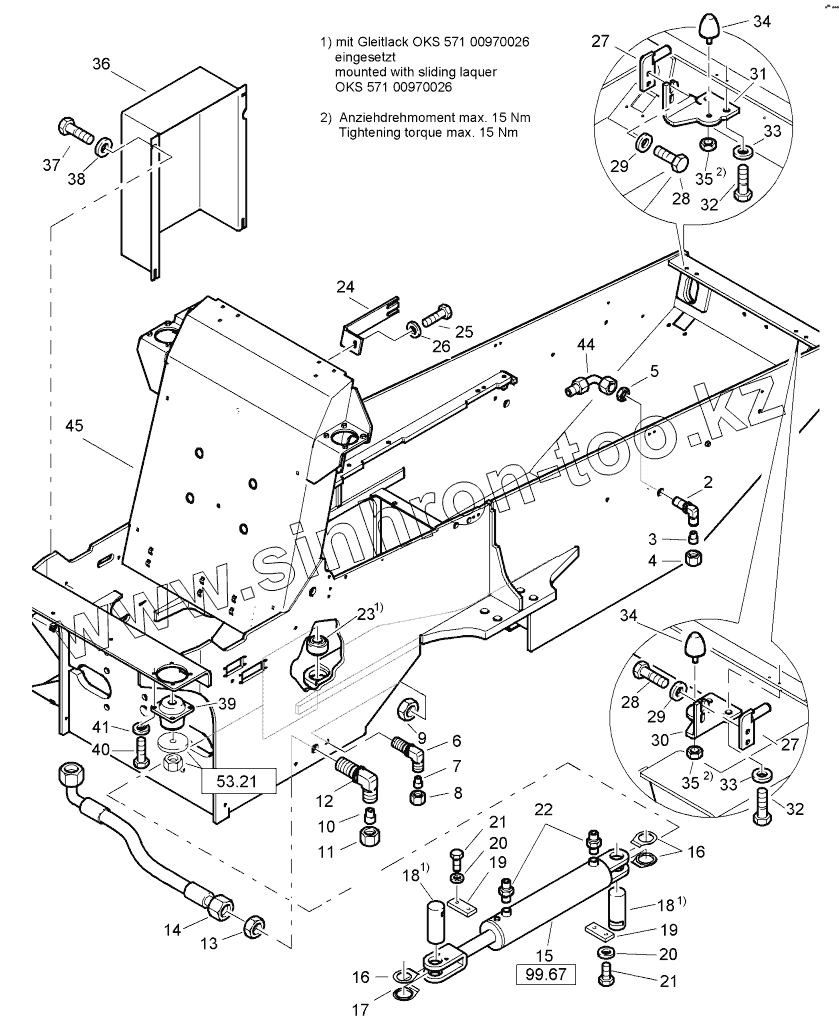

Каталог запасных частей к технике: BOMAG BW 211D-40. Rear Frame
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
19
20
20
21
21
22
23
24
25
26
27
27
28
28
29
29
30
31
32
32
33
33
34
34
35
35
36
37
38
39
40
40
41
41
44
44
45
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 05542656 | Angular union | |
| 3 | 05542706 | Plug | |
| 4 | 05545028 | Cap nut | |
| 5 | 05542926 | Nut | |
| 6 | 05542653 | Angular union | |
| 7 | 05542703 | Plug | |
| 8 | 05545020 | Cap nut | |
| 9 | 05542916 | Nut | |
| 10 | 05542707 | Plug | |
| 11 | 05545032 | Cap nut | |
| 12 | 05542657 | Angular union | |
| 13 | 05542930 | Nut | |
| 14 | 05550662 | Hose assy.ac. | |
| 15 | 05850030 | Steering cylinder | |
| 16 | 58040163 | Gasket | |
| 17 | 58040161 | Gasket | |
| 18 | 58050284 | Bolt | |
| 19 | 58050285 | Flat steel | |
| 20 | 08752084 | Spring washer | |
| 21 | 07140824 | Hexagon bolt | |
| 22 | 05540010 | Double-ended union | |
| 23 | 05272011 | Spherical plain bearing | |
| 24 | 58190432 | Holder | |
| 25 | 07141027 | Hexagon bolt | |
| 26 | 08752106 | Spring washer | |
| 27 | 58050666 | Holder | |
| 28 | 07140824 | Hexagon bolt | |
| 29 | 08752084 | Spring washer | |
| 30 | 58050667 | Angle | |
| 31 | 58050668 | Angle | |
| 32 | 07141027 | Hexagon bolt | |
| 33 | 08752106 | Spring washer | |
| 34 | 06143136 | Stop buffer | |
| 35 | 08110813 | Hexagon nut | |
| 36 | 58051008 | Cover | |
| 37 | 07140824 | Hexagon bolt | |
| 38 | 08510817 | Washer | |
| 39 | 06180308 | Rubber buffer | |
| 40 | 07141027 | Hexagon bolt | |
| 40 | 08650817 | Washer | |
| 41 | 08752106 | Spring washer | |
| 41 | 08650817 | Washer | |
| 44 | 08621084 | Washer | |
| 44 | 05542387 | Union extension | |
| 45 | 05542123 | Angular union | |
| 45 | 58051095 | Frame | |
| 46 | 05542127 | Angular union | |
| 48 | 07141030 | Hexagon bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
