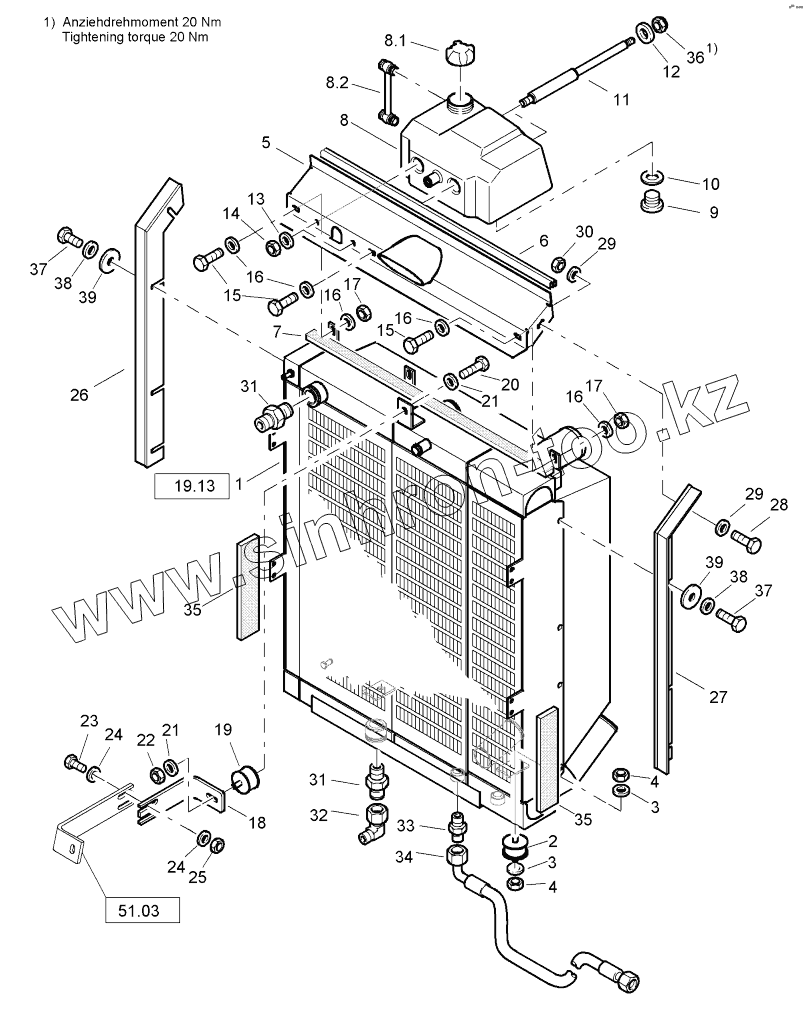

Каталог запасных частей к технике: BOMAG BW 211D-40. Radiator
1
2
3
3
4
4
5
6
7
8
8.1
8.2
9
10
11
12
13
14
15
15
16
16
16
16
17
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
29
30
31
31
32
33
34
35
35
36
39
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 05903205 | Radiator | |
| 2 | 06116081 | Rubber buffer | |
| 3 | 08752106 | Spring washer | |
| 4 | 08111016 | Hexagon nut | |
| 5 | 58190433 | Plate | |
| 6 | 00652122 | Sealing section | |
| 7 | 00652071 | Expanded rubber | |
| 8 | 06550084 | Compensation tank | |
| 8.1 | 06550045 | Radiator cap | |
| 8.2 | 06550086 | Filling level indicator | |
| 9 | 07636004 | Screw plug | |
| 10 | 06810341 | Gasket | |
| 11 | 58190454 | Bolt | |
| 12 | 69040261 | Washer | |
| 13 | 08752106 | Spring washer | |
| 14 | 08111016 | Hexagon nut | |
| 15 | 07140824 | Hexagon bolt | |
| 16 | 08752084 | Spring washer | |
| 17 | 08110813 | Hexagon nut | |
| 18 | 58190401 | Holder | |
| 19 | 06126011 | Rubber buffer | |
| 20 | 07141017 | Hexagon bolt | |
| 21 | 08752106 | Spring washer | |
| 22 | 08111016 | Hexagon nut | |
| 23 | 07141030 | Hexagon bolt | |
| 24 | 08752106 | Spring washer | |
| 25 | 08111016 | Hexagon nut | |
| 26 | 58190439 | Brush | |
| 27 | 58190440 | Brush | |
| 28 | 07140824 | Hexagon bolt | |
| 29 | 08752084 | Spring washer | |
| 30 | 08110813 | Hexagon nut | |
| 31 | 05540013 | Double-ended union | |
| 32 | 05542128 | Angular union | |
| 33 | 05540087 | Double-ended union | |
| 34 | 05554427 | Hose | |
| 35 | 00653020 | Sealing band | |
| 36 | 08130813 | Safety nut | |
| 39 | 08621084 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
