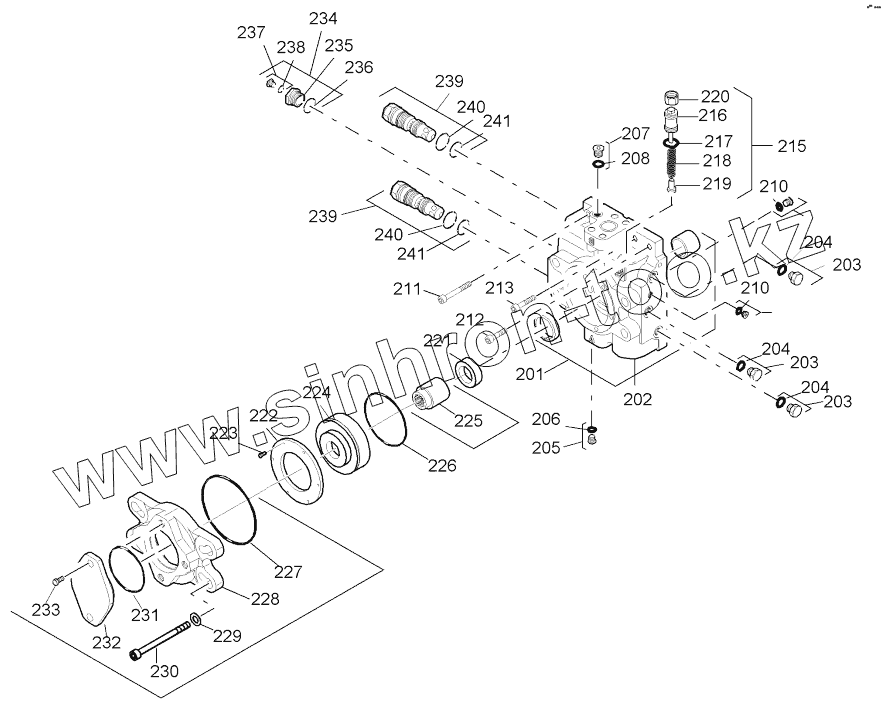

Каталог запасных частей к технике: BOMAG BW211D-40. Hydr.Pump,Travel System
201
202
203
203
203
204
204
204
205
206
207
208
210
210
211
212
213
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
239
240
240
241
241
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 201 | 05817446 | End housing | |
| 202 | 05818991 | End housing | |
| 203 | 05817155 | Screw plug | |
| 204 | 05817144 | Loop ring | |
| 205 | 05817389 | Screw plug | |
| 206 | 05817144 | Loop ring | |
| 207 | 05817389 | Screw plug | |
| 208 | 05817144 | Loop ring | |
| 210 | 32043059 | Loop ring | |
| 211 | 05817449 | Socket-head cap screw | |
| 212 | 05817383 | Socket-head cap screw | |
| 213 | 05817450 | Socket-head cap screw | |
| 214 | 32044002 | Washer | |
| 215 | 05817466 | Pressure relief valve | |
| 216 | 05817465 | Setscrew | |
| 217 | 31110610 | Loop ring | |
| 218 | 05817467 | Pressure spring | |
| 219 | 05817468 | Valve cone | |
| 220 | 05817469 | Hexagon nut | |
| 221 | 05817452 | Spacer piece | |
| 222 | 05817453 | ring | |
| 223 | 05817454 | Hexagon bolt | |
| 224 | 05817451 | Spacer ring | |
| 225 | 05818992 | Coupling sleeve | |
| 226 | 05817457 | Loop ring | |
| 227 | 05817458 | Loop ring | |
| 228 | 05817982 | Adapter | |
| 229 | 05817460 | Washer | |
| 230 | 05817592 | Socket-head cap screw | |
| 231 | 05817462 | Loop ring | |
| 232 | 05817463 | End cover | |
| 233 | 05817464 | Hexagon bolt | |
| 234 | 05817483 | Filter adapter | |
| 235 | 05817484 | Reducing fitting | |
| 236 | 05817485 | Loop ring | |
| 237 | 05817389 | Screw plug | |
| 238 | 05817144 | Loop ring | |
| 239 | 05817983 | Valve | |
| 240 | 32044005 | Loop ring | |
| 241 | 05817169 | Loop ring | |
| 243 | 05817486 | check valve No illustration | |
| 244 | 32043059 | Loop ring | |
| 245 | 05817487 | Plug | |
| 246 | 32043047 | Circlip | |
| 247 | 05817172 | Loop ring | |
| 248 | 32044002 | Washer | |
| 249 | 05817175 | Screw plug | |
| 249.1 | 0937825 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
