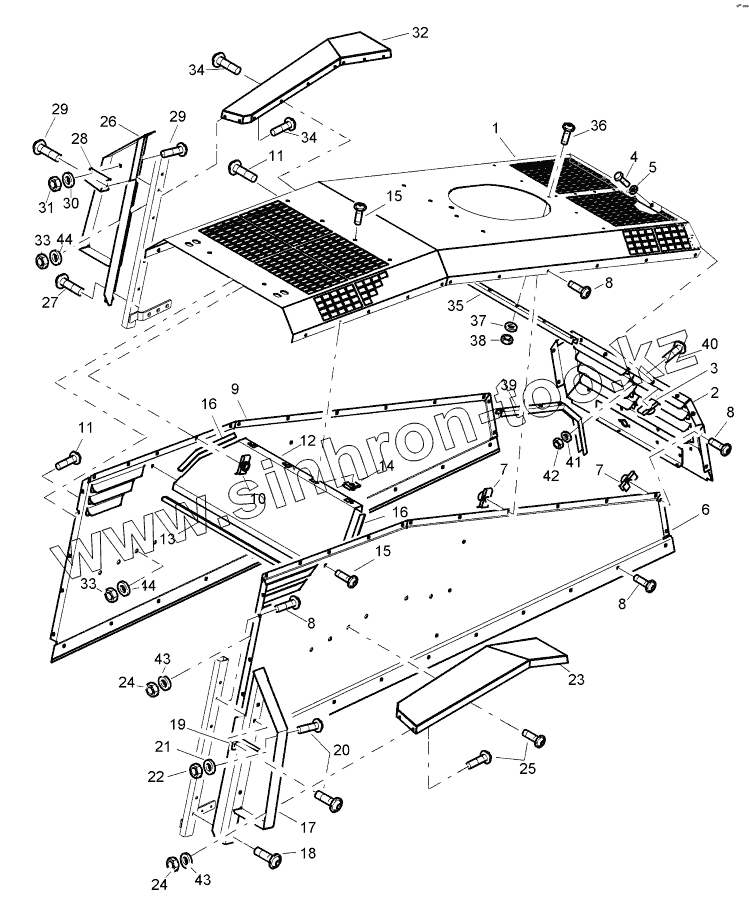

Каталог запасных частей к технике: BOMAG BW211D-40. Engine Hood
1
2
3
4
5
6
7
7
8
8
8
9
10
11
11
12
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 58070984 | Cover plate | |
| 2 | 58070985 | Cover plate | |
| 3 | 08430840 | Nut | |
| 4 | 07140818 | Hexagon bolt | |
| 5 | 08752084 | Spring washer | |
| 6 | 83211722 | Side piece lefthand | |
| 7 | 08430840 | Nut | |
| 8 | 07210895 | Lens head screw | |
| 9 | 83211723 | Side piece righthand | |
| 10 | 08430840 | Nut | |
| 11 | 07210895 | Lens head screw | |
| 12 | 58070960 | Air deflector panel | |
| 13 | 00652043 | Sealing section | |
| 14 | 08430840 | Nut | |
| 15 | 07210895 | Lens head screw | |
| 16 | 00652012 | Sealing section | |
| 17 | 83211720 | Guard | |
| 18 | 07210895 | Lens head screw | |
| 19 | 58070717 | Reinforcement | |
| 20 | 07210895 | Lens head screw | |
| 21 | 08752084 | Spring washer | |
| 22 | 08110813 | Hexagon nut | |
| 23 | 58070958 | Mud guard | |
| 24 | 08430840 | Nut | |
| 25 | 07210895 | Lens head screw | |
| 26 | 83211721 | Guard | |
| 27 | 07210895 | Lens head screw | |
| 28 | 58070717 | Reinforcement | |
| 29 | 07210895 | Lens head screw | |
| 30 | 08752084 | Spring washer | |
| 31 | 08110813 | Hexagon nut | |
| 32 | 58070959 | Mud guard | |
| 33 | 08430840 | Nut | |
| 34 | 07210895 | Lens head screw | |
| 35 | 58070993 | Angle | |
| 36 | 07210895 | Lens head screw | |
| 37 | 08752084 | Spring washer | |
| 38 | 08110813 | Hexagon nut | |
| 39 | 58070994 | Angle | |
| 40 | 07210895 | Lens head screw | |
| 41 | 08752084 | Spring washer | |
| 42 | 08110813 | Hexagon nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
