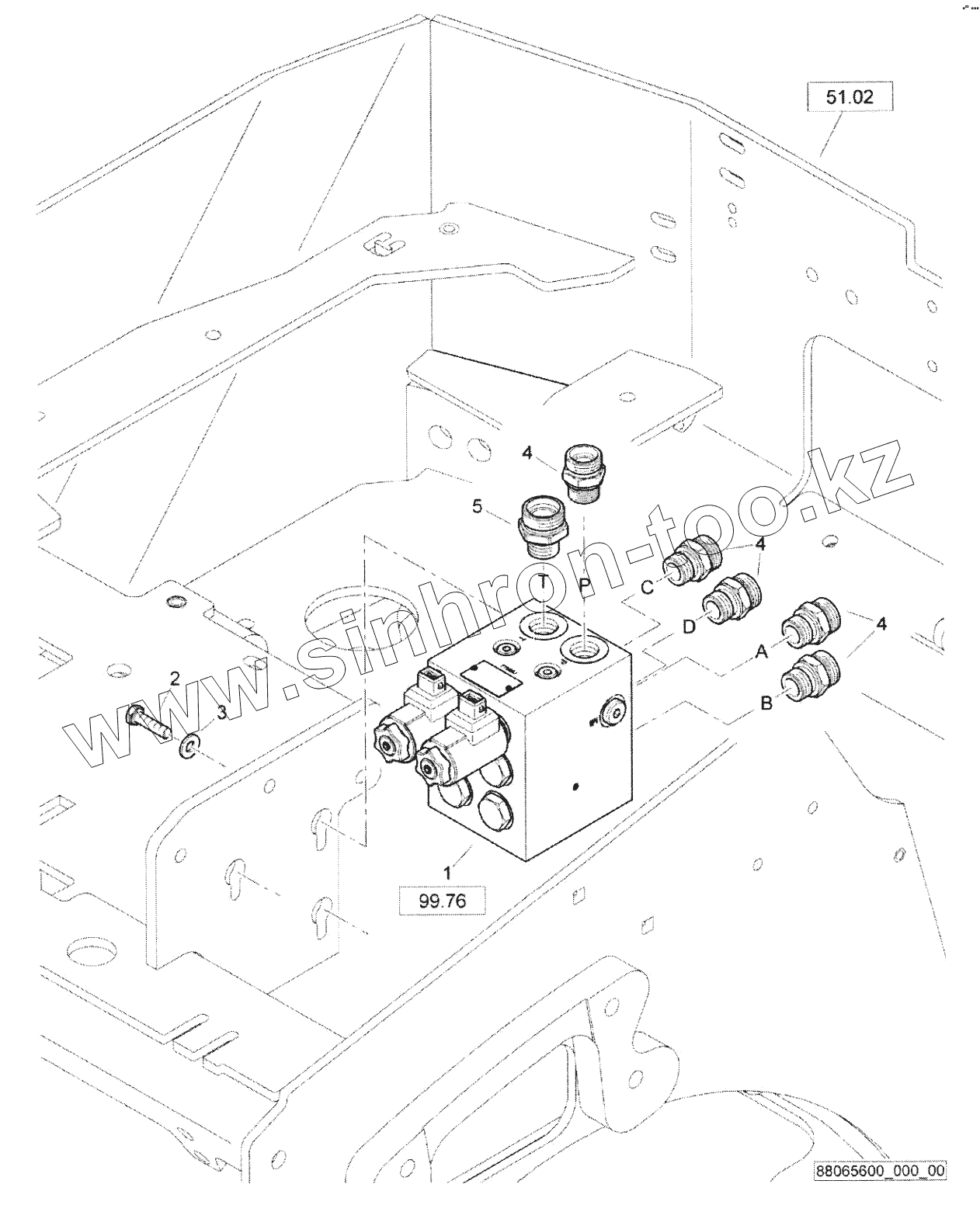

Каталог запасных частей к технике: BOMAG BW120AD-5. Vibration Valve

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BC772RB-2 (2017) BF 300 C S340 TV BM1300-30-2 (2011) BW 211D-40 BW 24R (2007) BW 24RH (2012) BW120AD-5 (2017) BW211D-40 (2007)

Схема > Не выбрано Engine Parts List Crankcase Crankcase Front Cover Oil Pan Oil Pan Cylinder Head Cylinder Head Control Pieces Lubrication Oil Pump Oil And Fuel Filter Injection Pump Injection Pump Suction Pipe And Exhaust Preheating System Measuring Instruments Engine Shut Off Engine Shut Off Water Cooling Water Cooling Governor Governor Generator Starter Fuel system Fuel system Fuel system Fuel system Engine Engine Engine Pump Mounting Pump Mounting Air Filter Exhaust System Radiator, water and oil Radiator, water and oil Radiator, water and oil Radiator, water and oil Radiator, assembled Radiator, assembled Fuel Prefilter Dry Air Filter Clutch Clutch Actuation Actuation Operating console, assembled Operating console, assembled Operating console, assembled Stop, assembled РЎontrol handle, right Steering Steering Osciliat.Articuiat. Joint Oscillat. articul. joint, ass. Front Frame Front Frame Front Frame Front Frame Front Frame Front Frame Rear Frame Rear Frame Pressure water sprink.sys Pressure water sprink.sys Pressure water sprink.sys Deckel, montiert Emulsion tank, assembled Operators Platform Operators Platform Operators Platform Engine Hood Operator's Seat Hydraulic Tank Hydraulic Oil Filter Scraper Scraper Scraper Scraper Scraper, assembled Fuel tank, assembled Nozzle tube, assembled Water tank, assembled Water pump, assembled Tension spring, assembled Hydraulic oil tank, assembled Operator's Seat Water Pump Roller drum Roller drum, assembled Instruments Central electric Battery Central electric, assembled Central electric, assembled Central electric, assembled Instruments, assembled Dash board, assembled Wire harnesses Wire harnesses Wire harnesses Hydraulic, travel system Hydraulic, travel system Brake Actuation Hydraulic, steering Hydraulics, vibration Hydraulics, vibration Hydraulics, vibration Vibration Valve Hydraulics, charge system Hydraulics, charge system Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Pump, Travel System Hydr.Motor, Vibration Gear pump Filter, Hydraulic Oil Steering Cylinder Vibration Valve Decals Double travel lever, assembled Operating console, assembled Operating console, assembled Operating console, assembled Operating console, assembled Control handle, left Control handle, right FS3-Burglary protection S3-Sun roof S3-Sun roof S3-Sun roof S3-Sun roof S3-Sun roof S3-Sun roof S19-ROPS, hinged S19-ROPS, hinged FS33-Sliding seat plus extras FS33-Sliding seat plus extras AD4-Cover E2-Lighting-Stvzo E2-Lighting-Stvzo E16-Rotary beacon E16-Rotary beacon E16-Rotary beacon E60-Broad spectrum buzzer E26-Battery disconnec, switch Instruments, assembled AZ14-Temperature gauge VM25-Economizer+В°C/В°F-display VM25-Economizer+X/В°F-display VM25-Economizer+0C/0F-display

1

2

3

4

4

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
1	05878199		Vibration valve
2	07140834		Hexagon bolt
3	08752084		Spring washer
4	05540011		Double-ended union
5	05548005		Socket

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
