Каталог запасных частей к технике: BOMAG BM1300-30-2. Feeding boom belt
1
1
1
1
1
1
1
1
2
3
3
4
5
6
7
8
8.1
8.1
8.2
8.2
8.3
8.3
8.4
8.4
8.5
8.5
8.6
8.7
8.7
8.8
8.8
8.9
8.10
8.11
8.12
8.13
8.14
8.15
8.15
8.16
8.17
8.18
8.19
9
11
12
13
14

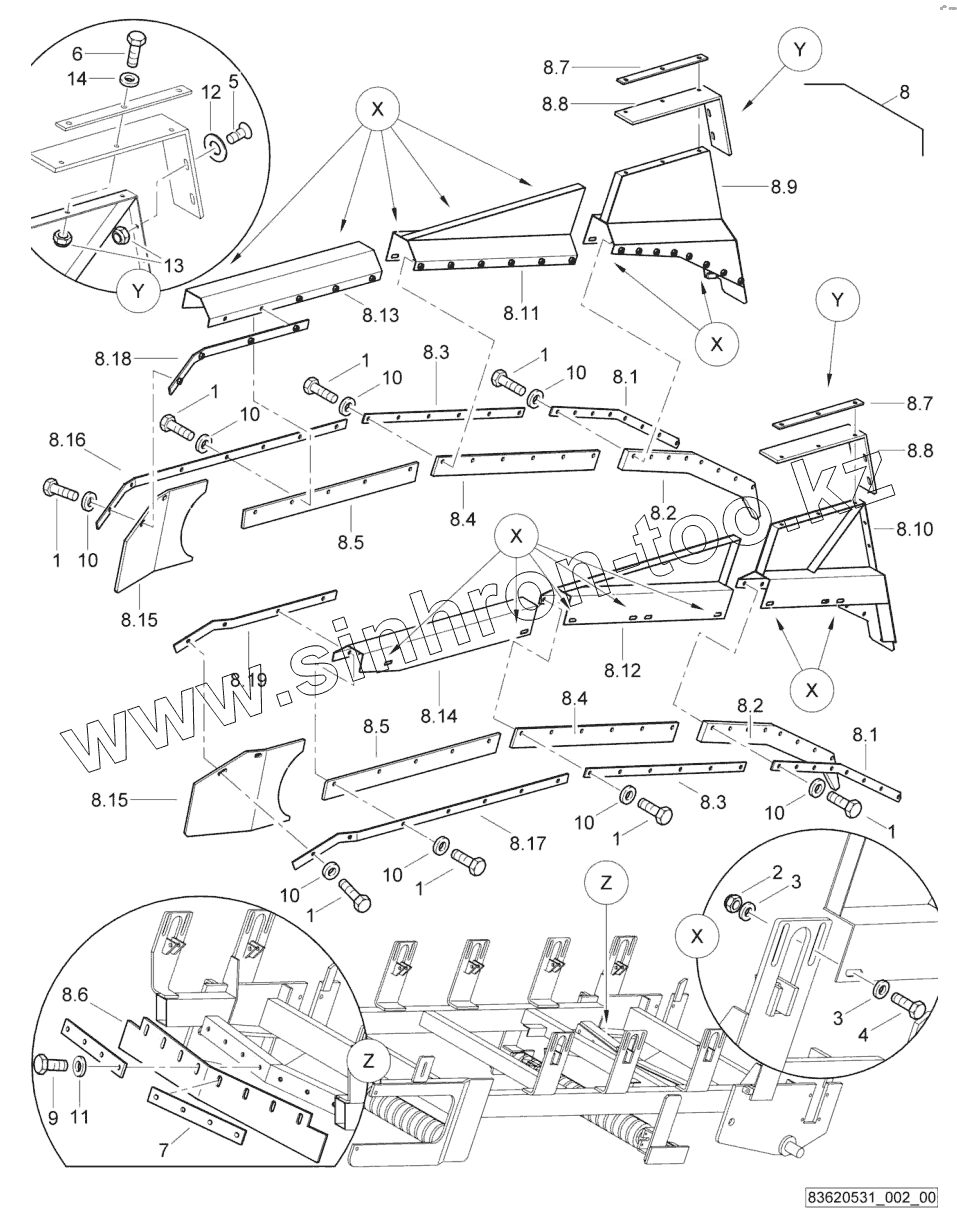

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 07141032 | Hexagon bolt | |
| 2 | 08131004 | Safety nut | |
| 3 | 08752130 | Spring washer | |
| 4 | 07141242 | Hexagon bolt | |
| 5 | 07140848 | Hexagon bolt | |
| 6 | 07320827 | Countersunk screw | |
| 7 | D232201305 | Rubber holding plate | |
| 8 | D2322014 | Apron | |
| 8.1 | D232201408 | Rubber holding plate | |
| 8.2 | D232201409 | Burr | |
| 8.3 | D232201410 | Rubber holding plate | |
| 8.4 | D232201411 | Burr | |
| 8.5 | D232201416 | Burr | |
| 8.6 | D232201418 | Rubber plate | |
| 8.7 | D232201422 | Rubber holding plate | |
| 8.8 | D232201423 | Rubber apron | |
| 8.9 | D2322014A1 | Safety railing | |
| 8.10 | D2322014A2 | Safety railing | |
| 8.11 | D2322014B1 | Protection railing, middle | |
| 8.12 | D2322014B2 | Protection railing, middle | |
| 8.13 | D2322014C1 | Safety railing | |
| 8.14 | D2322014C2 | Safety railing | |
| 8.15 | 83620471 | Rubber apron | |
| 8.16 | D2322014E1 | Rubber holding plate | |
| 8.17 | D2322014E2 | Rubber holding plate | |
| 8.18 | D2322014F1 | Rubber holding plate | |
| 8.19 | D2322014F2 | Rubber holding plate | |
| 9 | 07141032 | Hexagon bolt | |
| 11 | 08752106 | Spring washer | |
| 12 | 08752106 | Spring washer | |
| 13 | 08621003 | Washer | |
| 14 | 08131002 | Safety nut | |
| 15 | 08752084 | Spring washer |
