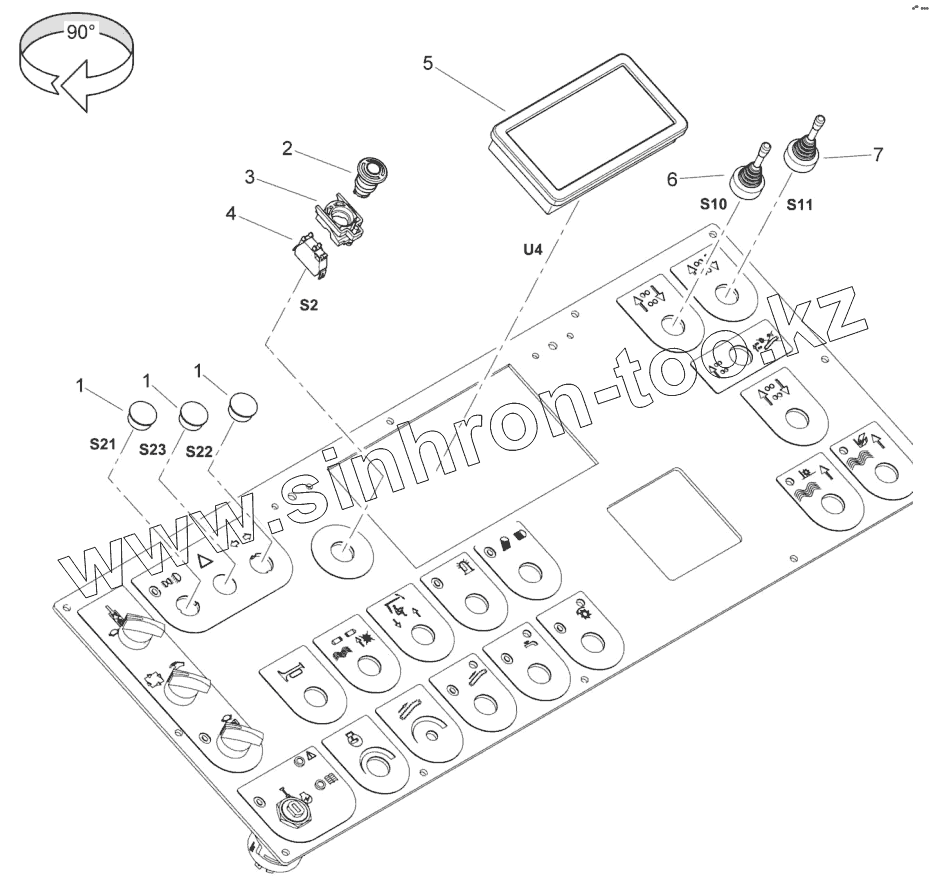

Каталог запасных частей к технике: BOMAG BM1300-30-2. Dashboard

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BC772RB-2 (2017) BF 300 C S340 TV BM1300-30-2 (2011) BW 211D-40 BW 24R (2007) BW 24RH (2012) BW120AD-5 (2017) BW211D-40 (2007)

Схема > Не выбрано Engine Engine Engine Engine Engine Engine Pump mounting Pump mounting Pump mounting Pump mounting Belt tensioner Fuel system Radiator, assembled Radiator, assembled Radiator, assembled Radiator, assembled Air filter, assembled Exhaust System Feeding boom belt Feeding boom belt Feeding boom belt Feeding boom belt Feeding boom belt Discharge belt Discharge belt Discharge belt Discharge belt Discharge belt Discharge belt Discharge belt Discharge belt Discharge belt Feweder funnel Discharge belt, suspension Discharge belt, suspension Height adjustment / steering Height adjust./under carriage Height adjust./under carriage Height adjust./under carriage Height adjust./under carriage Height adjust./under carriage Steering Steering Steering Steering Steering Steering Steering Steering Raupenfahrwerk Raupenfahrwerk Raupenfahrwerk Milling drum Milling drum Milling drum Milling drum Milling unit accessories Milling unit accessories Milling unit accessories Milling unit accessories Milling unit accessories Milling unit accessories Side piece right Side piece left Milling drum housing Milling drum housing Milling drum housing Milling drum housing Milling drum housing Milling drum housing Milling drum housing Milling drum housing Milling drum housing Hold-down Water sprinkler system Water sprinkler system Water sprinkler system Water sprinkler system Water pump, installation Locks and doors Locks and doors Locks and doors Locks and doors Locks and doors Locks and doors Locks and doors Locks and doors Locks and doors Access steps Operator's seat Operator's seat Vandalism protection Vandalism protection Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Frame Hoods Hoods Hoods Hoods Hoods Hoods Hoods Hoods Hoods Hoods Pedestal Fork Pillow block Pillow block Fuel tank Water tank Hydraulic oil tank Hydraulic oil tank Hydraulic oil tank Hydraulic oil tank Decals Decals Decals Decals Decals Lateral control panels Lateral control panels Lateral control panels Lateral control panels Lateral control panels Control panel Control panel Control panel Control panel Control panel Dashboard Dashboard Dashboard Dashboard Dashboard Dashboard Dashboard Dashboard Right arm rest, assembled Right arm rest, assembled Right arm rest, assembled Right arm rest, assembled Battery Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electric control cabinet Electrical equipment Electrical equipment Electrical equipment Electrical equipment Electrical equipment Wire harness Wire harness Wire harness Wire harness Wire harness Wire harness Wire harness Wire harness Wire harness Valve Valve Valve Valve Valve Valve Valve Valve Valve Hydraulic system plate Hydraulic system plate Hydraulic system plate Hydraulic system plate Ventilblock Betrieb Ventilblock Betrieb Ventilblock Betrieb Hydraulic oil filter Hydraulic oil filter Hydr. Anl. Rohre und Zylinder Hydr.,discharge belt up/swivel Hydraulic system, belts Hydraulic, height adjustment Hydraulic, height adjustment Hydraulic, front steering Hydraulic, front steering Hydraulic, rear steering Hydraulic, travel system Hydr. emergency steering Hydraulic, scraper flap Hydraulic, lateral levelling Hydraulic, lateral levelling Hydraulic, lateral levelling Hydraulik Niederhalter Hydraulic, cooler Hydraulic, coupling Emergency hydraulics Akkumulator Kupplung FO13-Diesel refilling pump FO20-Free floating conveyor FO7-Pneumatic tool teeth FO7-Pneumatic tool teeth FO7-Pneumatic tool teeth FO7-Pneumatic tool teeth FO3-Water filling system FO3-Water filling system FO3-Water filling system FO3-Water filling system FO2-High pressure cleaner FO2-High pressure cleaner FO2-High pressure cleaner FO2-High pressure cleaner FO2-High pressure cleaner FO2-High pressure cleaner FO1-Protection roof FO1-Protection roof FO1-Protection roof FO1-Protection roof FO1-Protection roof FO1-Protection roof Roof, assembled Roof, assembled Roof, assembled FO24-Seat for service FO25-Panorama mirror FO25-Panorama mirror FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration FO12-Kit road registration E51-Generator 230V/50Hz Clutch Transmission Transmission Transmission Water Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Motor Steering Valve

1

1

1

2

3

4

5

6

7

Позиция на иллюстрации	Заводской номер детали		Название детали
1	06510177		Cover
2	05762306		Front element
3	05762300		Fastening flange
4	05762301		Switch,normally closed
5	424030233		Board
6	05762312		Control switch
7	05762312		Control switch

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
