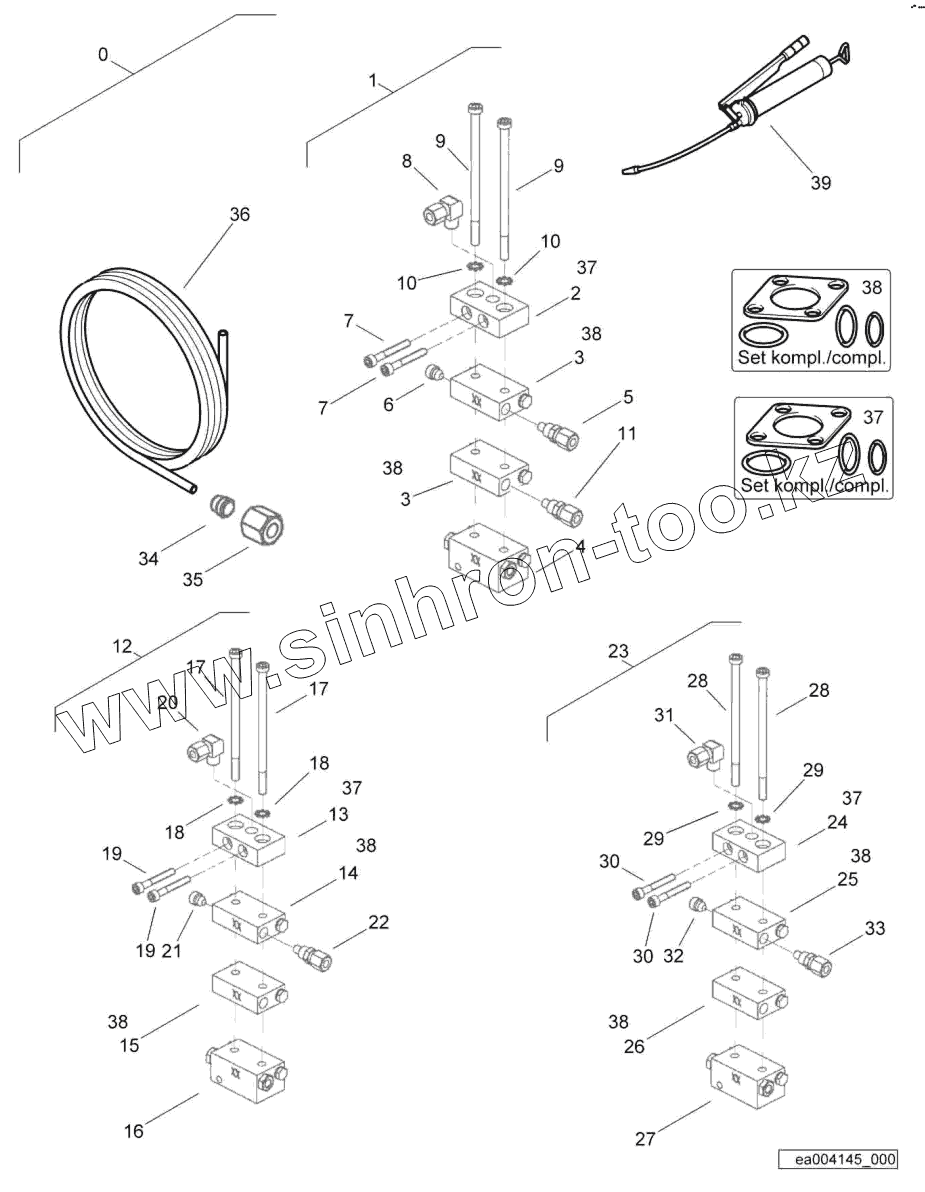

Каталог запасных частей к технике: BOMAG BF 300 C S340 TV. Lubrication system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
05970006
1
2
3
3
4
5
6
7
7
8
9
9
10
10
11
12
13
14
15
16
17
17
18
18
19
19
20
21
22
23
24
25
26
27
28
28
29
29
30
30
31
32
33
34
35
36
37
37
37
37
38
38
38
38
38
38
38
39
Позиция на иллюстрации Заводской номер детали Название детали
05970006 05970006 Lubrication system
1 05970011 Distributor combination
2 05970101 Distributor block
3 05970103 Distributor plate
4 05970109 Distributor piece
5 05970062 Check valve
6 05970116 Screw plug
7 07230565 Socket-head cap screw
8 05970060 Angular fitting
9 07230641 Socket-head cap screw
10 08661064 Star lock washer
11 05970063 Check valve
12 05970012 Distributor combination
13 05970101 Distributor block
14 05970104 Distributor plate
15 05970103 Distributor plate
16 05970108 Distributor piece
17 07230641 Socket-head cap screw
18 08661064 Star lock washer
19 07230565 Socket-head cap screw
20 05970060 Angular fitting
21 05970116 Screw plug
22 05970062 Check valve
23 05970013 Distributor combination
24 05970101 Distributor block
25 05970104 Distributor plate
26 05970103 Distributor plate
27 05970108 Distributor piece
28 07230641 Socket-head cap screw
29 08661064 Star lock washer
30 07230565 Socket-head cap screw
31 05970060 Angular fitting
32 05970116 Screw plug
33 05970062 Check valve
34 05970117 Cutting ring
35 05970118 Cap nut
36 05970081 High pressure hose
37 05970114 Kit,seal
38 05970115 Kit,seal
39 05970037 Grease gun
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
