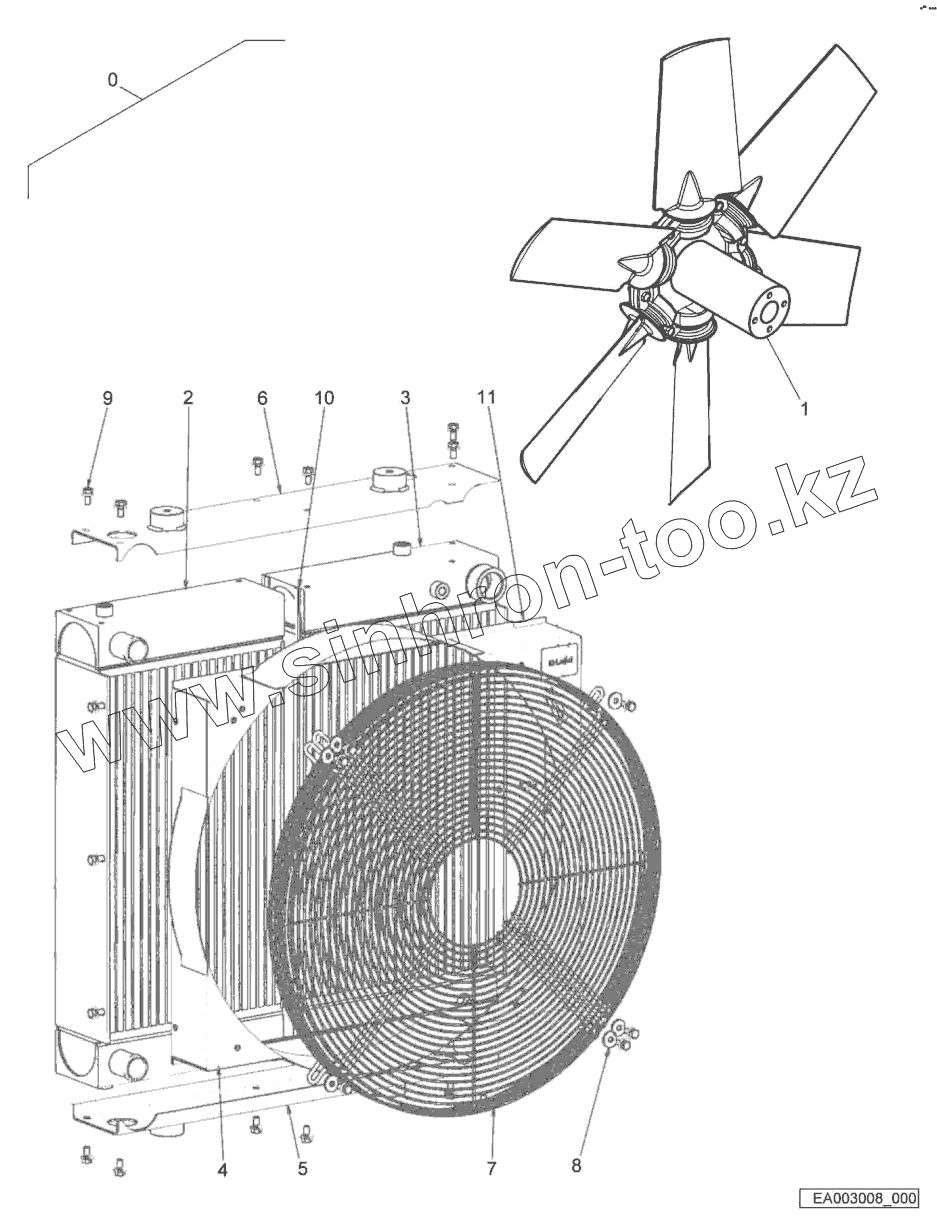

Каталог запасных частей к технике: BOMAG BF 300 C S340 TV. Combination radiator

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано BC772RB-2 (2017) BF 300 C S340 TV BM1300-30-2 (2011) BW 211D-40 BW 24R (2007) BW 24RH (2012) BW120AD-5 (2017) BW211D-40 (2007)

Схема > Не выбрано Engine assembly group Engine assembly group Engine assembly group Engine assembly Fuel system Exhaust System Pump mounting Air Filter Generator Generator Water-oil exchanger Water-oil exchanger Wear plates conveyor belt Wear plates conveyor belt Driving shaft conveyor Driving shaft conveyor Driving shaft conveyor Conveyor chain Auger Auger Material peeding paddels Worm equipment Worm equipment Worm housing Worm housing Undercarriage Undercarriage Travel motor Scrapers for tracks Scrapers for tracks Main screed Main screed Main screed Main screed, assembled Main screed, assembled Discharge chute Discharge chute Discharge chute Hoods Hoods Hoods Hydr. Screed extensions l.h. Hydr. Screed extensions l.h. Hydr. Screed extensions l.h. Hydr. Screed extensions l.h. Hydr. Screed extensions l.h. Hydr. Screed extensions l.h. Drag chain Vibration Vibration Step Step Step Step Step Vibrat.,Grundb.li,Ausfahrb.re. Vibrat.,Grundb.re,Ausfahrb.li. Tamper, Main screed left Tamper, Main screed right Tamper, Anbaubohle links Tamper, attachm. screed l.h. Tamper, attchm. screed r.h. Tamper, attchm. screed r.h. Tamper, Universal joint Tamper Tamper Tamper Tamper Covering,main screed Covering,screed extensions Covering,screed extensions Ultrasound sensor Ultrasound sensor Hydraulic Hydraulic Hose kit, screed Hose kit, screed Hose kit, screed Hose kit, screed Wire harness screed Electr.syst.screed heating (E) Electr.syst.screed heating (E) Electr.syst.screed heating (E) Electr.syst.screed heating (E) Electr.syst.screed heating (E) Electr.syst.screed heating (E) Lubrication system Lubrication system Lubrication system Lubrication oil filter Frame accessories Frame accessories Frame And Attachm.Parts Material hopper Material hopper Pressure rollers Right push rollers,assembled Left push rollers,assembled Screed tow arms Screed tow arms Screed tow arms Screed tow arms Lock Operator's platform Operator's platform Platform rear Platform rear Operator's seat Seat support, assembled Seat support, assembled Seat support, assembled Seat support, assembled Drag chain Right arm rest, assembled Left arm rest, assembled Step plate, movable Step plate, movable Step plate, movable Operator's platform, assembly Operator's platform, assembly Vandalism protection Hoods, assembled Hoods, assembled Hoods, assembled Hoods, assembled Hoods, assembled Hoods, mounting Hoods, mounting Hoods, mounting Hoods, mounting Hoods, mounting Mudguard and cover parts Mudguard and cover parts Protection roof Protection roof Fuel tank Hydraulic oil tank Hydraulic oil tank Tool box complete Decals Decals Decals Decals Decals Decals Decals Decals Accessories Control panel Control panel, assembled Control panel, assembled Control panel, assembled Control panel, assembled Control panel, assembled Control panel, assembled Control panel, assembled Central electric Central electric, assembled Central electric, assembled Central electric, assembled Central electric, assembled Electrical equipment Electrical equipment Electrical equipment Electrical equipment Electrical equipment Control panel Control unit complete,left Control unit complete,right Control unit mech.compon.left Control unit mech.compon.right Control unit elec.compon.left Control unit elec.compon.left Control unit elec.compon.right Control unit elec.compon.right Lateral control panels Strip terminal 1, assembled Strip terminal 2, assembled Strip terminal 3, assembled Strip terminal 4, assembled Battery Heating box Heating box Heating box Wire harnesses Kit,wire harness Kit,wire harness Kit,wire harness Kit,wire harness Kit,wire harness Hydraulics, emergency brake Hydraulics, emergency brake Hydr. pipe tensioning cylinder Hydraulic, Conveyor system Hydraulic, Conveyor worms Hydraulics, Drive Hydraulics, Drive Supply, vibration, tamper Hydraulic, Auxiliary system Hydraulic, Auxiliary system Hydraulic, Auxiliary system Hydraulic, Lifting Hydraulic, Lifting Hydraulic, Protection roof Hyrd.Syst., Operation Hyrd.Syst., Operation Hydraulic, valves Hydraulic, valves Hydraulic, valves Hydraulic, valves Hose kit, operation Hose kit, operation Hose kit, operation Hose kit, operation Tube kit, operation Tube kit, operation Hose kit, drive Hose kit, drive Hose kit, drive E23-Preheating system PO44-Reduct.shoes 38cm PO58-Mech.adj.screed crown PO91-1Long+Trans Level. Mech PO91-1Long+Trans Level. Mech PO91-1Long+Trans Level. Mech PO92-2Long+Trans Level. Mech. PO92-2Long+Trans Level. Mech. PO92-2Long+Trans Level. Mech. PO92-2Long+Trans Level. Mech. PO93-1Long+Trans Level. Sonic PO93-1Long+Trans Level. Sonic PO93-1Long+Trans Level. Sonic PO94-2Long+Trans Level. Sonic PO94-2Long+Trans Level. Sonic PO94-2Long+Trans Level. Sonic PO94-2Long+Trans Level. Sonic PO125-Screed ext.3,4m -> 4,00m PO125-Screed ext.3,4m -> 4,00m PO125-Screed ext.3,4m -> 4,00m Extension, left Extension, left Extension, left Extension, left Extension, left Extension, left Extension, left Extension, right Extension, right Extension, right Extension, right Extension, right Extension, right Extension, right PO81-El.heat.screed end plates PO81-El.heat.screed end plates PO147-adj.grade ski sensor supp Junction box,left Junction box,left Junction box,right Junction box,right PO152-Holder leveling system Longitudinal levelling Longitudinal levelling Longitudinal levelling Longitudinal levelling Longitudinal levelling PO123-Pump, greasing system PO57-Central.lubrication sys. PO57-Central.lubrication sys. PO57-Central.lubrication sys. PO42-Cleaning Kit PO42-Cleaning Kit S46-Weather protection S46-Weather protection S46-Weather protection S46-Weather protection S46-Weather protection S46-Weather protection K21-Seat heating PO118-Sonic Sensors for Slats PO118-Sonic Sensors for Slats PO118-Sonic Sensors for Slats E51-Generator 230VI50HzIDE E65-Bomag Telematic Start PO52-Hydr.adj.screed crown PO52-Hydr.adj.screed crown HY2-Bio hydraulic oil Engine Parts List Crankcase Crankcase Front Cover Oil Pan Oil Pan Cylinder Head Cylinder Head Cylinder Head Cylinder Head Camshaft Control Pieces Control Pieces Oil And Fuel Filter Lube Oil Cooler Injection Pump Injection Pump Injection Pump Injection Pump Injection Pump Crankshaft And Piston Suction Pipe And Exhaust Suction Pipe And Exhaust Suction Pipe And Exhaust Suction Pipe And Exhaust Turbocharger Turbocharger Turbocharger Generator And Starter Generator And Starter Generator And Starter Generator And Starter Electrical Equipment Measuring Instruments Engine Shut Off Seal Kit Seal Kit Water Cooling Water Cooling Water Cooling Water Cooling Governor Governor Governor Dry air filter Generator Clutch Combination radiator Transmission Crawler system Crawler system Water Pump Spray gun Lubrication oil pump Lubrication system Lubrication system Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Pump Hydraulic Motor Hydraulic Motor Gear pump Tandem gear pump Way valve Hydraulic Oil Filter Valve Block Valve Block Valve Block Valve Block Valve Block Valve Block Valve Block Valve Block

05903461

1

2

3

4

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
05903461	05903461		Radiator
1	05903462		Impeller
2	05903470		Radiator block
3	05903471		Radiator block
4	05903472		Guard
5	05903473		Cooling plate
6	05903474		Cooling plate
7	05903475		Protective grill
8	08690816		Washer
9	07140818		Hexagon bolt
10	05903331		Rubber belt
11	05903329		Rubber belt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
