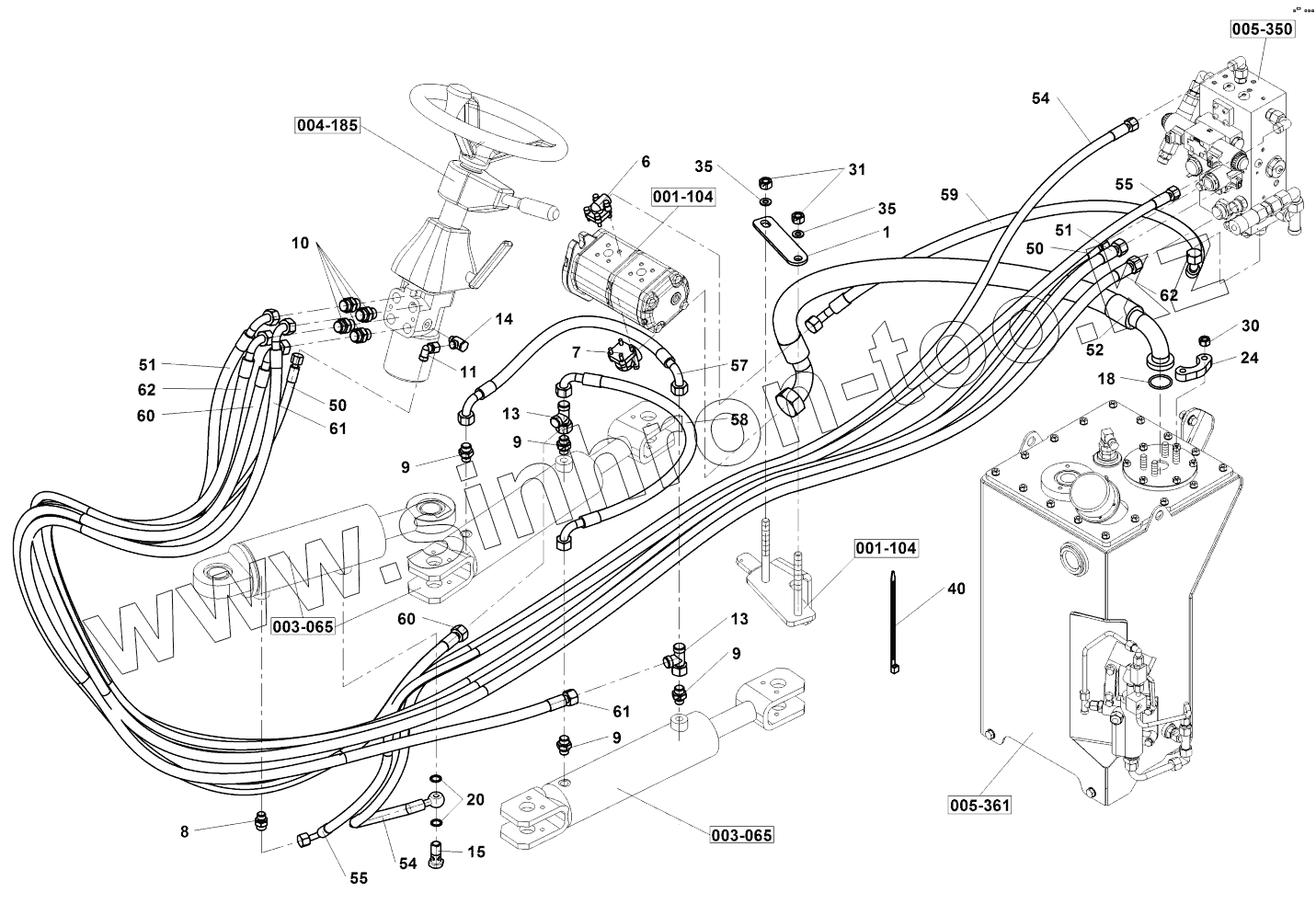

Каталог запасных частей к технике: Ammann AV 70X. Steering hydraulics
1
6
7
8
9
9
9
9
10
11
13
13
14
15
18
20
24
30
31
35
35
40
50
50
51
51
52
54
54
55
55
57
58
59
60
60
61
61
62
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-11191A | 4-11191A | Steering hydraulics | |
| 1 | 4-07819A | Clip | |
| 6 | 4-5160680050 | Flange | |
| 7 | 4-5160680163 | Flange | |
| 8 | 4-5160650059 | Screwed connection | |
| 9 | 4-5160650098 | Connector | |
| 10 | 4-5160650085 | Screwed connection | |
| 11 | 4-5160670087 | Screwed connection | |
| 13 | 4-5160670056 | T-socket | |
| 14 | 4-5160680014 | Flow control screw | |
| 15 | 4-5160571460 | Hollow screw | |
| 18 | 4-6160142204 | КОЛЬЦО | |
| 20 | 4-6090010410 | УПЛОТНИТ КОЛЬЦО | |
| 24 | 4-5160580026 | Yoke | |
| 30 | 4-3048500120 | Hexagon nut | |
| 31 | 4-3048500140 | ГАЙКА | |
| 35 | 4-3170200150 | ШАЙБА | |
| 40 | 4-6150051017 | Staple strip | |
| 50 | 4-5160572374 | Hydraulic hose | |
| 51 | 4-5160572364 | Hydraulic hose | |
| 52 | 4-5160572357 | Hydraulic hose | |
| 54 | 4-5160572843 | Hydraulic hose | |
| 55 | 4-5160572844 | Hydraulic hose | |
| 57 | 4-5160572845 | Hydraulic hose | |
| 58 | 4-5160572846 | Hydraulic hose | |
| 59 | 4-5160572847 | Hydraulic hose | |
| 60 | 4-5160572848 | Hydraulic hose | |
| 61 | 4-5160572849 | Hydraulic hose | |
| 62 | 4-5160572850 | Hydraulic hose |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
