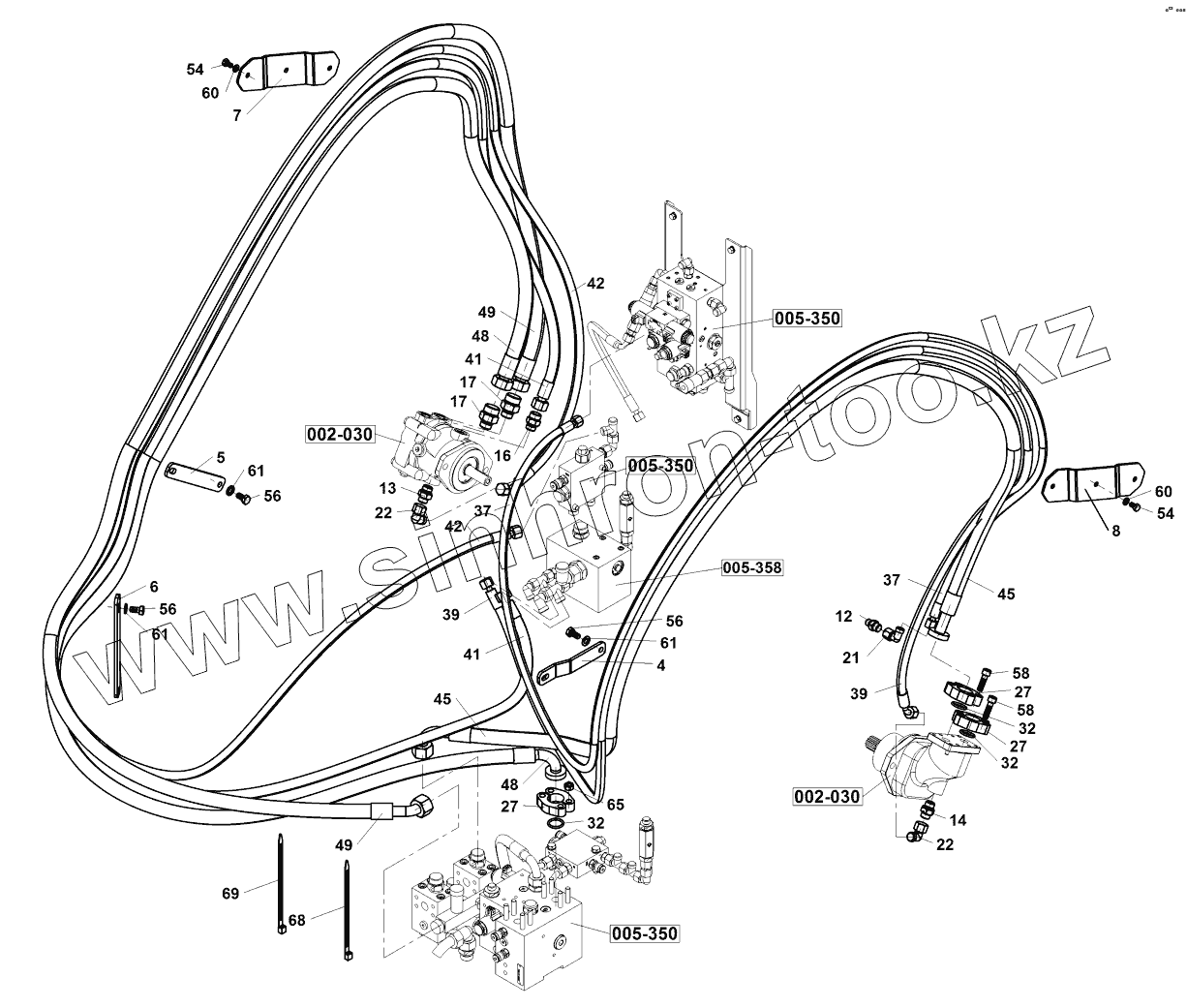

Каталог запасных частей к технике: Ammann AV 70X. Rear drum hydraulic system
4
5
6
7
8
12
13
14
16
17
17
21
22
22
27
27
27
32
32
32
37
37
39
39
41
41
42
42
45
45
48
48
49
49
54
54
56
56
56
58
58
60
60
61
61
61
65
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-11189A | 4-11189A | Drum hydraulics | |
| 4 | 4-11059A | Clip | |
| 5 | 4-07815A | Clip | |
| 6 | 4-12456A | Clip | |
| 7 | 4-10792A | Clip | |
| 8 | 4-10793A | Clip | |
| 12 | 4-5160650058 | Screwed connection | |
| 13 | 4-5160650110 | Connector | |
| 14 | 4-5160650060 | Connector | |
| 16 | 4-5160650092 | Connector | |
| 17 | 4-5160650093 | Connector | |
| 21 | 4-5160670087 | Screwed connection | |
| 22 | 4-5160670028 | Screwed connection | |
| 27 | 4-5160580016 | Yoke | |
| 32 | 4-6160142202 | O-ring | |
| 37 | 4-5160572373 | Hydraulic hose | |
| 39 | 4-5160572370 | Hydraulic hose | |
| 41 | 4-5160572365 | Hydraulic hose | |
| 42 | 4-5160572368 | Hydraulic hose | |
| 45 | 4-5160572346 | Hydraulic hose | |
| 48 | 4-5160570051 | Hydraulic hose | |
| 49 | 4-5160572331 | Hydraulic hose | |
| 54 | 4-3002508014 | Hexagon head screw | |
| 56 | 4-3002510020 | Hexagon head screw | |
| 58 | 4-3114310035 | Socket head cap screw | |
| 60 | 4-3900017080 | Spring washer | |
| 61 | 4-3170600100 | Washer | |
| 65 | 4-3048500100 | Hexagon nut | |
| 68 | 4-6150051017 | Staple strip | |
| 69 | 4-6150051019 | Staple strip |
