Каталог запасных частей к технике: Ammann AV 70X. Railing
1
2
3
4
6
6
7
7
8
9
10
10
10
11
12
15
16
18
19
19
22
22
22
23
23
24
25
25
25
26
26
26
27
28
28
28
29
29
30
31
31
31
32
32
32
33
33
33
33
33
33
34
34

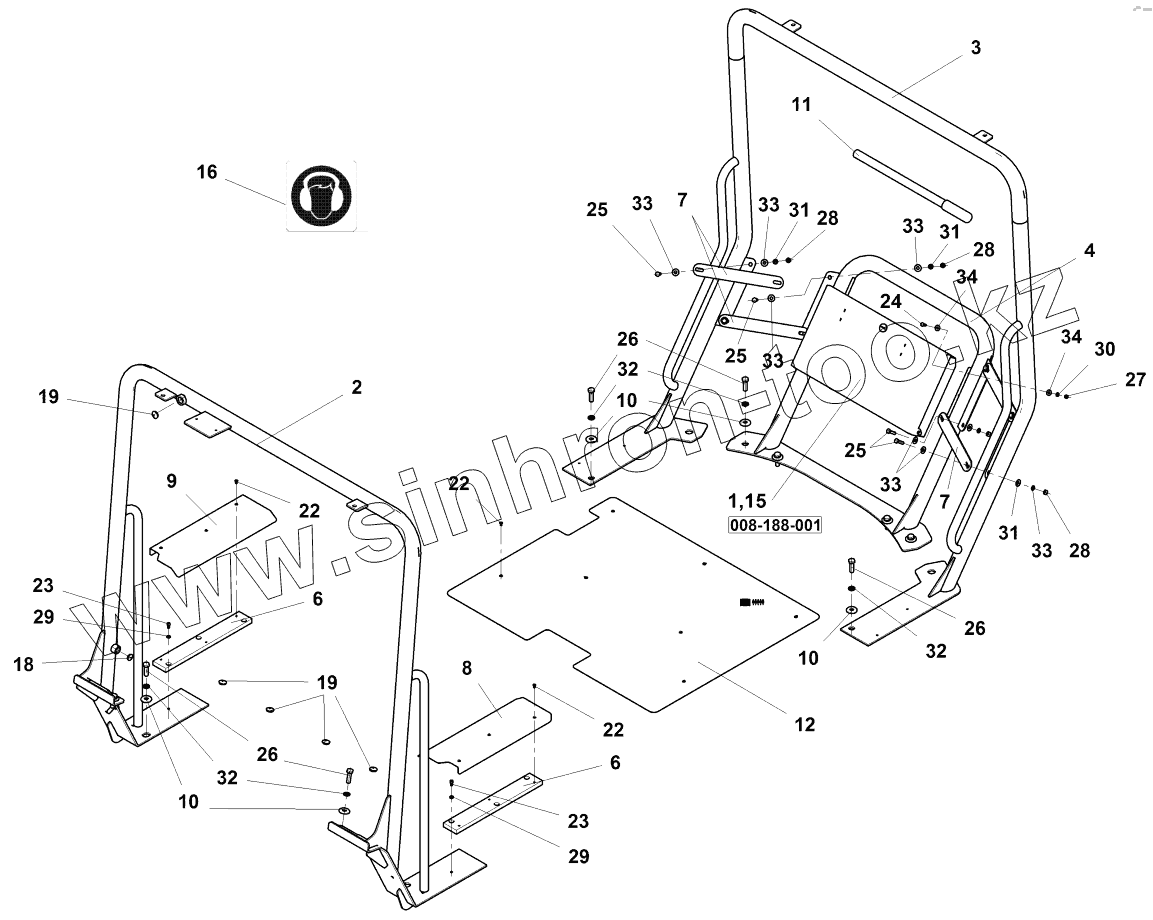

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-13839 | 4-13839 | Railing | |
| 1 | 4-S09410A | Folding box | |
| 2 | 4-13836 | Supporting frame | |
| 3 | 4-13837 | Supporting frame | |
| 4 | 4-13838 | Supporting frame | |
| 6 | 4-09424A | Flat | |
| 7 | 4-13851 | Collecting plate | |
| 8 | 4-13849 | Plate | |
| 9 | 4-13850 | Plate | |
| 10 | 4-08313A | Washer | |
| 11 | 4-14288 | Hand lever | |
| 12 | 4-12353A | Floor | |
| 15 | 4-9500001014 | Key | |
| 16 | 4-6531012408 | Symbol | |
| 18 | 4-5358570060 | Plug | |
| 19 | 4-5358570002 | Plug | |
| 22 | 4-3115105010 | Countersunk screw | |
| 23 | 4-3114306012 | Socket head cap screw | |
| 24 | 4-3002506016 | Hexagon head screw | |
| 25 | 4-3002508025 | Hexagon head screw | |
| 26 | 4-3002512040 | Hexagon head screw | |
| 27 | 4-3048500060 | Hexagon nut | |
| 28 | 4-3048500080 | Hexagon nut | |
| 29 | 4-3170200064 | ШАЙБА | |
| 30 | 4-3900017060 | Spring washer | |
| 31 | 4-3900017080 | Spring washer | |
| 32 | 4-3900017120 | Spring washer | |
| 33 | 4-3172900090 | Washer | |
| 34 | 4-3172900066 | Washer |
