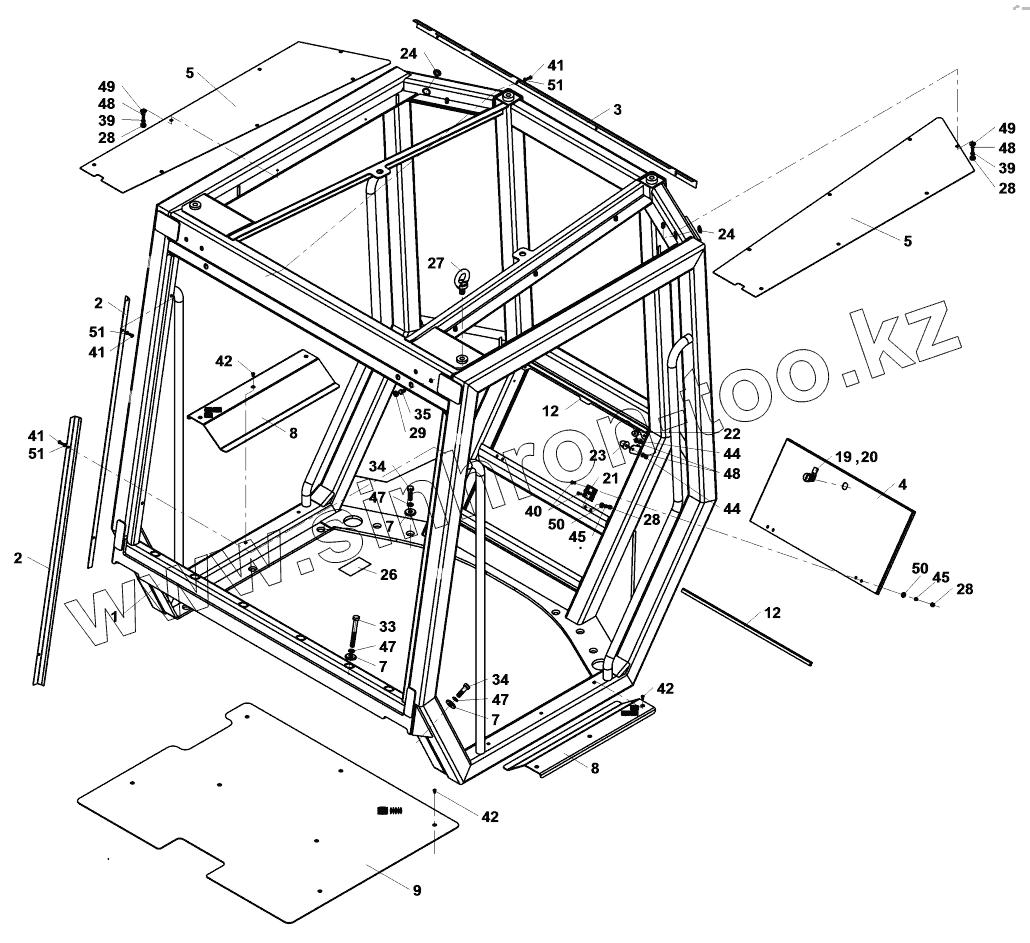

Каталог запасных частей к технике: Ammann AV 70X. Railing
1
2
2
3
4
5
5
7
7
7
8
8
9
12
12
19
20
21
22
23
24
24
26
27
28
28
28
28
29
33
34
34
35
39
39
40
41
41
41
42
42
42
44
44
45
45
47
47
47
48
48
48
49
49
50
50
51
51
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-09260A | 4-09260A | Railing | |
| 1 | 4-09261A | Railing | |
| 2 | 4-09101A | Bar | |
| 3 | 4-09291A | Bar | |
| 4 | 4-07047A | Door | |
| 5 | 4-09295A | Plate | |
| 7 | 4-08313A | Washer | |
| 8 | 4-09273A | Threshold | |
| 9 | 4-12353A | Floor | |
| 12 | 4-11359A | Rubber profile | |
| 19 | 4-9500001016 | Tongue lock | |
| 20 | 4-9500001014 | Key | |
| 21 | 4-5358010501 | Hinge | |
| 22 | 4-6160081479 | Rubber mount | |
| 23 | 4-6160081476 | Rubber mount | |
| 24 | 4-5358570046 | Plug | |
| 26 | 4-6531012408 | Symbol | |
| 27 | 4-3136900160 | БОЛТ ПОДВЕСНОЙ | |
| 28 | 4-6150090092 | КОЖУХ | |
| 29 | 4-6150090076 | Cover | |
| 33 | 4-3001512100 | Hexagon head screw | |
| 34 | 4-3002512040 | Hexagon head screw | |
| 35 | 4-3002508025 | Hexagon head screw | |
| 39 | 4-3002506016 | Hexagon head screw | |
| 40 | 4-3115105016 | Countersunk screw | |
| 41 | 4-3002505012 | Hexagon head screw | |
| 42 | 4-3115105010 | Countersunk screw | |
| 44 | 4-3048500060 | Hexagon nut | |
| 45 | 4-3149200050 | Nut | |
| 47 | 4-3900017120 | Spring washer | |
| 48 | 4-3900017060 | Spring washer | |
| 49 | 4-3172900066 | Washer | |
| 50 | 4-3172900055 | Washer | |
| 51 | 4-3170200053 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
