Каталог запасных частей к технике: Ammann AV 70X. Pump hydraulics
1
3
4
7
7.01
7.02
8
9
10
12
14
15
21
25
25
25
27
30
31
34
35
35
37
37
37
38
38
40
41
41
41
47
47
47
47
48
49
52
53
55
58
60
64
65
66
68
69
70
71
72
73
77
92
97
103
107
110
110
118
118
119
119
121
122
123
124
137
138
138
138
138
139
141
141
144

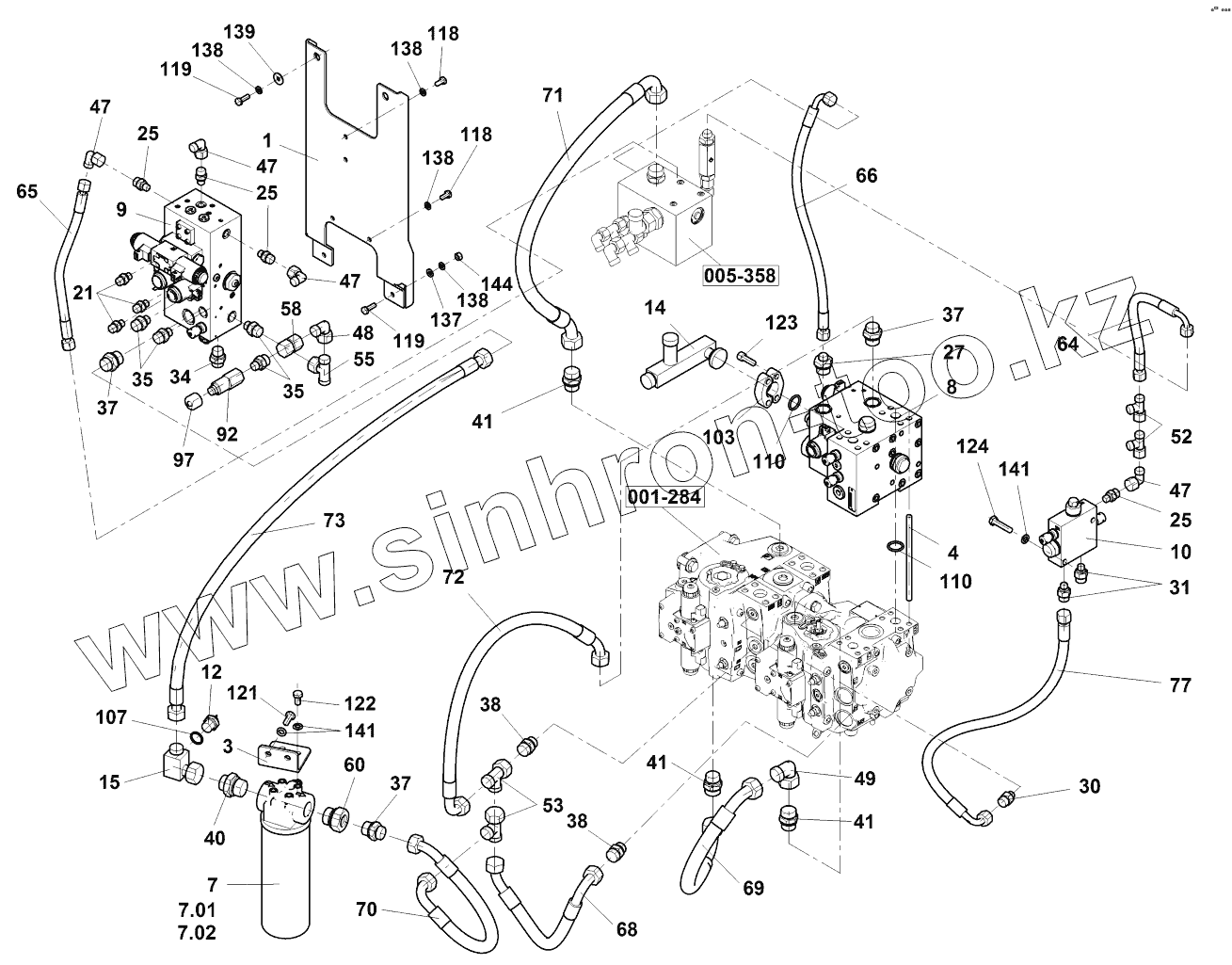

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-11190A | 4-11190A | Pump hydraulics | |
| 1 | 4-10897A | Plate | |
| 3 | 4-07809A | Holder | |
| 4 | 4-09589A | Threaded rod | |
| 7 | 4-5358520113 | Filter | |
| 7.01 | 4-5358520121 | Filter element | |
| 7.02 | 4-8300750618 | Indicator | |
| 8 | 4-5451050103 | Vibration hydraulic block | |
| 9 | 4-5451050091 | Block | |
| 10 | 4-5451050052 | Block | |
| 12 | 4-5358120090 | Temperature switch | |
| 14 | 4-5160572291 | Hydraulic body | |
| 15 | 4-5160572131 | Hydraulic body | |
| 21 | 4-5160650058 | Screwed connection | |
| 25 | 4-5160650078 | Connector | |
| 27 | 4-5160650073 | Connector | |
| 30 | 4-5160650109 | Connector | |
| 31 | 4-5160650149 | Connector | |
| 34 | 4-5160650085 | Screwed connection | |
| 35 | 4-5160650050 | Screwed connection | |
| 37 | 4-5160650077 | Connector | |
| 38 | 4-5160650033 | Connector | |
| 40 | 4-5160572080 | Connector | |
| 41 | 4-5160650040 | МУФТА | |
| 47 | 4-5160670028 | Screwed connection | |
| 48 | 4-5160670029 | Screwed connection | |
| 49 | 4-5160660027 | Adjustable male stud run | |
| 52 | 4-5160670065 | L-connection | |
| 53 | 4-5160660028 | T-socket | |
| 55 | 4-5160670054 | T-connection | |
| 58 | 4-5160660082 | Clutch | |
| 60 | 4-5160670136 | Reduction | |
| 64 | 4-5160571783 | Hydraulic hose | |
| 65 | 4-5160572255 | Hydraulic hose | |
| 66 | 4-5160571474 | Hydraulic hose | |
| 68 | 4-5160572360 | Hydraulic hose | |
| 69 | 4-5160572334 | Hydraulic hose | |
| 70 | 4-5160572361 | Hydraulic hose | |
| 71 | 4-5160572359 | Hydraulic hose | |
| 72 | 4-5160572362 | Hydraulic hose | |
| 73 | 4-5160572363 | Hydraulic hose | |
| 77 | 4-5160572349 | Hydraulic hose | |
| 92 | 4-5358050082 | Quick-release coupling | |
| 97 | 4-5160660083 | Cover | |
| 103 | 4-5160580016 | Yoke | |
| 107 | 4-6090010415 | УПЛОТНИТ КОЛЬЦО | |
| 110 | 4-6160142202 | O-ring | |
| 118 | 4-3002508016 | Hexagon head screw | |
| 119 | 4-3002508025 | Hexagon head screw | |
| 121 | 4-3002510016 | Hexagon head screw | |
| 122 | 4-3002510020 | Hexagon head screw | |
| 123 | 4-3114310030 | Socket head cap screw | |
| 124 | 4-3001510045 | БОЛТ | |
| 137 | 4-3170200084 | ШАЙБА | |
| 138 | 4-3900017080 | Spring washer | |
| 139 | 4-3172600084 | Washer | |
| 141 | 4-3900017100 | Spring washer | |
| 144 | 4-3048500080 | Hexagon nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
