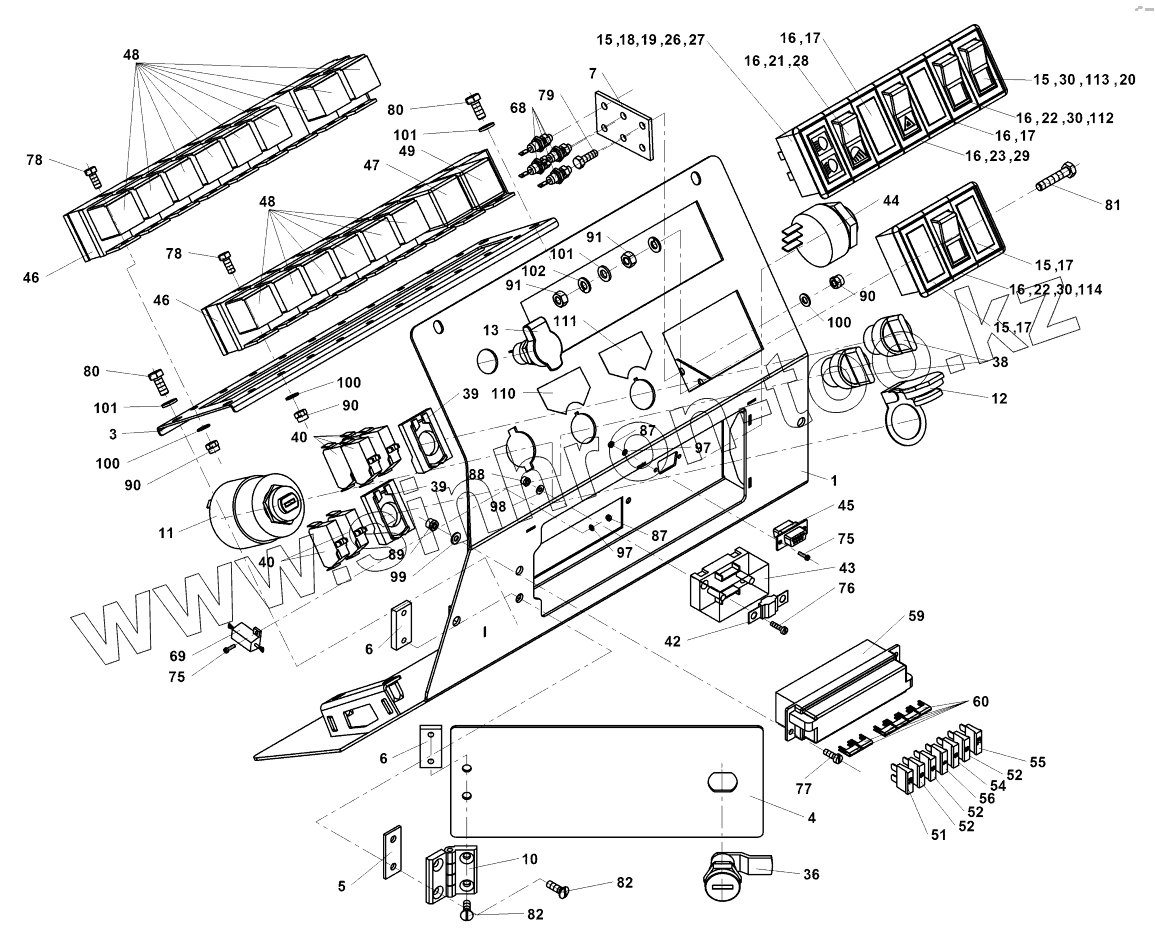

Каталог запасных частей к технике: Ammann AV 70X. Instrument panel
1
3
4
5
6
6
7
10
11
12
13
15
15
15
15
16
16
16
16
16
16
17
17
17
17
18
19
20
21
22
22
23
26
27
28
29
30
30
30
36
38
39
39
40
40
42
43
44
45
46
46
47
48
48
49
51
52
52
52
54
55
56
59
60
68
69
75
75
76
77
78
78
79
80
80
81
82
82
87
87
88
89
90
90
90
91
91
97
97
98
99
100
100
100
101
101
101
102
110
111
112
113
114
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-11101A | 4-11101A | Plate | |
| 1 | 4-08222A | Instrument panel | |
| 3 | 4-09132A | Ramp | |
| 4 | 4-08225A | Door | |
| 5 | 4-09126A | Washer | |
| 6 | 4-09127A | Plate | |
| 7 | 4-441140 | Holder | |
| 10 | 4-5358010501 | Hinge | |
| 11 | 4-5358010407 | Ignition lock | |
| 12 | 4-5358010402 | Flap | |
| 13 | 4-5358010411 | Socket | |
| 15 | 4-5358200091 | T-piece | |
| 16 | 4-5358200092 | Intermediate piece | |
| 17 | 4-5358220040 | Cover | |
| 18 | 4-5358200093 | Indicator lamp | |
| 19 | 4-5358220071 | Spotlight | |
| 20 | 4-5358200096 | Switch | |
| 21 | 4-5358200089 | Switch | |
| 22 | 4-5358220042 | ВЫКЛЮЧАТЕЛЬ | |
| 23 | 4-5358210018 | Switch | |
| 26 | 4-5358220043 | Plate | |
| 27 | 4-5358210043 | Plate | |
| 28 | 4-5358220044 | Plate | |
| 29 | 4-5358210025 | Plate | |
| 30 | 4-5358210081 | Plate | |
| 36 | 4-9500001016 | Tongue lock | |
| 38 | 4-5413070077 | Head piece | |
| 39 | 4-5413070113 | Clutch | |
| 40 | 4-5413070122 | Contact | |
| 42 | 4-5358170099 | Fuse | |
| 43 | 4-5358170101 | Bushing | |
| 44 | 4-9706000113 | Signalling | |
| 45 | 4-5432020002 | Socket | |
| 46 | 4-5358170081 | Relay support | |
| 47 | 4-5358170078 | Circuit breaker | |
| 48 | 4-5358170079 | Relay | |
| 49 | 4-5422080029 | Relay | |
| 51 | 4-5422060017 | Fuse | |
| 52 | 4-5422060013 | Fuse | |
| 54 | 4-5422060016 | Fuse | |
| 55 | 4-5422060012 | Fuse | |
| 56 | 4-5422060014 | Fuse | |
| 59 | 4-9200010006 | Fusebox | |
| 60 | 4-9200010005 | Bridge | |
| 68 | 4-5432010008 | Diode | |
| 69 | 4-5432010070 | Resistance | |
| 75 | 4-3113102008 | Socket head cap screw | |
| 76 | 4-3113103012 | Socket head cap screw | |
| 77 | 4-3113104012 | Socket head cap screw | |
| 78 | 4-3002505012 | Hexagon head screw | |
| 79 | 4-3002505016 | Hexagon head screw | |
| 80 | 4-3002506014 | Hexagon head screw | |
| 81 | 4-3002506030 | Hexagon head screw | |
| 82 | 4-3115505016 | Oval head countersunk screw | |
| 87 | 4-3140100020 | Hexagon nut | |
| 88 | 4-3149200030 | Nut | |
| 89 | 4-3149200040 | Nut | |
| 90 | 4-3149200050 | Nut | |
| 91 | 4-3048500060 | Hexagon nut | |
| 97 | 4-3174500022 | Serrated lock washer | |
| 98 | 4-3170200032 | ШАЙБА | |
| 99 | 4-3170200043 | ШАЙБА | |
| 100 | 4-3170200053 | Washer | |
| 101 | 4-3170200064 | ШАЙБА | |
| 102 | 4-3900017060 | Spring washer | |
| 110 | 4-6531013179 | Symbol | |
| 111 | 4-6531013262 | Symbol | |
| 112 | 4-6531013181 | Symbol | |
| 113 | 4-6531013180 | Symbol | |
| 114 | 4-6531013185 | Symbol |
