Каталог запасных частей к технике: Ammann AV 70X. Hydraulic oil tank
1
2
3
7
8
9
14
15
16
17
18
19
21
22
23
24
25
26
27
28
31
39
43
44
51
52
53
54
55
56
60
60
61
61
65
65
65
65
66
66
67
67
67
67
68

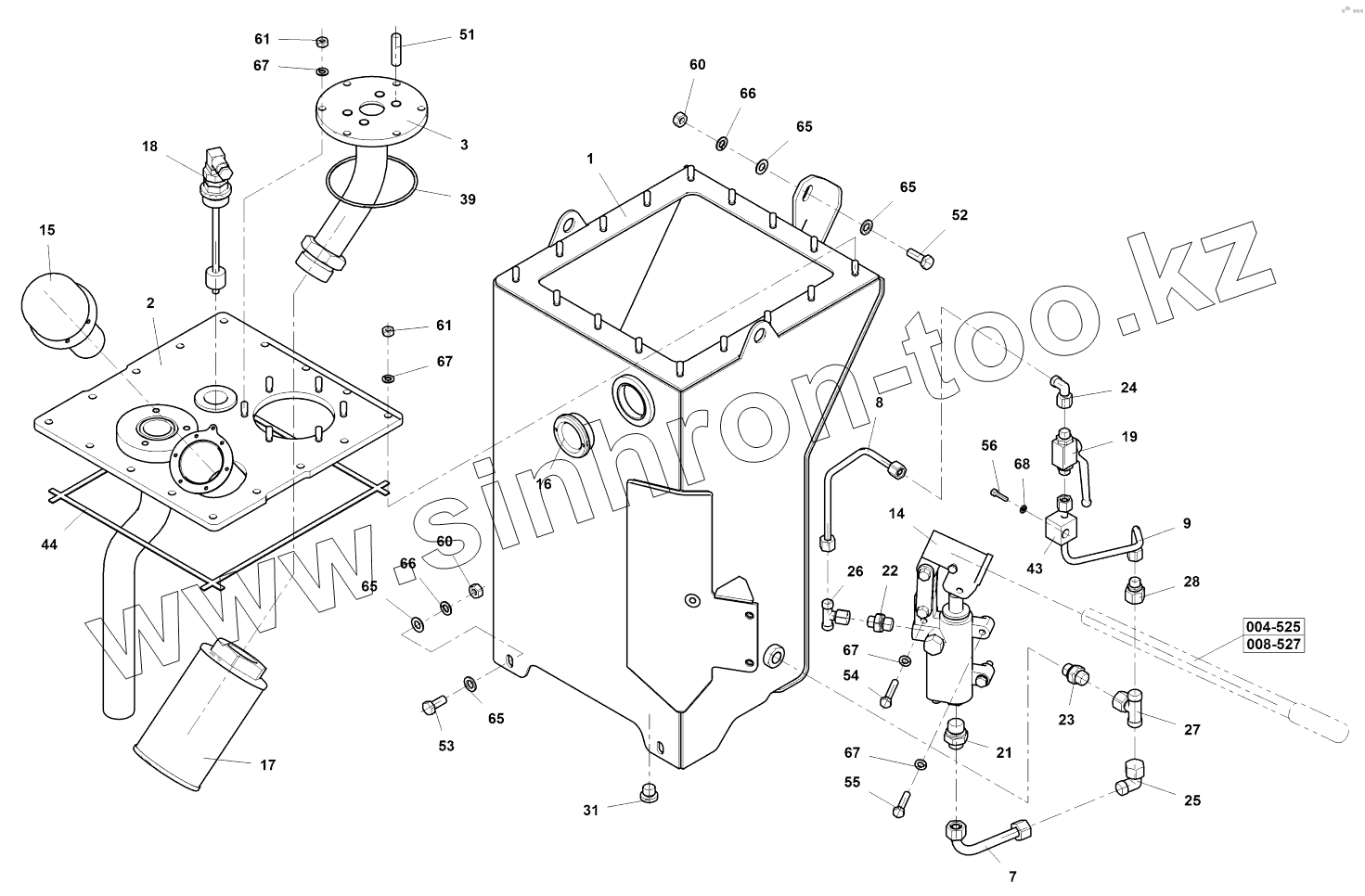

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-07784A | 4-07784A | Hydraulic oil tank | |
| 1 | 4-07785A | Tank | |
| 2 | 4-07789A | Cover | |
| 3 | 4-07791A | Intake flange | |
| 7 | 4-12356A | Pipe | |
| 8 | 4-12358A | Pipe | |
| 9 | 4-12359A | Pipe | |
| 14 | 4-5451080151 | Hand pump | |
| 15 | 4-5358500002 | Filler neck | |
| 16 | 4-5536860012 | Inspection glass | |
| 17 | 4-5451050018 | Strainer | |
| 18 | 4-5451050088 | Level sensor | |
| 19 | 4-5160650159 | Ball cock | |
| 21 | 4-5160650038 | Screwed connection | |
| 22 | 4-5160650139 | Connector | |
| 23 | 4-5160650059 | Screwed connection | |
| 24 | 4-5160670076 | Adjustable male stud run | |
| 25 | 4-5160670028 | Screwed connection | |
| 26 | 4-5160660091 | T-socket | |
| 27 | 4-5160670066 | T-connection | |
| 28 | 4-5160670128 | Reduction | |
| 31 | 4-5160670034 | Plug | |
| 39 | 4-6160142207 | O-ring | |
| 43 | 4-5358050068 | Sleeve | |
| 44 | 4-5422250006 | Sealing tape | |
| 51 | 4-3030512030 | Stud bolt | |
| 52 | 4-3002510030 | Hexagon head screw | |
| 53 | 4-3002510025 | Hexagon head screw | |
| 54 | 4-3002508045 | Hexagon head screw | |
| 55 | 4-3002508040 | БОЛТ | |
| 56 | 4-3114305020 | Socket head cap screw | |
| 60 | 4-3048500100 | Hexagon nut | |
| 61 | 4-3048500080 | Hexagon nut | |
| 65 | 4-3170600100 | Washer | |
| 66 | 4-3900017100 | Spring washer | |
| 67 | 4-3900017080 | Spring washer | |
| 68 | 4-3170200053 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
