Каталог запасных частей к технике: Ammann AV 70X. Front drum hydraulic system
1
4
5
6
7
8
12
13
14
16
18
20
21
21
27
27
30
30
32
32
33
33
34
34
35
35
36
36
41
41
41
43
43
43
43
48
48
49
52
52
53
53
57
59
59
59
61
65
65
66
66
68
68
70
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|

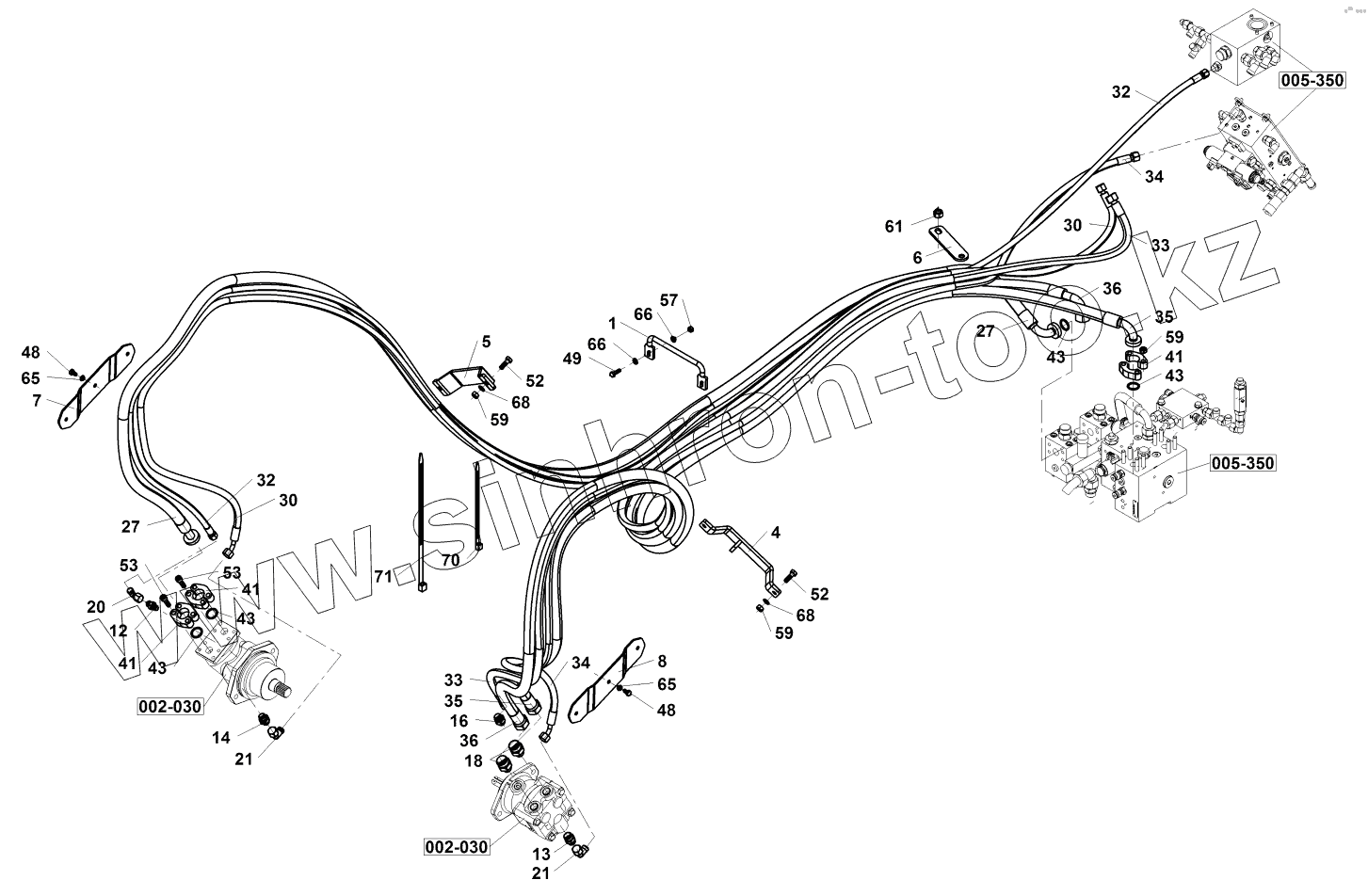

| 4-11188A | 4-11188A | Drum hydraulics | |
| 1 | 4-08771A | Holder | |
| 4 | 4-11203A | Holder | |
| 5 | 4-11205A | Holder | |
| 6 | 4-07819A | Clip | |
| 7 | 4-10793A | Clip | |
| 8 | 4-10792A | Clip | |
| 12 | 4-5160650058 | Screwed connection | |
| 13 | 4-5160650110 | Connector | |
| 14 | 4-5160650060 | Connector | |
| 16 | 4-5160650092 | Connector | |
| 18 | 4-5160650093 | Connector | |
| 20 | 4-5160670087 | Screwed connection | |
| 21 | 4-5160670028 | Screwed connection | |
| 27 | 4-5160572326 | Hydraulic hose | |
| 30 | 4-5160572369 | Hydraulic hose | |
| 32 | 4-5160572092 | Hydraulic hose | |
| 33 | 4-5160572365 | Hydraulic hose | |
| 34 | 4-5160572367 | Hydraulic hose | |
| 35 | 4-5160572330 | Hydraulic hose | |
| 36 | 4-5160572332 | Hydraulic hose | |
| 41 | 4-5160580016 | Yoke | |
| 43 | 4-6160142202 | O-ring | |
| 48 | 4-3002508014 | Hexagon head screw | |
| 49 | 4-3002508025 | Hexagon head screw | |
| 52 | 4-3002510030 | Hexagon head screw | |
| 53 | 4-3114310035 | Socket head cap screw | |
| 57 | 4-3048500080 | Hexagon nut | |
| 59 | 4-3048500100 | Hexagon nut | |
| 61 | 4-3048500140 | ГАЙКА | |
| 65 | 4-3900017080 | Spring washer | |
| 66 | 4-3170600080 | Washer | |
| 68 | 4-3900017100 | Spring washer | |
| 70 | 4-6150051017 | Staple strip | |
| 71 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
