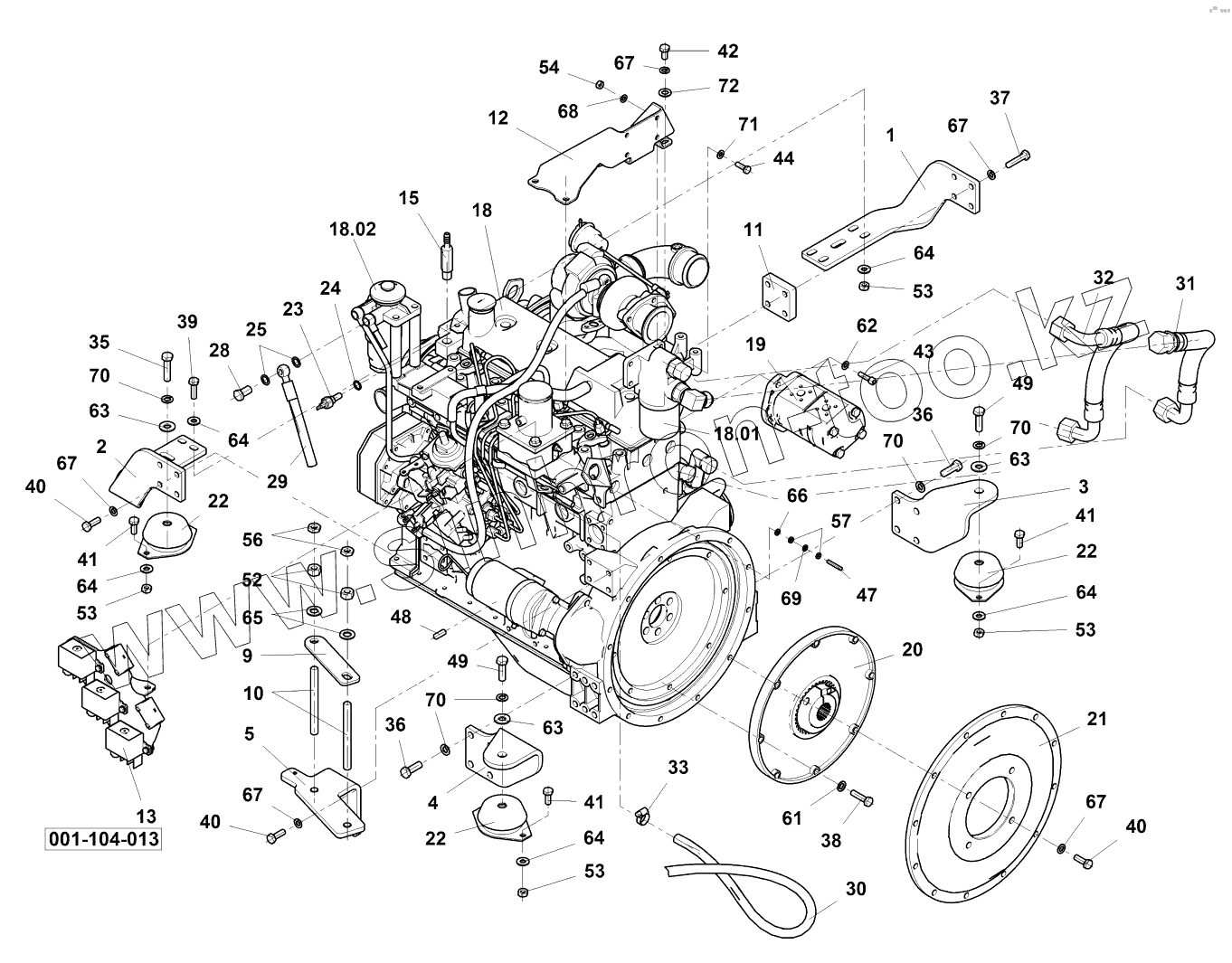

Каталог запасных частей к технике: Ammann AV 70X. Engine
1
2
3
4
5
9
10
11
12
13
15
18
18.01
18.02
19
20
21
22
22
22
23
24
25
28
29
30
31
32
33
35
36
36
37
38
39
40
40
40
41
41
41
42
43
44
47
48
49
49
52
53
53
53
53
54
56
57
61
62
63
63
63
64
64
64
64
64
65
66
67
67
67
67
67
68
69
70
70
70
70
71
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-06989A | 4-06989A | Engine | |
| 1 | 4-07651A | Yoke | |
| 2 | 4-07650A | Yoke | |
| 3 | 4-07648A | Bracket | |
| 4 | 4-07649A | Bracket | |
| 5 | 4-11061A | Holder | |
| 9 | 4-07819A | Clip | |
| 10 | 4-07829A | Threaded rod | |
| 11 | 4-07652A | Intermediate piece | |
| 12 | 4-07927A | Holder | |
| 13 | 4-S07983A | Contactor | |
| 15 | 4-12297A | Connection | |
| 18 | 4-9501000320 | Engine | |
| 18.01 | 4-9501000307 | Oil filter | |
| 18.02 | 4-9501000044 | Insert | |
| 19 | 4-5451090094 | Pump | |
| 20 | 4-9512000337 | Clutch | |
| 21 | 4-9512000358 | Mounting flange | |
| 22 | 4-9200000062 | Rubber mount | |
| 23 | 4-5358120070 | Thermostat | |
| 24 | 4-6090010412 | Sealing ring | |
| 25 | 4-6090010465 | Sealing ring | |
| 28 | 4-5160571281 | Hollow screw | |
| 29 | 4-5160572130 | Hydraulic hose | |
| 30 | 4-5160572686 | Hydraulic hose | |
| 31 | 4-5160572386 | Hydraulic hose | |
| 32 | 4-5160572385 | Hydraulic hose | |
| 33 | 4-5531020073 | Hose clamp | |
| 35 | 4-3002512050 | Hexagon head screw | |
| 36 | 4-3002512035 | Hexagon head screw | |
| 37 | 4-3002510045 | Hexagon head screw | |
| 38 | 4-3002510040 | Hexagon head screw | |
| 39 | 4-3002510035 | БОЛТ | |
| 40 | 4-3002510030 | Hexagon head screw | |
| 41 | 4-3002510025 | Hexagon head screw | |
| 42 | 4-3002510020 | Hexagon head screw | |
| 43 | 4-3002508030 | Hexagon head screw | |
| 44 | 4-3002508025 | Hexagon head screw | |
| 47 | 4-3029506030 | Stud bolt | |
| 48 | 4-3117410025 | Stud bolt | |
| 49 | 4-3002512040 | Hexagon head screw | |
| 52 | 4-3048500140 | ГАЙКА | |
| 53 | 4-3048500100 | Hexagon nut | |
| 54 | 4-3048500080 | Hexagon nut | |
| 56 | 4-3140300140 | Hexagon nut | |
| 57 | 4-3140300060 | Hexagon nut | |
| 61 | 4-3170600100 | Washer | |
| 62 | 4-3170600080 | Washer | |
| 63 | 4-3679600130 | Strain washer | |
| 64 | 4-3679600100 | Strain washer | |
| 65 | 4-3170200150 | ШАЙБА | |
| 66 | 4-3170200064 | ШАЙБА | |
| 67 | 4-3900017100 | Spring washer | |
| 68 | 4-3900017080 | Spring washer | |
| 69 | 4-3900017060 | Spring washer | |
| 70 | 4-3900017120 | Spring washer | |
| 71 | 4-3170200084 | ШАЙБА | |
| 72 | 4-3170200105 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
