Каталог запасных частей к технике: Ammann AV 70X. Edge cutter
1
2
3
4
5
7
8
9
9
10
10
15
15.01
16
16
17
18
19
20
20
25
26
27
28
28
29
30
31
32
33
33
34
34
34
34
34
38
39
44
45
48
49
50
50
51
53
53
54
58
59
59
60
60
61
73
73
74

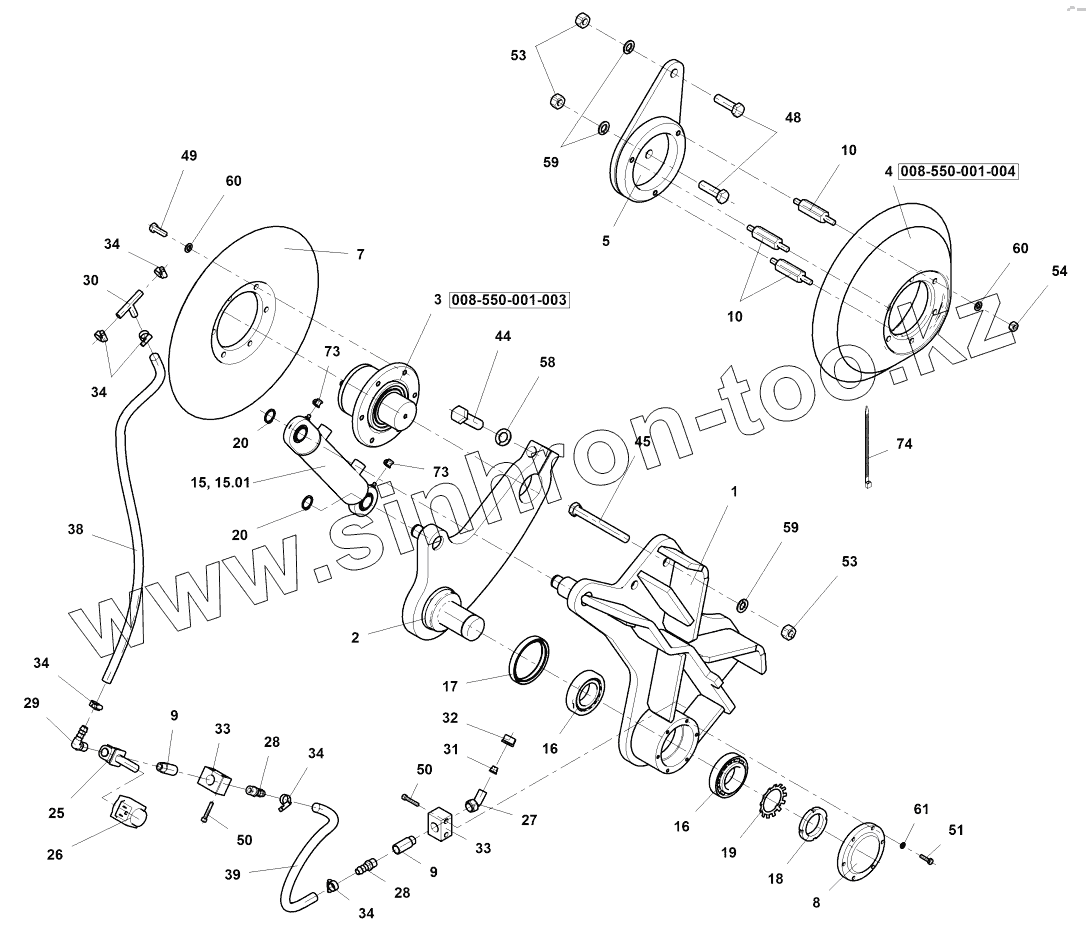

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-07930A | 4-07930A | Edge cutter | |
| 1 | 4-07931A | Bracket | |
| 2 | 4-07902A | Swingarm | |
| 3 | 4-S09804A | Hub | |
| 4 | 4-S09832A | Roller | |
| 5 | 4-07938A | Holder | |
| 7 | 4-09856A | Washer | |
| 8 | 4-07904A | Cap | |
| 9 | 4-10368A | Attachment | |
| 10 | 4-07910A | Attachment | |
| 15 | 4-5451180177 | Hydraulic cylinder | |
| 15.01 | 1259039 | Sealing kit | |
| 16 | 4-5462270110 | Bearing | |
| 17 | 4-6160070212 | Gasket | |
| 18 | 4-5462110015 | ГАЙКА | |
| 19 | 4-5462110130 | СТОПОР | |
| 20 | 4-5535010025 | Circlip | |
| 25 | 4-5322110002 | Valve | |
| 26 | 4-5322110001 | Magnet | |
| 27 | 4-5531020033 | Manifold | |
| 28 | 4-5531020055 | Connector | |
| 29 | 4-5531020052 | Connector | |
| 30 | 4-5531020054 | Connector | |
| 31 | 4-6150090022 | ФОРСУНКА | |
| 32 | 4-6150090023 | Nut | |
| 33 | 4-5358050039 | Sleeve | |
| 34 | 4-5531020001 | СКОБА | |
| 38 | 4-07928A | Spraydown pipe | |
| 39 | 4-07929A | Spraydown pipe | |
| 44 | 4-3001520070 | Hexagon head screw | |
| 45 | 4-3001516140 | Hexagon head screw | |
| 48 | 4-3001516055 | Hexagon head screw | |
| 49 | 4-3002510030 | Hexagon head screw | |
| 50 | 4-3114306035 | Socket head cap screw | |
| 51 | 4-3002506025 | Hexagon head screw | |
| 53 | 4-3048500160 | Hexagon nut | |
| 54 | 4-3048500100 | Hexagon nut | |
| 58 | 4-3900017200 | Spring washer | |
| 59 | 4-3900017160 | Spring washer | |
| 60 | 4-3900017100 | Spring washer | |
| 61 | 4-3900017060 | Spring washer | |
| 73 | 4-5358030042 | Plug | |
| 74 | 4-6150051016 | Staple strip |
