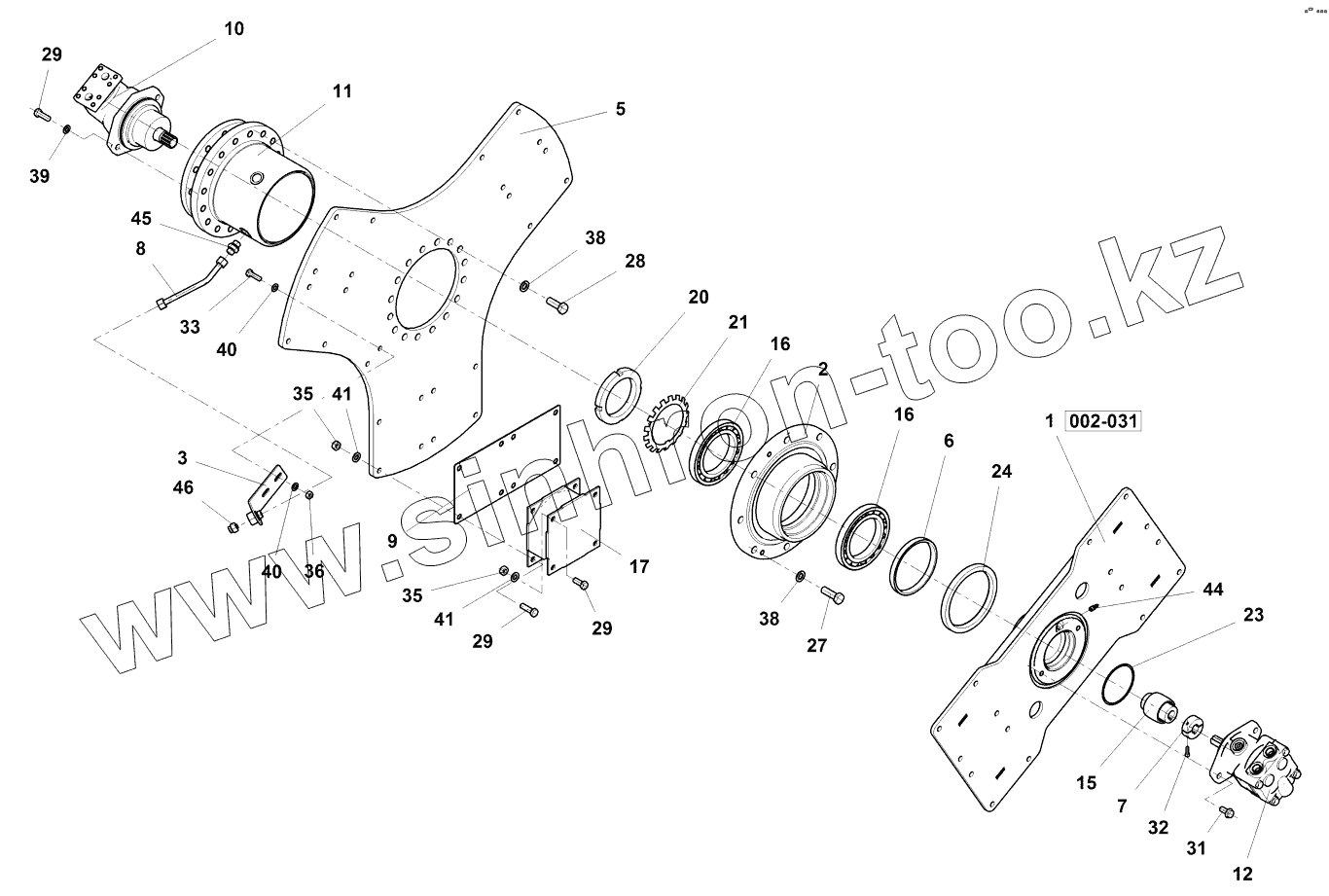

Каталог запасных частей к технике: Ammann AV 70X. Drum drive
1
2
3
5
6
7
8
9
10
11
12
15
16
16
17
20
21
23
24
27
28
29
29
29
31
32
33
35
35
36
38
38
39
40
40
41
41
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-10185A | 4-10185A | Drive | |
| 1 | 4-10242A | Hub | |
| 2 | 4-10241A | Bearing | |
| 3 | 4-11724A | Holder | |
| 5 | 4-10206A | Driver | |
| 6 | 4-10207A | Ring | |
| 7 | 4-10186A | Ring | |
| 8 | 4-11725A | Pipe | |
| 9 | 4-14118A | Washer | |
| 10 | 4-5160580056 | Fluid motor | |
| 11 | 4-9501001040 | Gear | |
| 12 | 4-9550000030 | Fluid motor | |
| 15 | 4-9512000363 | Clutch | |
| 16 | 4-5462010015 | Bearing | |
| 17 | 4-9200000030 | Rubber mount | |
| 20 | 4-5462110039 | Nut | |
| 21 | 4-5462110155 | Plate | |
| 23 | 4-6160141043 | O-ring | |
| 24 | 4-6160070371 | Gasket | |
| 27 | 4-3002516050 | Hexagon head screw | |
| 28 | 4-3002516045 | Hexagon head screw | |
| 29 | 4-3002512035 | Hexagon head screw | |
| 31 | 4-3600012025 | Hexagon head screw | |
| 32 | 4-3114306020 | Socket head cap screw | |
| 33 | 4-3002510035 | БОЛТ | |
| 35 | 4-3530020120 | Nut | |
| 36 | 4-3048500100 | Hexagon nut | |
| 38 | 4-3900017160 | Spring washer | |
| 39 | 4-3900017120 | Spring washer | |
| 40 | 4-3170600100 | Washer | |
| 41 | 4-3170600130 | Washer | |
| 44 | 4-5531020063 | Connector | |
| 45 | 4-5160650060 | Connector | |
| 46 | 4-5358570011 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
