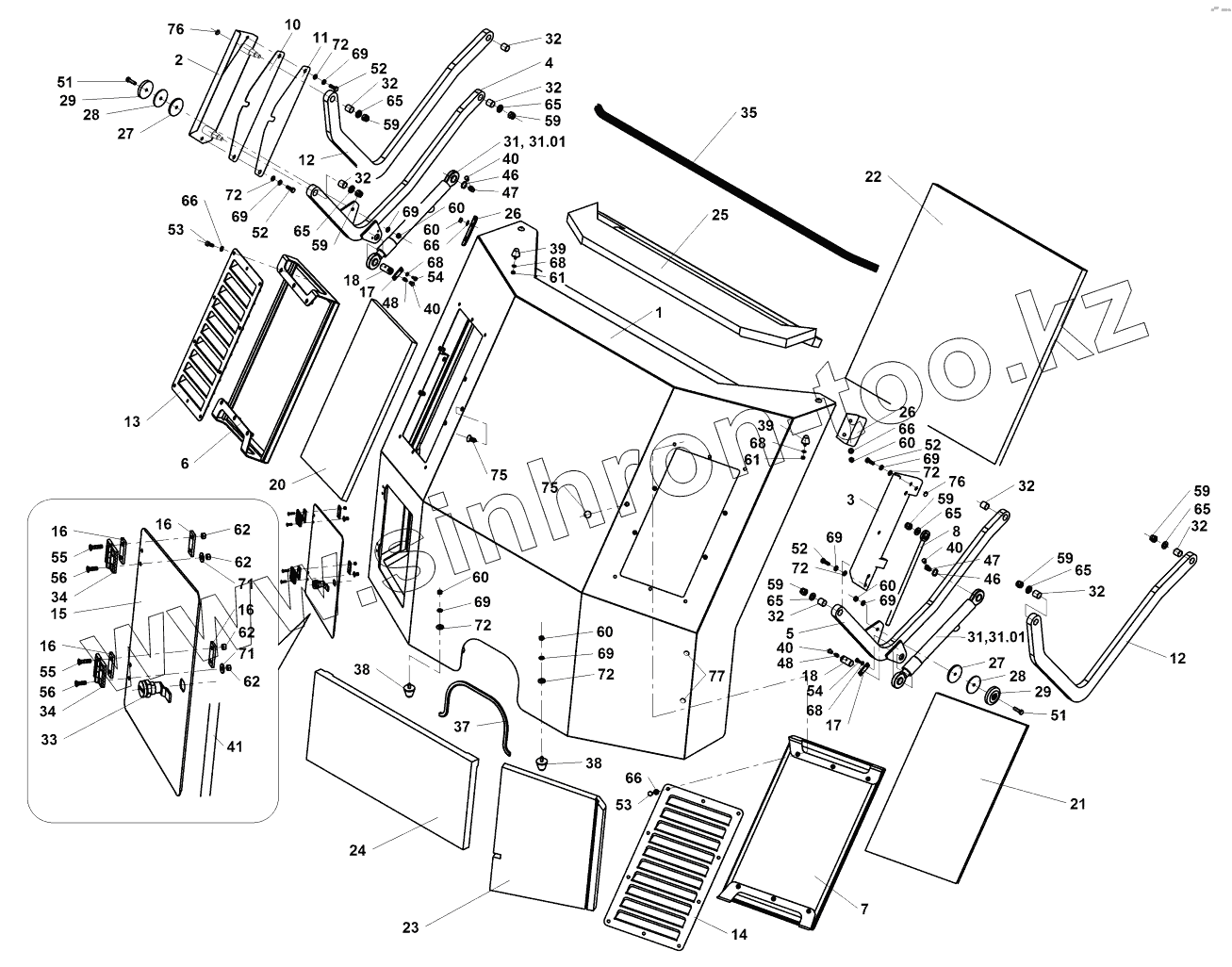

Каталог запасных частей к технике: Ammann AV 70X. Cover hood
1
2
3
4
5
6
7
8
10
11
12
12
13
14
15
16
16
16
16
17
17
18
18
20
21
22
23
24
25
26
26
27
27
28
28
29
29
31
31
31.01
31.01
32
32
32
32
32
32
32
32
33
34
34
35
37
38
38
39
39
40
40
40
40
41
46
46
47
47
48
48
51
51
52
52
52
52
53
53
54
54
55
55
56
56
59
59
59
59
59
59
59
60
60
60
60
60
60
61
61
62
62
62
62
65
65
65
65
65
65
65
66
66
66
66
68
68
68
68
69
69
69
69
69
69
69
69
71
71
72
72
72
72
72
72
75
75
76
76
77
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-11090A | 4-11090A | Covering hood | |
| 1 | 4-11092A | Covering hood | |
| 2 | 4-11096A | Bracket | |
| 3 | 4-11097A | Bracket | |
| 4 | 4-07714A | Arm | |
| 5 | 4-07715A | Arm | |
| 6 | 4-07749A | Diaphragm | |
| 7 | 4-07750A | Diaphragm | |
| 8 | 4-09522A | Supporting pillar | |
| 10 | 4-14626A | Plate | |
| 11 | 4-14627A | Plate | |
| 12 | 4-07718A | Arm | |
| 13 | 4-07724A | Grate | |
| 14 | 4-07725A | Grate | |
| 15 | 4-07757A | Door | |
| 16 | 4-03841A | Washer | |
| 17 | 4-03827A | Plate | |
| 18 | 4-03825A | Bolt | |
| 20 | 4-07762A | Insulation | |
| 21 | 4-07763A | Insulation | |
| 22 | 4-07761A | Hood insulation | |
| 23 | 4-14628A | Insulation | |
| 24 | 4-14629A | Insulation | |
| 25 | 4-08764A | Insulation | |
| 26 | 4-07764A | Rubber guard plate | |
| 27 | 4-11020A | Washer | |
| 28 | 4-11021A | Washer | |
| 29 | 4-11018A | Washer | |
| 31 | 4-5451180169 | Hydraulic cylinder | |
| 31.01 | 1259042 | Sealing kit | |
| 32 | 4-3910001820 | Bushing | |
| 33 | 4-9500001016 | Tongue lock | |
| 34 | 4-5358010501 | Hinge | |
| 35 | 4-09633A | Profile | |
| 37 | 4-6150020021 | Rubber profile | |
| 38 | 4-6160070612 | Rubber mount | |
| 39 | 4-6160081476 | Rubber mount | |
| 40 | 4-5358030042 | Plug | |
| 41 | 4-11559A | Sealing tape | |
| 46 | 4-5535010020 | Circlip | |
| 47 | 4-5536210001 | Greasing nipple | |
| 48 | 4-5536210003 | СМАЗОЧНАЯ ГОЛОВКА | |
| 51 | 4-3002508030 | Hexagon head screw | |
| 52 | 4-3002508025 | Hexagon head screw | |
| 53 | 4-3002508020 | Hexagon head screw | |
| 54 | 4-3002506012 | Hexagon head screw | |
| 55 | 4-3115505020 | Oval head countersunk screw | |
| 56 | 4-3115505016 | Oval head countersunk screw | |
| 59 | 4-3149200120 | Nut | |
| 60 | 4-3048500080 | Hexagon nut | |
| 61 | 4-3048500060 | Hexagon nut | |
| 62 | 4-3048500050 | Hexagon nut | |
| 65 | 4-3170600130 | Washer | |
| 66 | 4-3170200084 | ШАЙБА | |
| 68 | 4-3900017060 | Spring washer | |
| 69 | 4-3900017080 | Spring washer | |
| 71 | 4-3172900055 | Washer | |
| 72 | 4-3172900090 | Washer | |
| 75 | 4-5358570069 | Clip | |
| 76 | 4-5358570068 | Plug | |
| 77 | 4-5358570032 | Plug |
