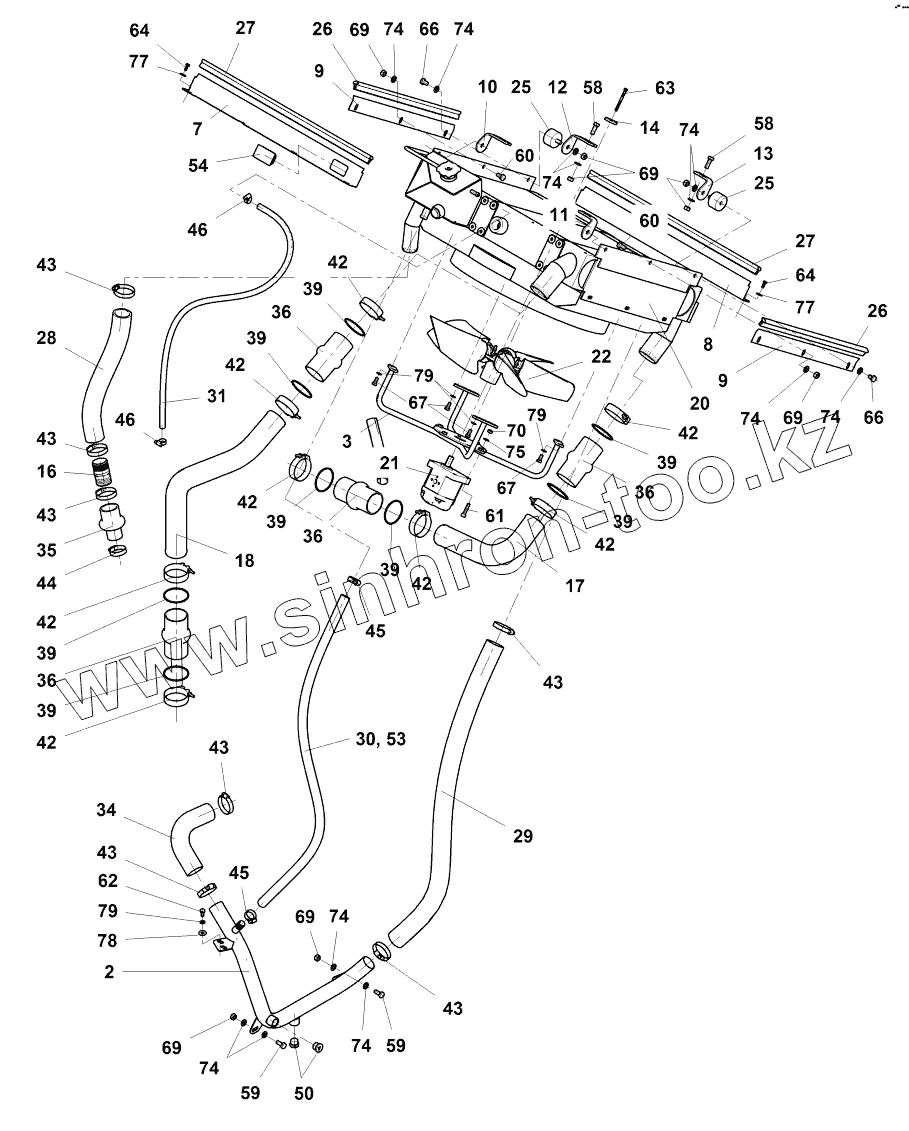

Каталог запасных частей к технике: Ammann AV 70X. Cooling system
2
3
7
8
9
9
10
11
12
13
14
16
17
18
20
21
22
25
25
26
26
27
27
28
29
30
31
34
35
36
36
36
36
39
39
39
39
39
39
39
39
42
42
42
42
42
42
42
42
43
43
43
43
43
43
43
44
45
45
46
46
50
53
54
58
58
59
59
60
60
61
62
63
64
64
66
66
67
67
69
69
69
69
69
70
74
74
74
74
74
74
74
74
74
75
77
77
78
79
79
79
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-07680A | 4-07680A | Cooling system | |
| 2 | 4-07987A | Pipe | |
| 3 | 4-09673A | Holder | |
| 7 | 4-11441A | Bar | |
| 8 | 4-07688A | Bar | |
| 9 | 4-11442A | Plate | |
| 10 | 4-07690A | Radiator bracket | |
| 11 | 4-07691A | Radiator bracket | |
| 12 | 4-07693A | Radiator bracket | |
| 13 | 4-07692A | Radiator bracket | |
| 14 | 4-08897A | Washer | |
| 16 | 4-11443A | Pipe | |
| 17 | 4-11053A | Pipe | |
| 18 | 4-11054A | Pipe | |
| 20 | 4-9906000002 | Radiator | |
| 21 | 4-9501000121 | Fluid motor | |
| 22 | 1184355 | Fan | |
| 25 | 4-6160070626 | Rubber mount | |
| 26 | 4-09581A | Profile | |
| 27 | 4-09582A | Profile | |
| 28 | 4-07892A | Hose | |
| 29 | 4-07893A | Hose | |
| 30 | 4-07896A | Hose | |
| 31 | 4-07897A | Hose | |
| 34 | 4-6160084025 | Manifold | |
| 35 | 4-9200000095 | Reduction | |
| 36 | 4-6160084015 | Clutch | |
| 39 | 4-9541111103 | Ring | |
| 42 | 4-5531020029 | Hose clamp | |
| 43 | 4-5531020070 | Hose clamp | |
| 44 | 4-5531020086 | Hose clamp | |
| 45 | 4-5531020074 | Hose clamp | |
| 46 | 4-5531020073 | Hose clamp | |
| 50 | 4-5160670082 | Plug | |
| 53 | 4-5160580033 | ПРОКЛАДКА ЗАЩИТНЯ | |
| 54 | 1225144 | Plug | |
| 58 | 4-3002510030 | Hexagon head screw | |
| 59 | 4-3002510025 | Hexagon head screw | |
| 60 | 4-3002510020 | Hexagon head screw | |
| 61 | 4-3114308035 | БОЛТ | |
| 62 | 4-3002508016 | Hexagon head screw | |
| 63 | 4-3001506070 | Hexagon head screw | |
| 64 | 4-3002506016 | Hexagon head screw | |
| 66 | 4-3002510016 | Hexagon head screw | |
| 67 | 4-3002508018 | Hexagon head screw | |
| 69 | 4-3048500100 | Hexagon nut | |
| 70 | 4-3048500080 | Hexagon nut | |
| 74 | 4-3170600100 | Washer | |
| 75 | 4-3170600080 | Washer | |
| 77 | 4-3172900066 | Washer | |
| 78 | 4-3172900090 | Washer | |
| 79 | 4-3900017080 | Spring washer |
