Каталог запасных частей к технике: Ammann AV 70X. Cab part A
2
3
3
3
4
4
6
7
11
12
13
14
18
19
19
19
19
19
27
29
29
30
31
32
32
41
43
59
59
60
61
62
63
64
65
66
66
67
67
68
68
69
69
70
79
79
79
79
79
80
80
81
81
82
82
83
84
86
89
90
92
92
96
96
100
100
103
103
104
104
105
105
106
116
119
119
119
119
120
120
120
120
120
121
121
122
122
123
123
124
129
129
129
129
130
130
130
130
133
134
134
134
134
137
138
138
138
138
139
139
140
140
140
140
142
142
142
142
142
142
142
142
142
152
153
154
155
156
156
163
165
167
168
169
170
171

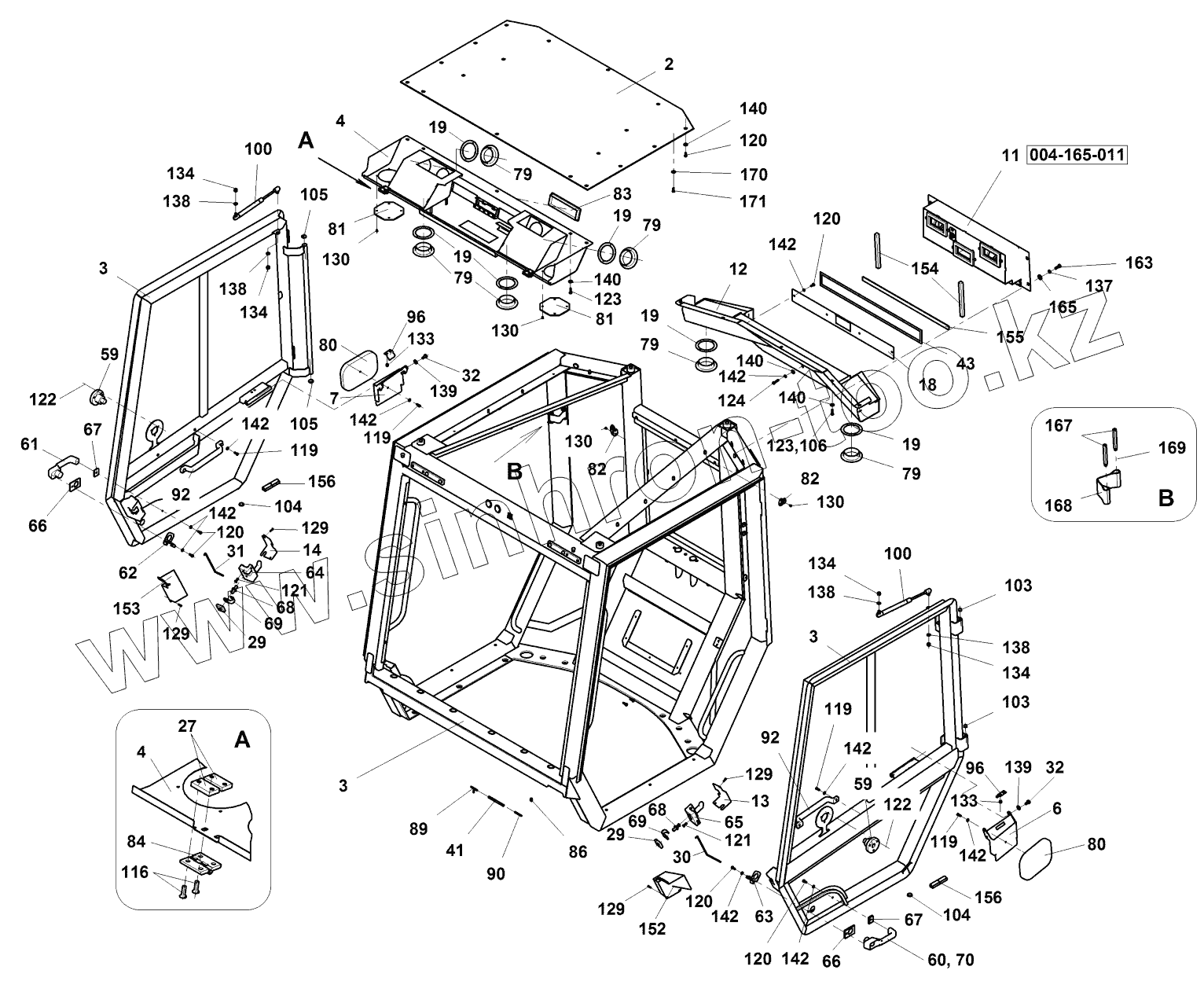

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-13000 | 4-13000 | Cabin | |
| 2 | 4-12756 | Padding | |
| 3 | 4-08101A | Cabin | |
| 4 | 4-14437 | Front cover | |
| 6 | 4-06083A | Limit stop | |
| 7 | 4-06084A | Limit stop | |
| 11 | 4-S12824_A | Ventilator | |
| 12 | 4-12763 | Cover | |
| 13 | 4-08197A | Cover | |
| 14 | 4-08312A | Cover | |
| 18 | 4-13603 | Plate | |
| 19 | 4-07136A | Washer | |
| 27 | 4-06172A | Plate | |
| 29 | 4-09357A | Nut | |
| 30 | 4-09207A | Pull rod | |
| 31 | 4-09208A | Pull rod | |
| 32 | 4-06087A | Screw | |
| 41 | 4-6150080004 | Hose | |
| 43 | 4-6120070106 | Adhesive tape | |
| 59 | 4-9500001003 | ДЕРЖАВКА | |
| 60 | 4-9500001004 | Crank | |
| 61 | 4-9500001005 | Crank | |
| 62 | 4-9500001006 | Lever | |
| 63 | 4-9500001007 | Lever | |
| 64 | 4-9500001008 | Door lock | |
| 65 | 4-9500001009 | Door lock | |
| 66 | 4-9500001010 | Washer | |
| 67 | 4-9500001011 | Washer | |
| 68 | 4-9500001012 | Bolt | |
| 69 | 4-9500001013 | Cover | |
| 70 | 4-9500001014 | Key | |
| 79 | 4-9200000002 | Ventilation nozzle | |
| 80 | 4-5358570045 | Armrest | |
| 81 | 4-5358010425 | Grate | |
| 82 | 4-9200000001 | Hook | |
| 83 | 4-5358010454 | Dummy plug | |
| 84 | 4-5358010501 | Hinge | |
| 86 | 4-6160100160 | ПРОХОДНОЙ ИЗОЛЯТ | |
| 89 | 4-5358020239 | РАСПРЕДЕЛ КОРОБКА | |
| 90 | 4-5531020051 | Clutch | |
| 92 | 4-6150030011 | Handle | |
| 96 | 4-4100030143 | Spring | |
| 100 | 4-5358020382 | Gas pressure spring | |
| 103 | 4-5358030042 | Plug | |
| 104 | 4-5358570046 | Plug | |
| 105 | 4-5358570060 | Plug | |
| 106 | 4-6150090092 | КОЖУХ | |
| 116 | 4-3115505016 | Oval head countersunk screw | |
| 119 | 4-3113106016 | Socket head cap screw | |
| 120 | 4-3002506016 | Hexagon head screw | |
| 121 | 4-3115106020 | Countersunk screw | |
| 122 | 4-3002506020 | Hexagon head screw | |
| 123 | 4-3002506025 | Hexagon head screw | |
| 124 | 4-3001506030 | Hexagon head screw | |
| 129 | 4-3123204016 | Plate screw | |
| 130 | 4-3123804010 | Screw | |
| 133 | 4-3149200060 | ГАЙКА | |
| 134 | 4-3149200080 | ГАЙКА | |
| 137 | 4-3900017080 | Spring washer | |
| 138 | 4-3170200084 | ШАЙБА | |
| 139 | 4-3170200105 | Washer | |
| 140 | 4-3172900066 | Washer | |
| 142 | 4-3900017060 | Spring washer | |
| 152 | 4-09257A | Cover | |
| 153 | 4-09258A | Cover | |
| 154 | 4-14213 | Gasket | |
| 155 | 4-15473 | Gasket | |
| 156 | 4-6150020020 | Rubber profile | |
| 163 | 4-3002508025 | Hexagon head screw | |
| 165 | 4-3172600084 | Washer | |
| 167 | 4-435471 | Bolt | |
| 168 | 4-6580050008 | Band | |
| 169 | 4-17562 | Washer | |
| 170 | 4-4100280045 | Washer | |
| 171 | 4-3115506020 | Oval head countersunk screw |
