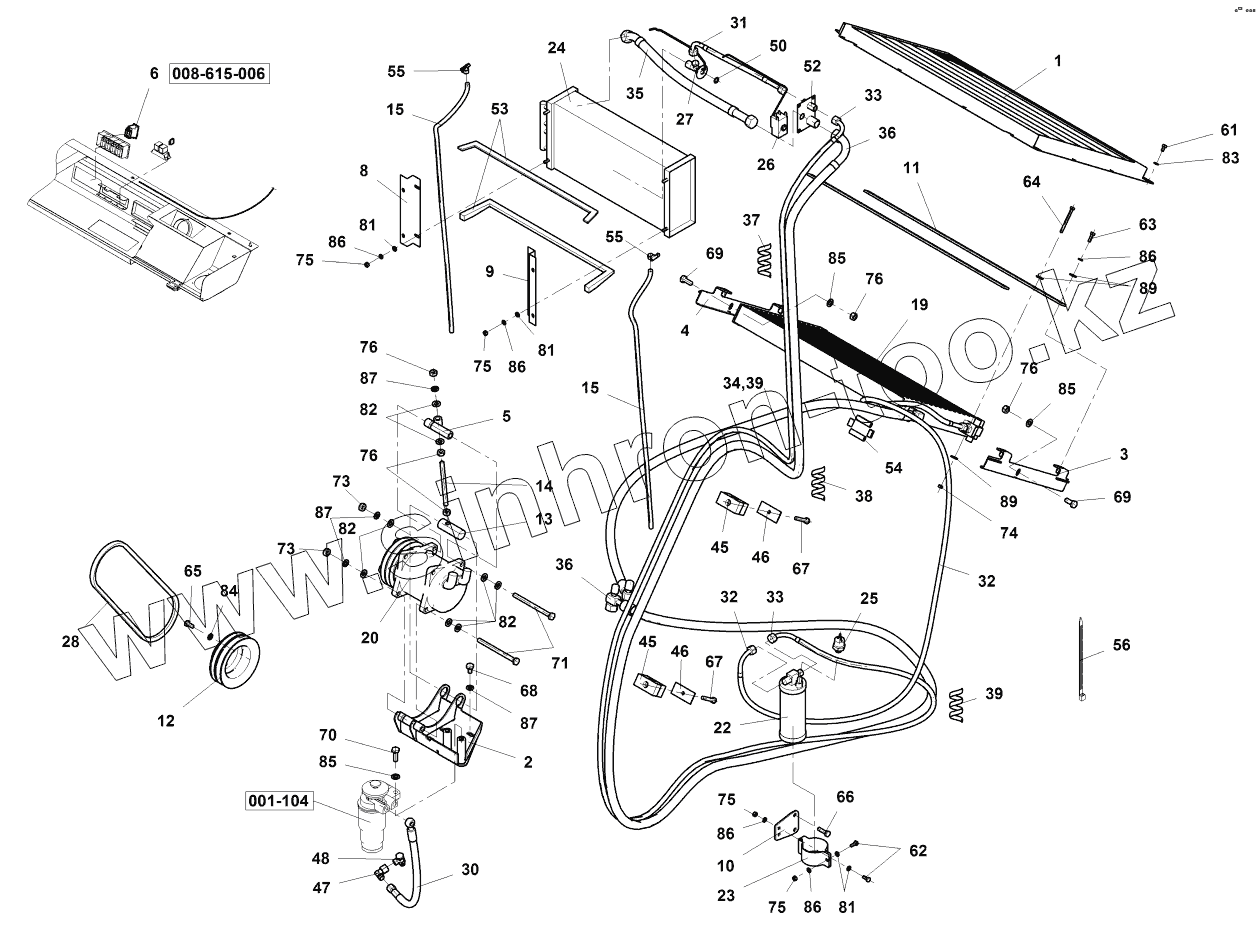

Каталог запасных частей к технике: Ammann AV 70X. Air conditioning system
1
2
3
4
5
6
8
9
10
11
12
13
14
15
15
19
20
22
23
24
25
26
27
28
30
31
32
32
33
33
34
35
36
36
37
38
39
39
45
45
46
46
47
48
50
52
53
54
55
55
56
61
62
63
64
65
66
67
67
68
69
69
70
71
73
73
74
75
75
75
75
76
76
76
76
81
81
81
82
82
82
83
84
85
85
85
86
86
86
86
86
87
87
87
89
89
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-14282 | 4-14282 | Air conditioning system | |
| 1 | 4-11507A | Cover | |
| 2 | 4-07941A | Holder | |
| 3 | 4-15418 | Holder | |
| 4 | 4-15420 | Holder | |
| 5 | 4-12205A | Holder | |
| 6 | 4-S211596 | Electrical installation | |
| 8 | 4-12792A | Holder | |
| 9 | 4-12791A | Holder | |
| 10 | 4-12209A | Plate | |
| 11 | 4-15422 | Plate | |
| 12 | 4-07647A | V-belt pulley | |
| 13 | 4-12207A | Bolt | |
| 14 | 4-12208A | Threaded rod | |
| 15 | 4-15152 | Hose | |
| 19 | 1195342 | Condenser | |
| 20 | 1195341 | Air conditioning compressor | |
| 22 | 1185432 | Water separator | |
| 23 | 1185030 | Sleeve | |
| 24 | 1185430 | Block | |
| 25 | 1185469 | Press switch | |
| 26 | 1185203 | Thermostat | |
| 27 | 1185202 | Valve | |
| 28 | 4-6160120105 | V-belt | |
| 30 | 4-5160572387 | Hydraulic hose | |
| 31 | 1185201 | Hose | |
| 32 | 4-5161570018 | Hydraulic hose | |
| 33 | 4-5161570016 | Hydraulic hose | |
| 34 | 4-5161570017 | Hydraulic hose | |
| 35 | 1185200 | Hose | |
| 36 | 4-5161570013 | Hose | |
| 37 | 4-5160580043 | Protection hose | |
| 38 | 4-5160572649 | Protection hose | |
| 39 | 4-5160580030 | Protection hose | |
| 45 | 4-5358050048 | ЗАЖИМ | |
| 46 | 4-5358050047 | Cap | |
| 47 | 4-5160670076 | Adjustable male stud run | |
| 48 | 4-5160680037 | Screwed connection | |
| 50 | 1185206 | O-ring | |
| 52 | 1185199 | Leadthrough | |
| 53 | 4-6120070105 | Gasket | |
| 54 | 4-17866 | Profile | |
| 55 | 4-5531020002 | Hose clamp | |
| 56 | 4-6150051016 | Staple strip | |
| 61 | 4-3002506012 | Hexagon head screw | |
| 62 | 4-3002506016 | Hexagon head screw | |
| 63 | 4-3002506020 | Hexagon head screw | |
| 64 | 1202512 | Hexagon head screw | |
| 65 | 4-3002508018 | Hexagon head screw | |
| 66 | 4-3002508030 | Hexagon head screw | |
| 67 | 4-3002508045 | Hexagon head screw | |
| 68 | 4-3002510016 | Hexagon head screw | |
| 69 | 4-3002510025 | Hexagon head screw | |
| 70 | 4-3002510030 | Hexagon head screw | |
| 71 | J901881 | Hexagon head screw | |
| 73 | 4-3530021100 | Nut | |
| 74 | 1219008 | Nut | |
| 75 | 4-3048500060 | Hexagon nut | |
| 76 | 4-3048500100 | Hexagon nut | |
| 81 | 4-3170200064 | ШАЙБА | |
| 82 | 4-3170200105 | Washer | |
| 83 | 4-3170600064 | Washer | |
| 84 | 4-3170600080 | Washer | |
| 85 | 4-3170600100 | Washer | |
| 86 | 4-3900017060 | Spring washer | |
| 87 | 4-3900017100 | Spring washer | |
| 89 | 4-3172900066 | Washer |
