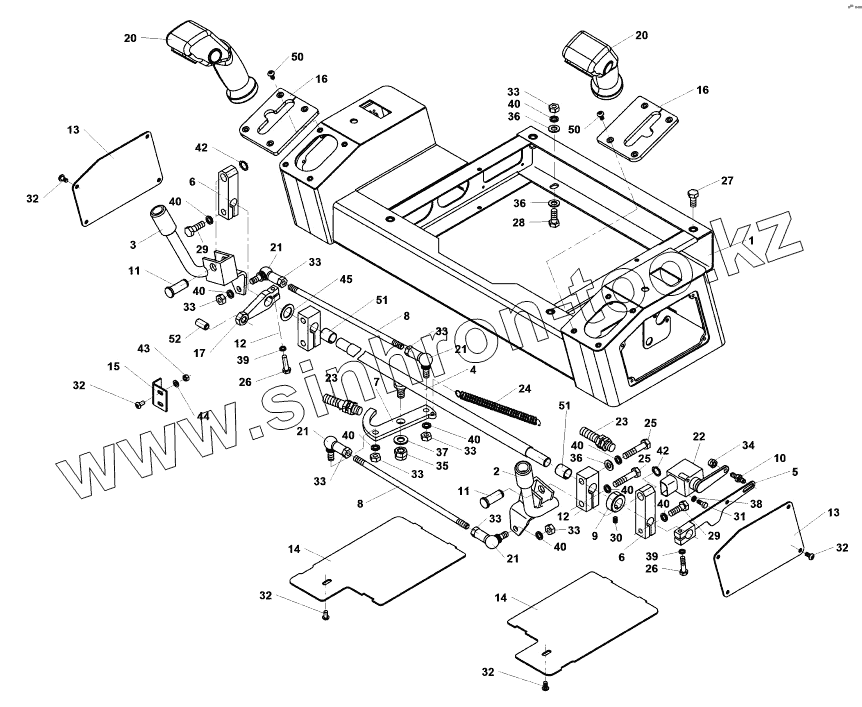

Каталог запасных частей к технике: Ammann AV110X. Travel controls
1
2
3
4
5
6
6
7
8
8
9
10
11
11
12
12
13
13
14
14
15
16
16
17
20
20
21
21
21
21
22
23
23
24
25
25
26
26
27
28
29
29
30
31
32
32
32
32
32
33
33
33
33
33
33
33
33
33
34
35
36
36
36
37
38
39
39
40
40
40
40
40
40
40
40
40
42
42
43
44
45
50
50
51
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-04423А | 4-04423А | Powertrain | |
| 1 | 4-04424А | Housing | |
| 2 | 4-04425А | Lever | |
| 3 | 4-04426А | Lever | |
| 4 | 4-04427А | Connecting rod | |
| 5 | 4-04457А | Arm | |
| 6 | 4-04452А | Lever | |
| 7 | 4-04453А | Rocker | |
| 8 | 4-04454А | Pull rod | |
| 9 | 4-04456А | Ring | |
| 10 | 4-04461А | Pin | |
| 11 | 4-04462А | Bolt | |
| 12 | 4-04463А | Brake | |
| 13 | 4-04464А | Cover | |
| 14 | 4-04584А | Cover | |
| 15 | 4-11544А | Plate | |
| 16 | 4-04690А | Pipe | |
| 17 | 4-11545А | Lever | |
| 20 | 4-9200600013 | Head piece | |
| 21 | 4-9502000961 | Joint | |
| 22 | 4-9540000143 | Angle transmitter | |
| 23 | 4-5422120023 | Sensor | |
| 24 | 4-4100020039 | Tension spring | |
| 25 | 4-3001508040 | Hexagon head screw | |
| 26 | 4-3002506025 | Hexagon head screw | |
| 27 | 4-3002508018 | Hexagon head screw | |
| 28 | 4-3798408020 | Socket head cap screw | |
| 29 | 4-3002508025 | Hexagon head screw | |
| 30 | 4-3118106008 | Adjusting screw | |
| 31 | 4-3113105012 | Socket head cap screw | |
| 32 | 4-3738005010 | Oval head screw | |
| 33 | 4-3048500080 | Hexagon nut | |
| 34 | 4-3149200060 | ГАЙКА | |
| 35 | 4-3149200100 | Nut | |
| 36 | 4-3170200084 | ШАЙБА | |
| 37 | 4-3170200105 | Washer | |
| 38 | 4-3174000051 | Lock washer | |
| 39 | 4-3174000061 | Lock washer | |
| 40 | 4-3174000082 | Lock washer | |
| 42 | 4-5535010012 | Circlip | |
| 43 | 4-3048500050 | Hexagon nut | |
| 44 | 4-3170200053 | Washer | |
| 45 | 4-3170200170 | Washer | |
| 50 | 4-3738005016 | Oval head screw | |
| 51 | 4-3910001223 | Bushing | |
| 52 | 4-5358210111 | Spring pin |
