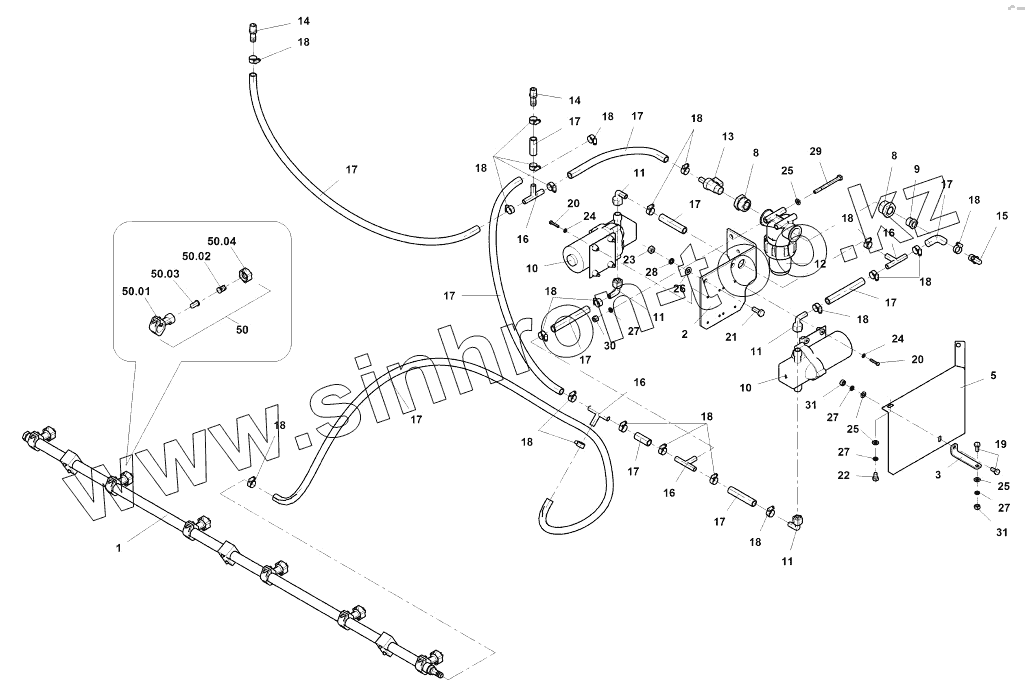

Каталог запасных частей к технике: Ammann AV110X. Spraying
1
2
3
5
8
8
9
10
10
11
11
11
11
12
13
14
14
15
16
16
16
16
17
17
17
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
20
21
22
23
24
24
25
25
25
26
27
27
27
27
28
29
30
31
31
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-03770А | 4-03770А | Showering | |
| 1 | 4-02792А | Spraydown pipe | |
| 2 | 4-10333А | Plate | |
| 3 | 4-11161А | Angle | |
| 5 | 4-05145А | Cover | |
| 8 | 4-5325110014 | Reduction | |
| 9 | 4-5325110009 | Reduction | |
| 10 | 4-9500600034 | Water pump | |
| 11 | 4-9500600035 | Connection | |
| 12 | 4-5358520088 | Water filter | |
| 13 | 4-5326020006 | Valve | |
| 14 | 4-5531020055 | Connector | |
| 15 | 4-5531020052 | Connector | |
| 16 | 4-5531020054 | Connector | |
| 17 | 4-6160090555 | Hose | |
| 18 | 4-5531020002 | Hose clamp | |
| 19 | 4-3002508018 | Hexagon head screw | |
| 20 | 4-3113105025 | БОЛТ | |
| 21 | 4-3002510025 | Hexagon head screw | |
| 22 | 4-3002508014 | Hexagon head screw | |
| 23 | 4-3048500100 | Hexagon nut | |
| 24 | 4-3170200053 | Washer | |
| 25 | 4-3170200084 | ШАЙБА | |
| 26 | 4-3170200105 | Washer | |
| 27 | 4-3174000082 | Lock washer | |
| 28 | 4-3174000102 | Lock washer | |
| 29 | 4-3001508090 | Hexagon head screw | |
| 30 | 4-3149200080 | ГАЙКА | |
| 31 | 4-3048500080 | Hexagon nut | |
| 50 | 4-691024 | Repair kit | |
| 50.01 | 1202271 | Nozzle holder | |
| 50.02 | 4-6150090029 | Nozzle | |
| 50.03 | 4-6150090034 | Water filter | |
| 50.04 | 4-6150090035 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
