Каталог запасных частей к технике: Ammann AV110X. Rear drum hydraulic system
1
1
2
5
6
6.01
9
10
11
14
15
16
17
20
22
22
24
24
27
30
31
31
32
32
33
33
36
36
36
37
38
38
38
41

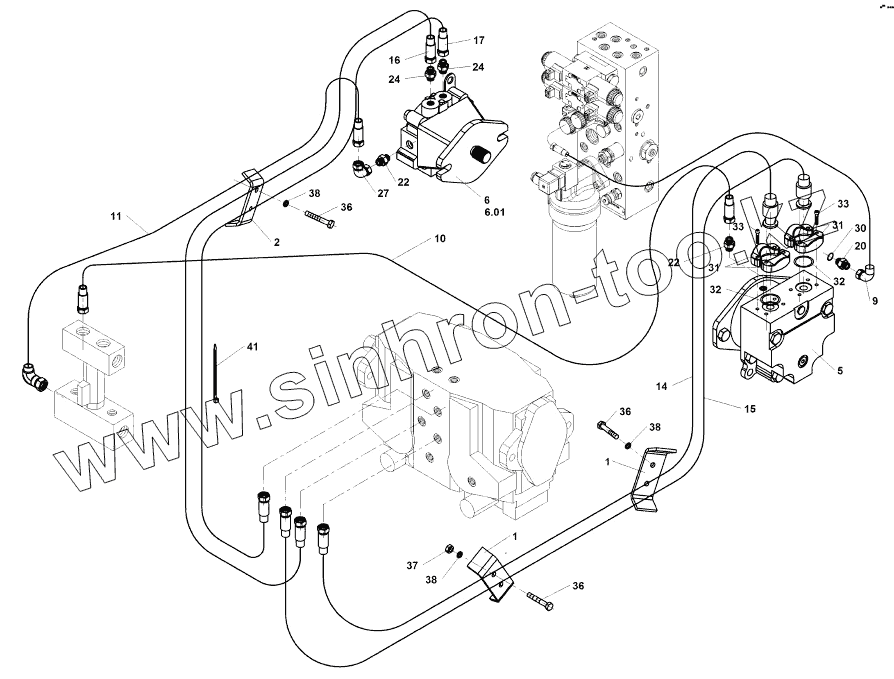

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107286 | 4-107286 | Drum hydraulics | |
| 1 | 4-04127А | Clip | |
| 2 | 4-04128А | Clip | |
| 5 | 4-9540000150 | Fluid motor | |
| 6 | 4-9500100046 | Fluid motor | |
| 6.01 | 1-ЕТ00239 | Sealing kit | |
| 9 | 4-5160572430 | Hydraulic hose | |
| 10 | 4-5160572431 | Hydraulic hose | |
| 11 | 4-5160572432 | Hydraulic hose | |
| 14 | 4-5160572433 | Hydraulic hose | |
| 15 | 4-5160572041 | Hydraulic hose | |
| 16 | 4-5160571733 | Hydraulic hose | |
| 17 | 4-5160572213 | Hydraulic hose | |
| 20 | 4-5160571799 | Connector | |
| 22 | 4-5160650033 | Connector | |
| 24 | 4-5160650034 | Connector | |
| 27 | 4-5160670030 | МУФТА | |
| 30 | 4-6090010484 | Sealing ring | |
| 31 | 4-5160580017 | Yoke | |
| 32 | 4-6160142203 | O-ring | |
| 33 | 4-3506771634 | Hexagon head screw | |
| 36 | 4-3001508050 | Hexagon head screw | |
| 37 | 4-3048500080 | Hexagon nut | |
| 38 | 4-3174000082 | Lock washer | |
| 41 | 4-6150051019 | Staple strip |
