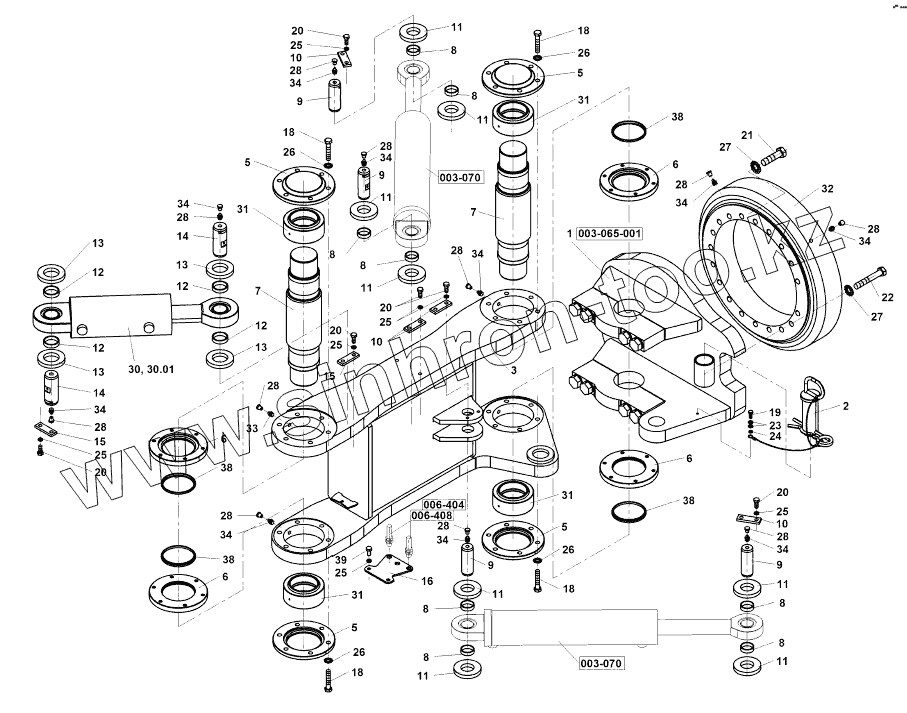

Каталог запасных частей к технике: Ammann AV110X. Joint
1
2
3
5
5
5
5
6
6
6
6
7
7
8
8
8
8
8
8
8
8
9
9
9
9
10
10
10
11
11
11
11
11
11
11
11
12
12
12
12
13
13
13
13
14
14
15
15
16
18
18
18
18
19
20
20
20
20
20
21
22
23
24
25
25
25
25
25
25
26
26
26
26
27
27
28
28
28
28
28
28
28
28
28
28
28
30
31
31
31
31
32
33
34
34
34
34
34
34
34
34
34
34
38
38
38
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-07461А | 4-07461А | Joint | |
| 1 | 4-S03563A | Steering suspension | |
| 2 | 4-03906А | Bolt | |
| 3 | 4-07999А | Arm | |
| 5 | 4-02234А | Cap | |
| 6 | 4-02237А | Cap | |
| 7 | 4-02241А | Bolt | |
| 8 | 4-02253А | Ring | |
| 9 | 4-02257А | Bolt | |
| 10 | 4-02258А | Plate | |
| 11 | 4-04051А | Ring | |
| 12 | 4-08003А | Ring | |
| 13 | 4-08004А | Ring | |
| 14 | 4-08005А | Bolt | |
| 15 | 4-08006А | Plate | |
| 16 | 4-09811А | Plate | |
| 18 | 4-3001510055 | Hexagon head screw | |
| 19 | 4-3002506016 | Hexagon head screw | |
| 20 | 4-3002508020 | Hexagon head screw | |
| 21 | 4-3002514060 | Hexagon head screw | |
| 22 | 4-3002514080 | Hexagon head screw | |
| 23 | 4-3170200064 | ШАЙБА | |
| 24 | 4-3174000061 | Lock washer | |
| 25 | 4-3174000082 | Lock washer | |
| 26 | 4-3900017100 | Spring washer | |
| 27 | 4-3900017140 | Spring washer | |
| 28 | 4-5358030042 | Plug | |
| 30 | 4-5451180171 | Hydraulic cy inder | |
| 30.01 | 1194316 | Sealing kit | |
| 31 | 4-5462000017 | Bearing | |
| 32 | 4-5462000039 | Bearing | |
| 33 | 4-5536210001 | Greasing nipple | |
| 34 | 4-5536210006 | Greasing nipple | |
| 38 | 4-6160142092 | Stripper ring | |
| 39 | 4-3002508016 | Hexagon head screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
