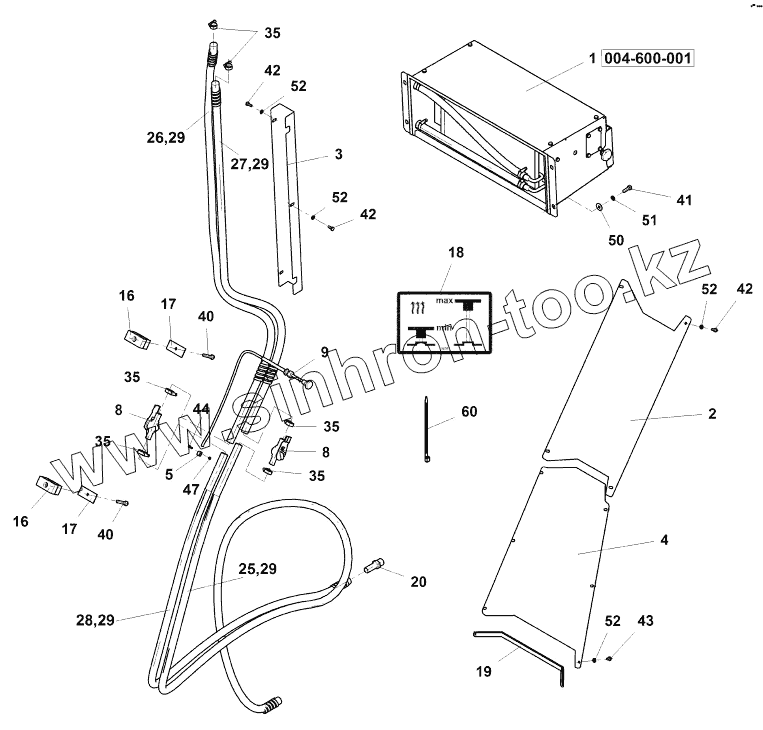

Каталог запасных частей к технике: Ammann AV110X. Heating
1
3
4
5
8
8
9
16
16
17
17
18
19
20
25
26
27
28
29
29
29
29
35
35
35
35
35
40
40
41
42
42
42
43
44
47
50
51
52
52
52
52
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-15505 | 4-15505 | Heater | |
| 1 | 4-S12779 | Housing | |
| 3 | 4-05821А | Cover | |
| 4 | 4-04714А | Cover | |
| 5 | 4-437968 | Clamping device | |
| 8 | 4-9200000201 | Valve | |
| 9 | 4-9500000336 | Pull rod | |
| 16 | 4-5358050045 | ОБОЙМА | |
| 17 | 4-5358050047 | Cap | |
| 18 | 4-6531012638 | Symbol | |
| 19 | 4-11091А | Rubber profile | |
| 20 | 4-5160650114 | Pipe | |
| 25 | 4-15534 | Hose | |
| 26 | 4-11082А | Hose | |
| 27 | 4-11083А | Hose | |
| 28 | 4-15535 | Hose | |
| 29 | 4-5160580030 | Protection hose | |
| 35 | 4-5531020003 | Hose clamp | |
| 40 | 4-3002508045 | Hexagon head screw | |
| 41 | 4-3002508025 | Hexagon head screw | |
| 42 | 4-3002506016 | Hexagon head screw | |
| 43 | 4-3002506010 | Hexagon head screw | |
| 44 | 4-3110304010 | Hexagon head screw | |
| 47 | 4-3140100040 | Hexagon nut | |
| 50 | 4-3172600084 | Washer | |
| 51 | 4-3900017080 | Spring washer | |
| 52 | 4-3900017060 | Spring washer | |
| 60 | 4-6150051016 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
