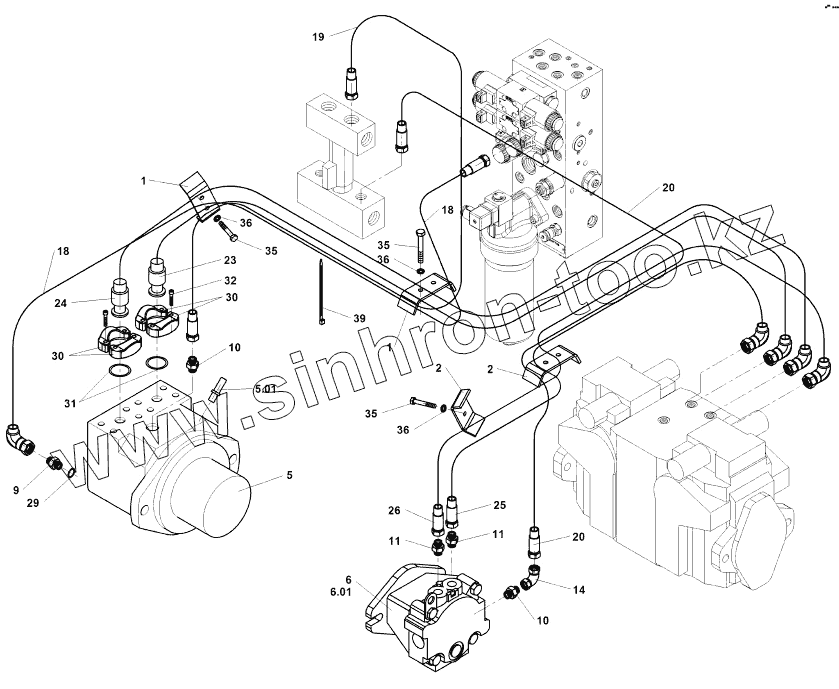

Каталог запасных частей к технике: Ammann AV110X. Front drum hydraulic system
1
1
2
2
5
5.01
6
6.01
9
10
10
11
11
14
18
18
19
20
20
23
24
25
26
29
30
30
31
32
35
35
35
36
36
36
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107281 | 4-107281 | Drum hydraulics | |
| 1 | 4-04127А | Clip | |
| 2 | 4-04128А | Clip | |
| 5 | 4-9540000149 | Fluid motor | |
| 5.01 | 1241141 | Engine speed sensor | |
| 6 | 4-9500100046 | Fluid motor | |
| 6.01 | 1-ЕТ00239 | Sealing kit | |
| 9 | 4-5160571799 | Connector | |
| 10 | 4-5160650033 | Connector | |
| 11 | 4-5160650034 | Connector | |
| 14 | 4-5160670030 | МУФТА | |
| 18 | 4-5160571704 | Hydraulic hose | |
| 19 | 4-5160571712 | Hydraulic hose | |
| 20 | 4-5160571709 | Hydraulic hose | |
| 23 | 4-5160571736 | Hydraulic hose | |
| 24 | 4-5160571735 | Hydraulic hose | |
| 25 | 4-5160571714 | Hydraulic hose | |
| 26 | 4-5160571715 | Hydraulic hose | |
| 29 | 4-6090010484 | Sealing ring | |
| 30 | 4-5160580017 | Yoke | |
| 31 | 4-6160142203 | O-ring | |
| 32 | 4-3506771634 | Hexagon head screw | |
| 35 | 4-3001508050 | Hexagon head screw | |
| 36 | 4-3174000082 | Lock washer | |
| 39 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
