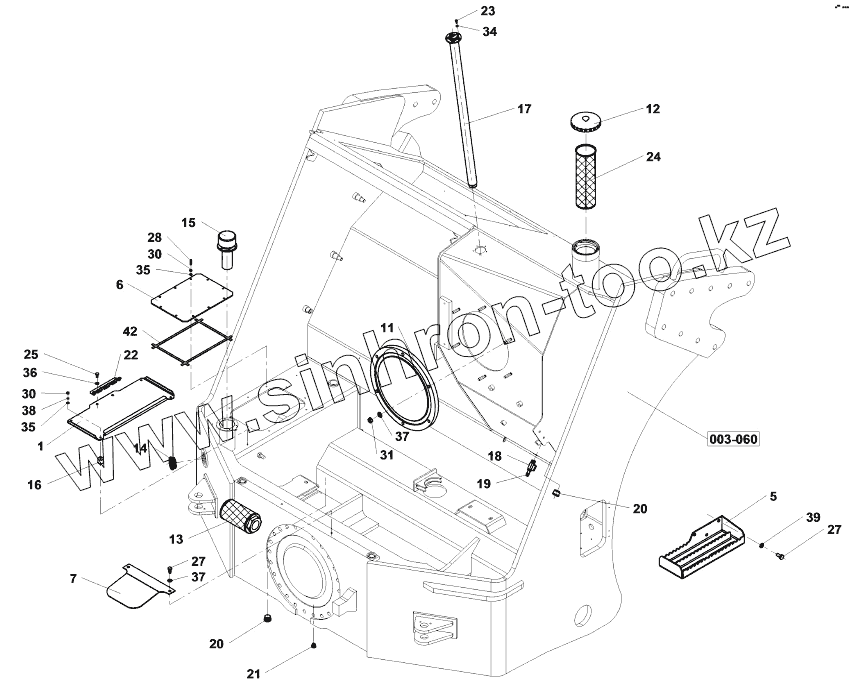

Каталог запасных частей к технике: Ammann AV110X. Frame accessories
1
5
6
7
11
12
13
14
15
16
17
18
19
20
20
21
22
24
25
27
27
28
30
30
31
34
35
35
35
35
35
35
36
37
37
38
39
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-02720А | 4-02720А | Frame accessories | |
| 1 | 4-02742А | Plate | |
| 5 | 4-11019А | Tread | |
| 6 | 4-02746А | Plate | |
| 7 | 4-04825А | Plate | |
| 11 | 4-9512000353 | Cover | |
| 12 | 4-9500000320 | Plug | |
| 13 | 4-5451050018 | Strainer | |
| 14 | 4-5536860012 | Inspection glass | |
| 15 | 4-5358500002 | Filler neck | |
| 16 | 4-6160070611 | Rubber mount | |
| 17 | 4-5422080022 | Float | |
| 18 | 4-9540000015 | Cone | |
| 19 | 4-438937 | Connector | |
| 20 | 4-5160670073 | Sealing plug | |
| 21 | 4-5160670083 | Plug | |
| 22 | 4-5358010095 | Holder | |
| 23 | 4-3002505020 | Hexagon head screw | |
| 24 | 4-9500000353 | Screen | |
| 25 | 4-3002508014 | Hexagon head screw | |
| 27 | 4-3002510020 | Hexagon head screw | |
| 28 | 4-3029506016 | Stud bolt | |
| 30 | 4-3048500060 | Hexagon nut | |
| 31 | 4-3048500100 | Hexagon nut | |
| 34 | 4-3170200053 | Washer | |
| 35 | 4-3170200064 | ШАЙБА | |
| 35 | 4-3170200064 | ШАЙБА | |
| 36 | 4-3170200084 | ШАЙБА | |
| 37 | 4-3170200105 | Washer | |
| 38 | 4-3174000061 | Lock washer | |
| 39 | 4-3900017100 | Spring washer | |
| 42 | 4-5422250006 | Sealing tape |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
