Каталог запасных частей к технике: Ammann AV110X. Edge cutter
1
2
5
6
7
8
11
12
13
14
15
16
21
22
23
24
24
25
26
27
28
29
29
32
33
34
35
37
38
39
41
42
43
44
45
45
47
48
51
52
53
54
55
56
57
59
59
61
62
63
63
64
64
65
66
74
75
75

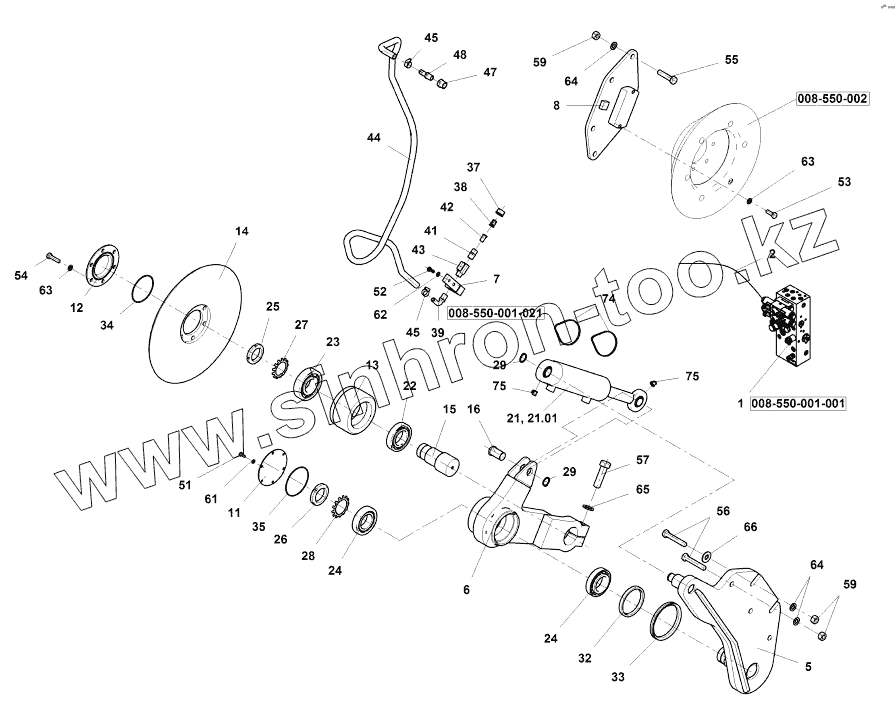

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-06065А | 4-06065А | Edge cutter | |
| 1 | 4-S210958В | Edge cutter hydraulics | |
| 2 | 4-324413 | Cable harness | |
| 5 | 4-06105А | Plate | |
| 6 | 4-06106А | Arm | |
| 7 | 4-06137А | Holder | |
| 8 | 4-06107А | Holder | |
| 11 | 4-06108А | Cap | |
| 12 | 4-06109А | Cap | |
| 13 | 4-436821 | Hub | |
| 14 | 4-06110А | Washer | |
| 15 | 4-06111А | Bolt | |
| 16 | 4-436819 | Bolt | |
| 21 | 4-5451180030 | Hydraulic cylinder | |
| 21.01 | 4-8300610087 | Sealing kit | |
| 22 | 4-5462010126 | ПОДШИПНИК | |
| 23 | 4-5462010160 | Bearing | |
| 24 | 4-5462270110 | Bearing | |
| 25 | 4-5462110013 | Nut | |
| 26 | 4-5462110015 | ГАЙКА | |
| 27 | 4-5462110127 | Plate | |
| 28 | 4-5462110130 | СТОПОР | |
| 29 | 4-5535010025 | Circlip | |
| 32 | 4-6160070297 | Gasket | |
| 33 | 4-6160142084 | Ring | |
| 34 | 4-6160142094 | O-ring | |
| 35 | 4-6160142093 | O-ring | |
| 37 | 4-6150090023 | Nut | |
| 38 | 4-6150090029 | Nozzle | |
| 39 | 4-5531020052 | Connector | |
| 41 | 4-06535А | Screwed connection | |
| 42 | 4-6150090032 | Valve | |
| 43 | 4-9540000015 | Cone | |
| 44 | 4-6160090555 | Hose | |
| 45 | 4-5531020001 | СКОБА | |
| 47 | 4-5325110009 | Reduction | |
| 48 | 4-5531020055 | Connector | |
| 51 | 4-3002506016 | Hexagon head screw | |
| 52 | 4-3002508020 | Hexagon head screw | |
| 53 | 4-3002510030 | Hexagon head screw | |
| 54 | 4-3002510040 | Hexagon head screw | |
| 55 | 4-3002514060 | Hexagon head screw | |
| 56 | 4-3002514080 | Hexagon head screw | |
| 57 | 4-3002520070 | Hexagon head screw | |
| 59 | 4-3048500140 | ГАЙКА | |
| 61 | 4-3900017060 | Spring washer | |
| 62 | 4-3900017080 | Spring washer | |
| 63 | 4-3900017100 | Spring washer | |
| 64 | 4-3900017140 | Spring washer | |
| 65 | 4-3900017200 | Spring washer | |
| 66 | 4-3679600150 | Strain washer | |
| 74 | 4-6150051016 | Staple strip | |
| 75 | 4-5358030042 | Plug |
