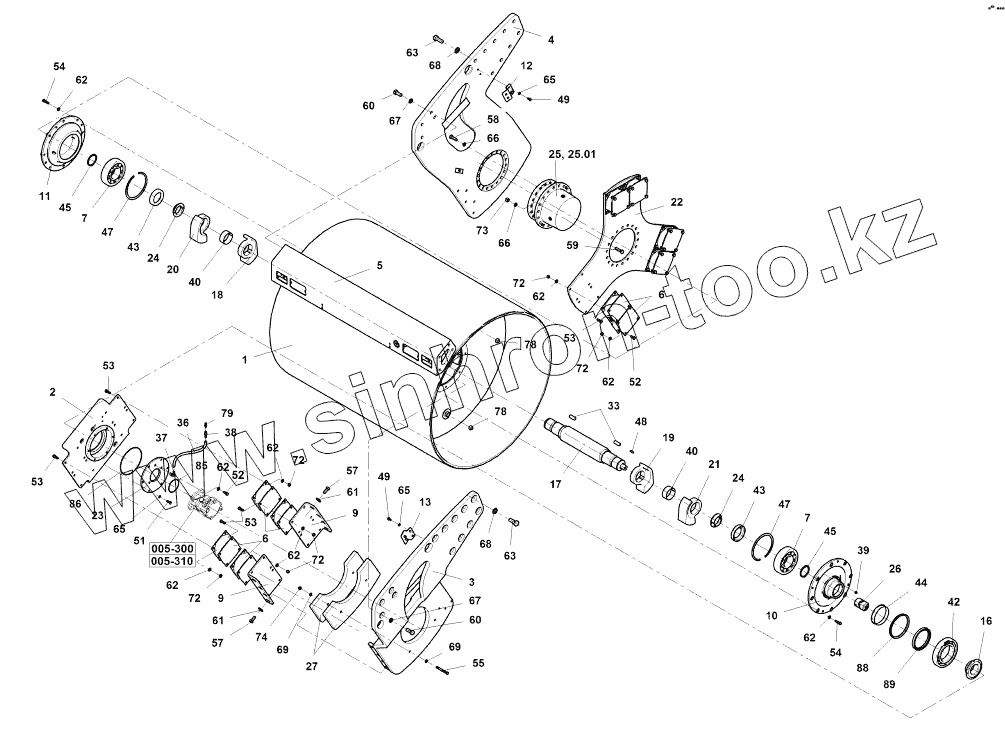

Каталог запасных частей к технике: Ammann AV110X. Drum
1
2
3
4
5
6
6
7
7
9
9
10
11
12
13
16
17
18
19
20
21
22
23
24
24
25
26
27
33
36
37
38
39
40
40
42
43
43
44
45
45
47
47
48
49
49
51
52
52
53
53
53
53
54
54
55
57
57
58
59
60
60
61
61
62
62
62
62
62
62
62
62
63
63
65
65
65
66
66
67
67
68
68
69
69
72
72
72
72
72
73
74
78
78
79
85
86
88
89
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-02389А | 4-02389А | Drum | |
| 1 | 4-02390А | Drum | |
| 2 | 4-20283 | Plate | |
| 3 | 4-03554А | Bracket | |
| 4 | 4-03555А | Bracket | |
| 5 | 4-03497А | Transverse beam | |
| 6 | 4-9200000031 | Rubber mount | |
| 7 | 4-5462040654 | Bearing | |
| 9 | 4-02406А | Plate | |
| 10 | 4-04041А | Flange | |
| 11 | 4-04042А | Flange | |
| 12 | 4-11809А | Holder | |
| 13 | 4-11810А | Holder | |
| 16 | 4-05729А | Screw | |
| 17 | 4-02409А | Shaft | |
| 18 | 4-02550А | Eccentric | |
| 19 | 4-02551А | Eccentric | |
| 20 | 4-02552А | Transfer weight | |
| 21 | 4-02553А | Transfer weight | |
| 22 | 4-02398А | Driver | |
| 23 | 4-06104А | Cover | |
| 24 | 4-321602 | Ring | |
| 25 | 4-9501000082 | Gear | |
| 25.01 | 1194748 | Sealing kit | |
| 26 | 4-9512000351 | Clutch | |
| 27 | 4-23048 | Weight | |
| 33 | 4-3256222055 | Feather key | |
| 36 | 4-6160090527 | Hose | |
| 37 | 4-5531020067 | Connector | |
| 38 | 4-5531020066 | Connector | |
| 39 | 4-5160670064 | Sealing plug | |
| 40 | 4-3910009041 | Bushing | |
| 42 | 4-5462010129 | Bearing | |
| 43 | 4-5462041050 | Ring | |
| 44 | 4-6160142401 | Ring | |
| 45 | 4-5535010081 | Circlip | |
| 47 | 4-5535010360 | Circlip | |
| 48 | 4-3256210032 | Feather key | |
| 49 | 4-3002510020 | Hexagon head screw | |
| 51 | 4-3002510030 | Hexagon head screw | |
| 52 | 4-3002512030 | Hexagon head screw | |
| 53 | 4-3002512035 | Hexagon head screw | |
| 54 | 4-3002512045 | Hexagon head screw | |
| 55 | 4-3001512110 | Hexagon head screw | |
| 57 | 4-3002516040 | Hexagon head screw | |
| 58 | 4-3002516050 | Hexagon head screw | |
| 59 | 4-3002516060 | БОЛТ | |
| 60 | 4-3002520050 | Hexagon head screw | |
| 61 | 4-3679600170 | Strain washer | |
| 62 | 4-3170600130 | Washer | |
| 63 | 4-3002524060 | Hexagon head screw | |
| 65 | 4-3900017100 | Spring washer | |
| 66 | 4-3900017160 | Spring washer | |
| 67 | 4-3900017200 | Spring washer | |
| 68 | 4-3170600240 | Washer | |
| 69 | 4-3900017120 | Spring washer | |
| 72 | 4-3530020120 | Nut | |
| 73 | 4-3048500160 | Hexagon nut | |
| 74 | 4-3530020120 | Nut | |
| 78 | 4-5358570028 | Plug | |
| 79 | 4-5353080052 | Venting valve | |
| 85 | 4-6160142061 | O-ring | |
| 86 | 4-6160140289 | Ring | |
| 88 | 4-6160142402 | Ring | |
| 89 | 4-6160070371 | Gasket |
