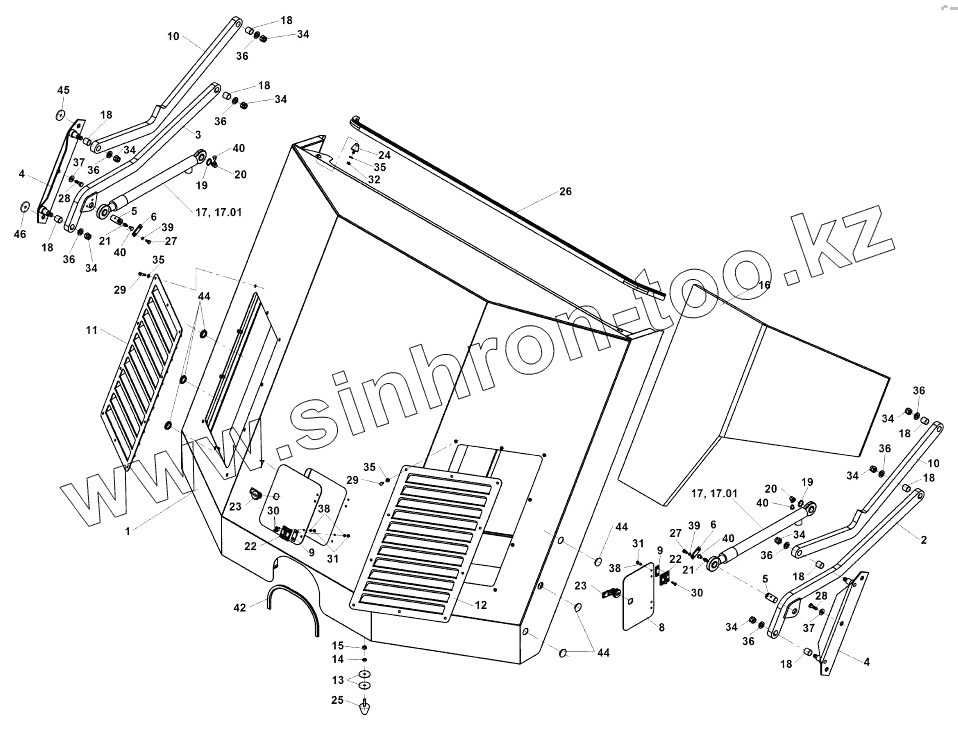

Каталог запасных частей к технике: Ammann AV110X. Cover hood
1
2
3
4
4
5
5
6
6
7
8
9
9
9
9
10
10
11
12
13
14
15
16
17
17
18
18
18
18
18
18
18
18
19
19
20
20
21
21
22
22
23
23
24
25
26
27
27
28
28
29
29
30
30
30
30
31
31
32
34
34
34
34
34
34
34
34
35
35
35
36
36
36
36
36
36
36
36
37
37
38
38
38
38
38
38
39
39
40
40
40
40
42
44
44
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-03779А | 4-03779А | Covering hood | |
| 1 | 4-10726А | Covering hood | |
| 2 | 4-03828А | Pull rod | |
| 3 | 4-03829А | Pull rod | |
| 4 | 4-10734А | Hinge | |
| 5 | 4-03825А | Bolt | |
| 6 | 4-03827А | Plate | |
| 7 | 4-03834А | Door | |
| 8 | 4-03840А | Door | |
| 9 | 4-03841А | Washer | |
| 9 | 4-03841А | Washer | |
| 10 | 4-03867А | Pull rod | |
| 11 | 4-03872А | Grate | |
| 12 | 4-03873А | Grate | |
| 13 | 4-440541 | Washer | |
| 14 | 4-3174000082 | Lock washer | |
| 15 | 4-3048500080 | Hexagon nut | |
| 16 | 4-04604А | Insulation | |
| 17 | 4-5451180155 | Hydraulic cylinder | |
| 17.01 | 4-8300750680 | Gasket | |
| 18 | 4-3910001820 | Bushing | |
| 19 | 4-5535010020 | Circlip | |
| 20 | 4-5536210001 | Greasing nipple | |
| 21 | 4-5536210003 | СМАЗОЧНАЯ ГОЛОВКА | |
| 22 | 4-5358010501 | Hinge | |
| 23 | 4-9500001016 | Tongue lock | |
| 24 | 4-6160081476 | Rubber mount | |
| 25 | 4-6160070617 | Rubber mount | |
| 26 | 4-6160081070 | Profile | |
| 27 | 4-3002506012 | Hexagon head screw | |
| 28 | 4-3002508020 | Hexagon head screw | |
| 29 | 4-3113106020 | Socket head cap screw | |
| 30 | 4-3115505016 | Oval head countersunk screw | |
| 30 | 4-3115505016 | Oval head countersunk screw | |
| 31 | 4-3048500050 | Hexagon nut | |
| 32 | 4-3048500060 | Hexagon nut | |
| 34 | 4-3149200120 | Nut | |
| 35 | 4-3170200064 | ШАЙБА | |
| 36 | 4-3170200130 | Washer | |
| 37 | 4-3172900090 | Washer | |
| 38 | 4-3174000051 | Lock washer | |
| 38 | 4-3174000051 | Lock washer | |
| 39 | 4-3174000061 | Lock washer | |
| 40 | 4-5358030042 | Plug | |
| 42 | 4-6150020021 | Rubber profile | |
| 44 | 4-5358570068 | Plug | |
| 45 | 4-440541 | Washer | |
| 46 | 4-440488 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
