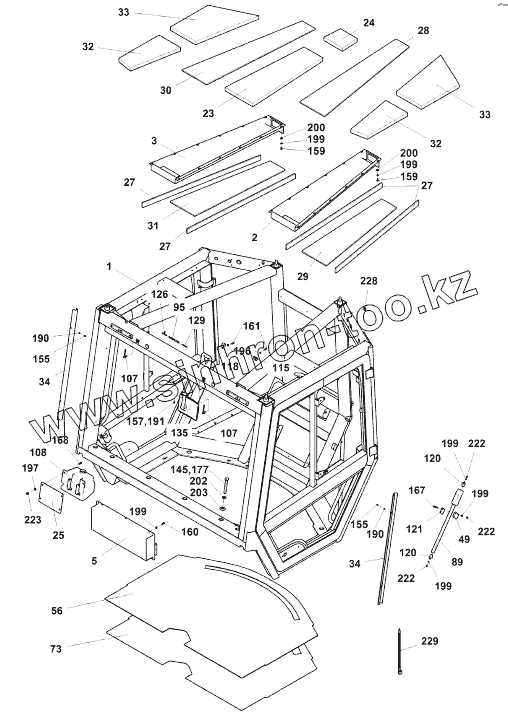

Каталог запасных частей к технике: Ammann AV110X. Cab part C
1
2
3
5
23
24
25
27
27
27
28
29
30
31
32
32
33
33
34
34
49
56
73
89
95
107
107
108
115
118
120
120
121
126
129
135
145
155
155
157
159
159
160
161
167
168
177
190
190
191
196
197
199
199
199
199
199
199
200
200
202
203
222
222
222
223
228
229
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-14637 | 4-14637 | Cabin | |
| 1 | 4-14680 | Cabin | |
| 2 | 4-14668 | Duct | |
| 3 | 4-14669 | Duct | |
| 5 | 4-07048А | Box | |
| 23 | 4-14802 | Insulating plate | |
| 24 | 4-14803 | Insulating plate | |
| 25 | 4-06039А | Holder | |
| 27 | 4-14732 | Insulation | |
| 28 | 4-14682 | Insulation | |
| 29 | 4-14711 | Insulation | |
| 30 | 4-14683 | Insulation | |
| 31 | 4-14712 | Insulation | |
| 32 | 4-06157А | Insulation | |
| 33 | 4-06158А | Insulation | |
| 34 | 4-05824А | Bar | |
| 49 | 4-08233А | Washer | |
| 56 | 4-04892А | Rubber | |
| 73 | 4-05975А | Insulation | |
| 89 | 4-20055 | Lever | |
| 95 | 4-6150080004 | Hose | |
| 107 | 4-5358190064 | Windshield washer | |
| 108 | 4-5358220075 | ПРЫСКАТЕЛЬ | |
| 115 | 4-5325030035 | Clamping device | |
| 118 | 4-5325030034 | Clamping device | |
| 120 | 4-6160081476 | Rubber mount | |
| 121 | 4-4100030188 | Spring | |
| 126 | 4-5358020239 | РАСПРЕДЕЛ КОРОБКА | |
| 129 | 4-5531020051 | Clutch | |
| 135 | 4-5358010159 | Mirror | |
| 145 | 4-6150090097 | Cover | |
| 155 | 4-3113104008 | Socket head cap screw | |
| 157 | 4-3113105012 | Socket head cap screw | |
| 159 | 4-3002506012 | Hexagon head screw | |
| 160 | 4-3002506016 | Hexagon head screw | |
| 161 | 4-3113106016 | Socket head cap screw | |
| 167 | 4-3001506030 | Hexagon head screw | |
| 168 | 1196374 | Countersunk screw | |
| 177 | 4-3001516110 | Hexagon head screw | |
| 190 | 4-3170200043 | ШАЙБА | |
| 191 | 4-3170200053 | Washer | |
| 196 | 4-3170200064 | ШАЙБА | |
| 197 | 4-3170200084 | ШАЙБА | |
| 199 | 4-3900017060 | Spring washer | |
| 200 | 4-3172900066 | Washer | |
| 202 | 4-3900017160 | Spring washer | |
| 203 | 4-3172700180 | ШАЙБА | |
| 222 | 4-3048500060 | Hexagon nut | |
| 223 | 4-3149200080 | ГАЙКА | |
| 228 | 4-5358570060 | Plug | |
| 229 | 4-6150051016 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
