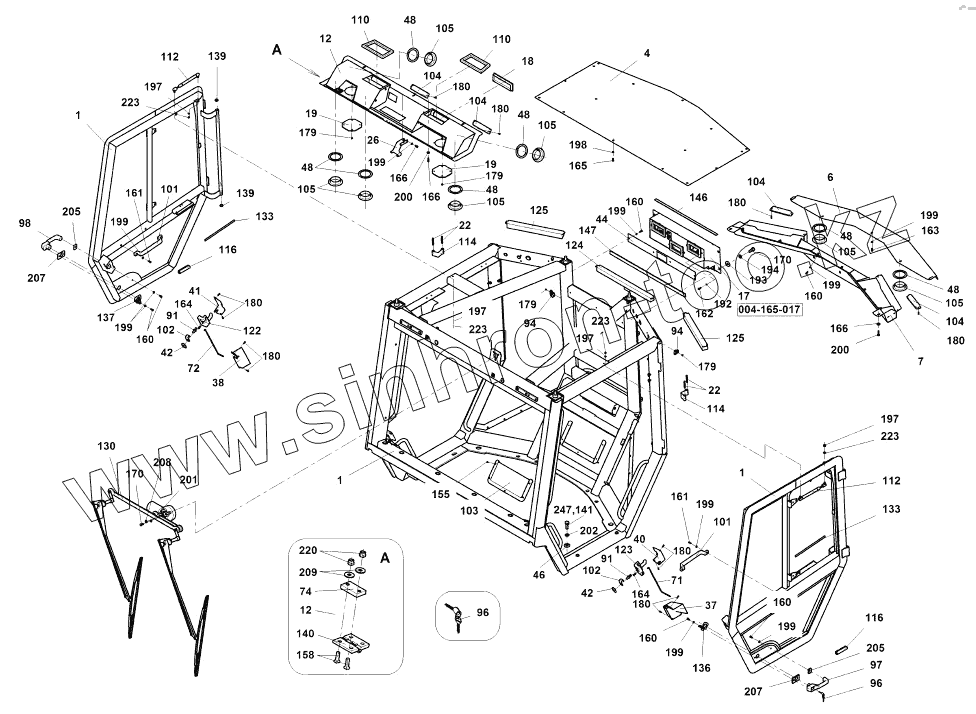

Каталог запасных частей к технике: Ammann AV110X. Cab part A
1
1
1
4
6
7
12
12
17
18
19
19
22
22
26
37
38
40
41
42
42
44
46
48
48
48
48
48
48
71
72
74
91
91
94
94
96
96
97
98
101
101
102
102
103
104
104
104
104
105
105
105
105
105
105
110
110
112
112
114
114
116
116
122
123
124
125
125
130
133
133
136
137
139
139
140
141
146
147
155
158
160
160
160
160
160
161
161
162
163
164
164
165
166
166
166
170
170
179
179
179
179
180
180
180
180
180
180
180
180
192
193
194
197
197
197
197
198
199
199
199
199
199
199
199
199
199
199
200
200
201
202
205
205
207
207
208
209
220
223
223
223
223
247
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-14637 | 4-14637 | Cabin | |
| 1 | 4-14680 | Cabin | |
| 4 | 4-14687 | Padding | |
| 6 | 4-15831 | Cover | |
| 7 | 4-14639 | Cover | |
| 12 | 4-07191А | Cover | |
| 17 | 4-S12824А | Ventilator | |
| 18 | 4-5358010454 | Dummy plug | |
| 19 | 4-5358010425 | Grate | |
| 22 | 4-435471 | Bolt | |
| 26 | 4-05816А | Bracket | |
| 37 | 4-05916А | Cover | |
| 38 | 4-06081А | Cover | |
| 40 | 4-05915А | Cover | |
| 41 | 4-06090А | Cover | |
| 42 | 4-06971А | Nut | |
| 44 | 4-14681 | Plate | |
| 46 | 4-06853А | Washer | |
| 48 | 4-07136А | Washer | |
| 71 | 4-05908А | Pull rod | |
| 72 | 4-06079А | Pull rod | |
| 74 | 4-06172А | Plate | |
| 91 | 4-9500001012 | Bolt | |
| 94 | 4-9200000001 | Hook | |
| 96 | 4-9500001014 | Key | |
| 97 | 4-9500001004 | Crank | |
| 98 | 4-9500001005 | Crank | |
| 101 | 4-6150030011 | Handle | |
| 102 | 4-9500001013 | Cover | |
| 103 | 4-5358010421 | Net | |
| 104 | 4-9200000014 | Venti ation nozze | |
| 105 | 4-9200000002 | Ventilation nozzle | |
| 110 | 4-6120070105 | Gasket | |
| 112 | 4-5358020382 | Gas pressure spring | |
| 114 | 4-6580050008 | Band | |
| 116 | 4-6150020020 | Rubber profile | |
| 122 | 4-9500001006 | Lever | |
| 123 | 4-9500001007 | Lever | |
| 124 | 4-5351010178 | Roller blind | |
| 125 | 4-5358010183 | Roller blind | |
| 130 | 4-5358190024 | Scraper | |
| 133 | 4-6160081210 | Weatherseal | |
| 136 | 4-9500001009 | Door lock | |
| 137 | 4-9500001008 | Door lock | |
| 139 | 4-5358570060 | Plug | |
| 140 | 4-5358010501 | Hinge | |
| 141 | 4-6150090096 | Cover | |
| 146 | 4-15080 | Gasket | |
| 147 | 4-15473 | Gasket | |
| 155 | 4-3113104008 | Socket head cap screw | |
| 158 | 4-3115105016 | Countersunk screw | |
| 160 | 4-3002506016 | Hexagon head screw | |
| 161 | 4-3113106016 | Socket head cap screw | |
| 162 | 4-3002506016 | Hexagon head screw | |
| 163 | 4-3002506020 | Hexagon head screw | |
| 164 | 4-3115106020 | Countersunk screw | |
| 165 | 1196387 | Oval head countersunk screw | |
| 166 | 4-3002506025 | Hexagon head screw | |
| 170 | 4-3002508020 | Hexagon head screw | |
| 179 | 4-3123804010 | Screw | |
| 180 | 4-3123204016 | Plate screw | |
| 192 | 4-3174000061 | Lock washer | |
| 193 | 4-3172600084 | Washer | |
| 194 | 4-3900017080 | Spring washer | |
| 197 | 4-3170200084 | ШАЙБА | |
| 198 | 4-4100280045 | Washer | |
| 199 | 4-3900017060 | Spring washer | |
| 200 | 4-3172900066 | Washer | |
| 201 | 4-3900017080 | Spring washer | |
| 202 | 4-3900017160 | Spring washer | |
| 205 | 4-9500001011 | Washer | |
| 207 | 4-9500001010 | Washer | |
| 208 | 4-3174400105 | ШАЙБА | |
| 209 | 4-3172900055 | Washer | |
| 220 | 4-3149200050 | Nut | |
| 223 | 4-3149200080 | ГАЙКА | |
| 247 | 4-3002516045 | Hexagon head screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
