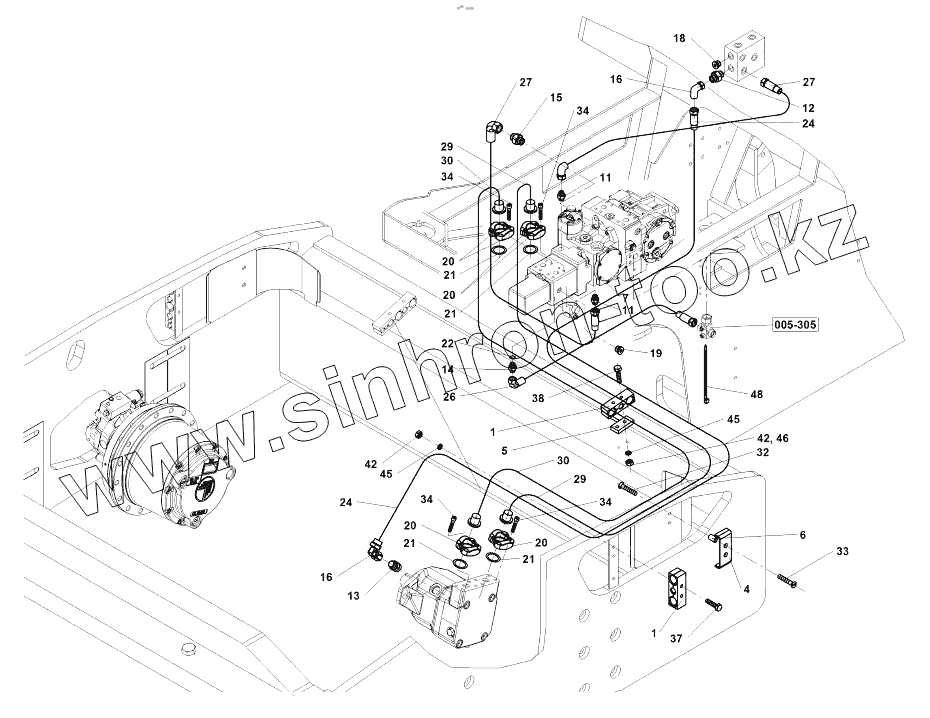

Каталог запасных частей к технике: Ammann ASC 170. Vibration hydraulics
1
1
4
5
6
7
11
11
12
13
14
15
16
16
18
19
20
20
20
20
21
21
21
21
22
24
24
26
27
27
29
29
30
30
32
33
34
34
34
34
37
38
42
42
45
45
46
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107649 | 4-107649 | Vibration hydraulics | |
| 1 | 4-11894А | Clip | |
| 4 | 4-14738 | Holder | |
| 5 | 4-11854А | Washer | |
| 6 | 4-12528А | Spacer element | |
| 7 | 4-9540000142 | Dummy plug | |
| 11 | 4-5160650031 | Screwed connection | |
| 12 | 4-5160650014 | Connector | |
| 13 | 4-5160650086 | Connector | |
| 14 | 4-5160571786 | Connector | |
| 15 | 4-5160650040 | МУФТА | |
| 16 | 4-5160670029 | Screwed connection | |
| 18 | 4-5160670040 | Plug | |
| 19 | 4-5160670103 | Plug | |
| 20 | 4-5160580016 | Yoke | |
| 21 | 4-6160142202 | O-ring | |
| 22 | 4-6160142027 | O-ring | |
| 24 | 1166005 | Hose | |
| 26 | 4-5160570877 | Hydr hose | |
| 27 | 4-5160570289 | Hydraulic hose | |
| 29 | 4-5160573264 | Hydr hose | |
| 30 | 1167985 | Hydr hose | |
| 32 | J908876 | Countersunk screw | |
| 33 | 1-902973 | Countersunk screw | |
| 34 | 4-3114310035 | Socket head cap screw | |
| 37 | 4-3001510065 | Hexagon head screw | |
| 38 | 4-3117610070 | Stud bolt | |
| 42 | 4-3048500100 | Hexagon nut | |
| 45 | 4-3900017100 | Spring washer | |
| 46 | 4-6150090095 | Cover | |
| 48 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
