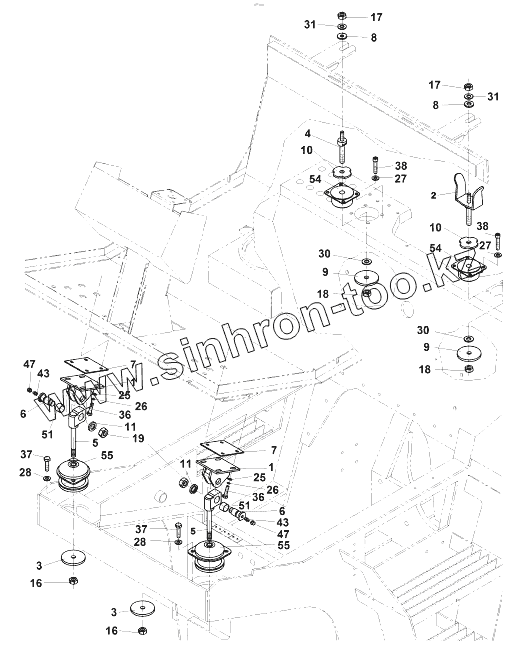

Каталог запасных частей к технике: Ammann ASC 170. Platform mounting
1
1
2
3
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
16
16
17
17
18
18
19
25
25
26
26
27
27
28
28
30
30
31
31
36
36
37
37
38
38
43
43
47
47
51
51
54
54
55
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-106523 | 4-106523 | Platform support | |
| 1 | 4-322404 | Bracket | |
| 2 | 4-321097 | Screw | |
| 3 | 4-433639 | Fuse | |
| 4 | 4-321095 | Screw | |
| 5 | 4-322408 | Eye | |
| 6 | 4-441048 | Bolt | |
| 7 | 4-433686 | Washer | |
| 8 | 4-440493 | Washer | |
| 9 | 4-439406 | Fuse | |
| 10 | 4-439407 | Fuse | |
| 11 | 4-441066 | Washer | |
| 16 | 4-3149200160 | Nut | |
| 17 | 4-3048700160 | Hexagon nut | |
| 18 | 4-3149200200 | Nut | |
| 19 | 4-3149201520 | Nut | |
| 25 | 4-3170600100 | Washer | |
| 26 | 4-3900017100 | Spring washer | |
| 27 | 4-3900017120 | Spring washer | |
| 28 | 4-3170200130 | Washer | |
| 30 | 4-3170600210 | Washer | |
| 31 | 4-3679600170 | Strain washer | |
| 36 | 4-3002510025 | Hexagon head screw | |
| 37 | 4-3002512025 | Hexagon head screw | |
| 38 | 4-3114312025 | Socket head cap screw | |
| 43 | 4-5536210006 | Greasing nipple | |
| 47 | 4-5358030042 | Plug | |
| 51 | 4-3910002525 | Bushing | |
| 54 | 1160052 | Rubber mount | |
| 55 | 4-6120080016 | Rubber mount |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
