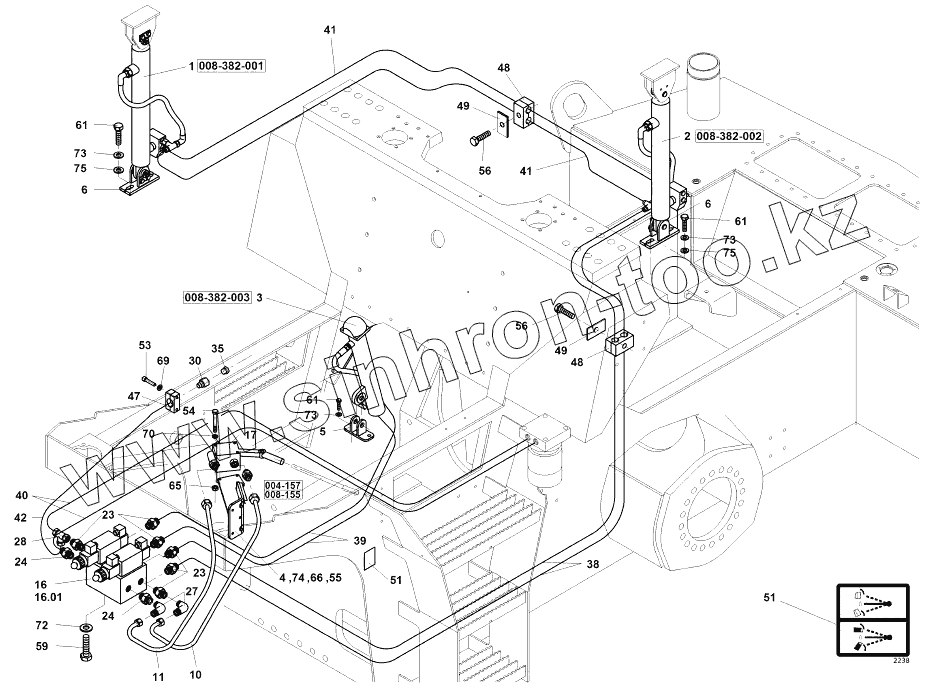

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107724 | 4-107724 | Lifting hydraulics | |
| 1 | 4-S211591 А | Fluid motor | |
| 2 | 4-S211590 А | Fluid motor | |
| 3 | 4-S211592 А | Fluid motor | |
| 4 | 4-323949 | Holder | |
| 5 | 4-324082 | Bracket | |
| 6 | 4-323948 | Bracket | |
| 10 | 4-613674 | Pipe | |
| 11 | 4-613675 | Pipe | |
| 16 | 1254512 | Lifting hydraulic block | |
| 16.01 | 1253921 | Electromagnet | |
| 17 | 4-5451080041 | Hand pump | |
| 23 | 4-5160650139 | Connector | |
| 24 | 4-5160650140 | Connector | |
| 27 | 4-5160670076 | Adjustable male stud run | |
| 28 | 4-5160660078 | L-connection | |
| 30 | 4-5160670128 | Reduction | |
| 35 | 4-5160670107 | ПРОБКА | |
| 38 | 4-5160571205 | Hydraulic hose | |
| 39 | 4-5160571140 | Hydr hose | |
| 40 | 4-5160571141 | Hydr hose | |
| 41 | 4-5160572642 | Hydr hose | |
| 42 | 4-5160571796 | Hydr hose | |
| 47 | 4-5358050094 | Sleeve | |
| 48 | 4-5358050076 | Sleeve | |
| 49 | 4-5358050032 | Cap | |
| 51 | 4-6531012644 | Symbol | |
| 53 | 4-3114306028 | Socket head cap screw | |
| 54 | 4-3001506070 | Hexagon head screw | |
| 55 | 4-3001508028 | Hexagon head screw | |
| 56 | 4-3001508035 | Hexagon head screw | |
| 59 | 4-3001510045 | БОЛТ | |
| 61 | 4-3002512030 | Hexagon head screw | |
| 65 | 4-3048500060 | Hexagon nut | |
| 66 | 4-3048500080 | Hexagon nut | |
| 69 | 4-3170200064 | ШАЙБА | |
| 70 | 4-3174000061 | Lock washer | |
| 72 | 4-3900017100 | Spring washer | |
| 73 | 4-3900017120 | Spring washer | |
| 74 | 4-3900017080 | Spring washer | |
| 75 | 4-3679600130 | Strain washer |
