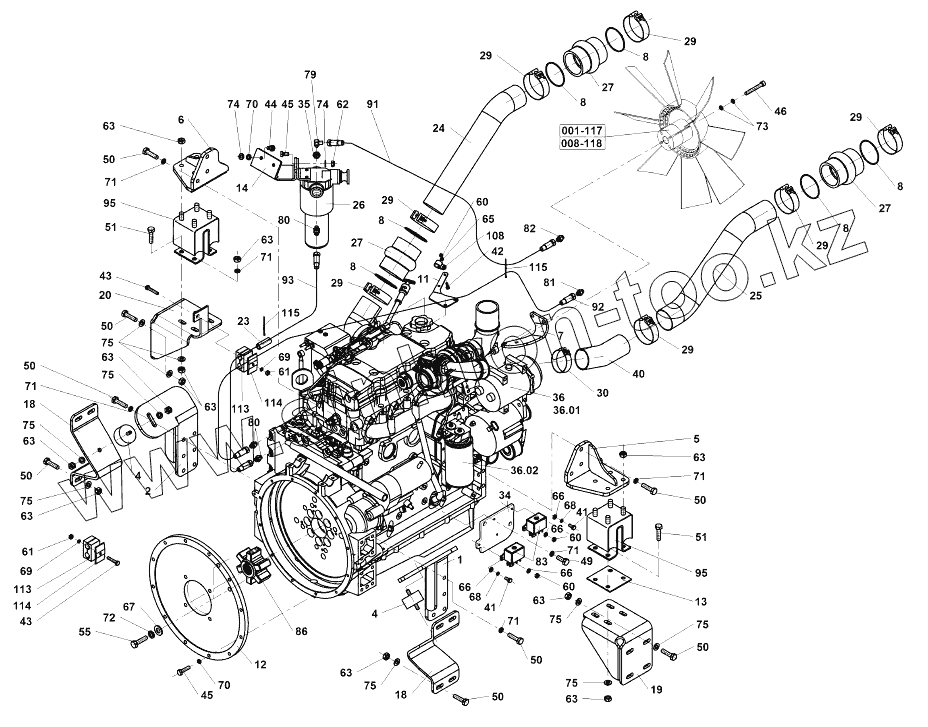

Каталог запасных частей к технике: Ammann ASC 170. Engine
1
2
4
4
5
6
7
8
8
8
8
8
8
11
12
13
14
18
18
19
20
23
24
25
26
27
27
27
29
29
29
29
29
29
29
30
34
35
36
36.01
36.02
40
41
41
42
43
43
44
45
45
46
49
50
50
50
50
50
50
50
50
51
51
55
60
60
60
61
61
62
63
63
63
63
63
63
63
63
63
63
65
66
66
66
66
67
68
68
69
69
70
70
71
71
71
71
71
71
72
73
74
74
75
75
75
75
75
75
75
75
79
80
80
81
82
83
86
91
92
93
95
95
108
113
113
114
114
115
115
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107358 | 4-107358 | Engine | |
| 1 | 4-324393 | Bracket | |
| 2 | 4-324394 | Bracket | |
| 4 | 4-6160070620 | Rubber mount | |
| 5 | 4-324397 | Bracket | |
| 6 | 4-324398 | Bracket | |
| 7 | 4-08033А | Holder | |
| 8 | 4-9541111101 | Ring | |
| 11 | 4-324479 | Holder | |
| 12 | 4-323444 | Flange | |
| 13 | 4-433832 | Washer | |
| 14 | 4-444059 | Holder | |
| 18 | 4-210925 | Bracket | |
| 19 | 4-210604 | Bracket | |
| 20 | 4-211612 | Bracket | |
| 23 | 4-613773 | Insert | |
| 24 | 4-5160571935 | Pipe | |
| 25 | 4-5160571934 | Pipe | |
| 26 | 4-9501000102 | Fuel filter | |
| 27 | 4-740140 | Coupling piece | |
| 29 | 4-8300750365 | Clip | |
| 30 | 4-5531020029 | Hose clamp | |
| 34 | 4-22095 | Holder | |
| 35 | 4-444058 | Connector | |
| 36 | 4-9501000095 | Engine | |
| 36.01 | 4-9501000101 | Insert | |
| 36.02 | 4-9501000048 | Oil filter | |
| 40 | 4-6160084021 | Manifold | |
| 41 | 4-3002506012 | Hexagon head screw | |
| 42 | 4-3002506020 | Hexagon head screw | |
| 43 | 4-3001508060 | Hexagon head screw | |
| 44 | 4-3002510020 | Hexagon head screw | |
| 45 | 4-3001510035 | Hexagon head screw | |
| 46 | 4-3001510120 | Hexagon head screw | |
| 49 | 4-3002512025 | Hexagon head screw | |
| 50 | 4-3002512035 | Hexagon head screw | |
| 51 | 4-3002512040 | Hexagon head screw | |
| 55 | 4-3002516020 | Hexagon head screw | |
| 60 | 4-3149200060 | ГАЙКА | |
| 61 | 4-3048500080 | Hexagon nut | |
| 62 | 4-3530021100 | Nut | |
| 63 | 4-3530020120 | Nut | |
| 65 | 4-3170600064 | Washer | |
| 66 | 4-3170200064 | ШАЙБА | |
| 67 | 4-3170200170 | Washer | |
| 68 | 4-3900017060 | Spring washer | |
| 69 | 4-3900017080 | Spring washer | |
| 70 | 4-3900017100 | Spring washer | |
| 71 | 4-3900017120 | Spring washer | |
| 72 | 4-3900017160 | Spring washer | |
| 73 | 4-3170600100 | Washer | |
| 74 | 4-3679600100 | Strain washer | |
| 75 | 4-3679600130 | Strain washer | |
| 79 | 4-5160670029 | Screwed connection | |
| 80 | 4-5160650150 | Connector | |
| 81 | 4-5160650059 | Screwed connection | |
| 82 | 4-5160650098 | Connector | |
| 83 | 4-5422070104 | Contactor | |
| 86 | 4-9512000331 | Hydraulic coupling | |
| 91 | 4-5160571866 | Hydr hose | |
| 92 | 4-5160571867 | Hydr hose | |
| 93 | 4-5160571885 | Hydr hose | |
| 95 | 4-5353070108 | Rubber mount | |
| 108 | 4-5325030033 | Clamping device | |
| 113 | 4-5358050066 | Sleeve | |
| 114 | 4-5358050047 | Cap | |
| 115 | 4-6150051016 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
