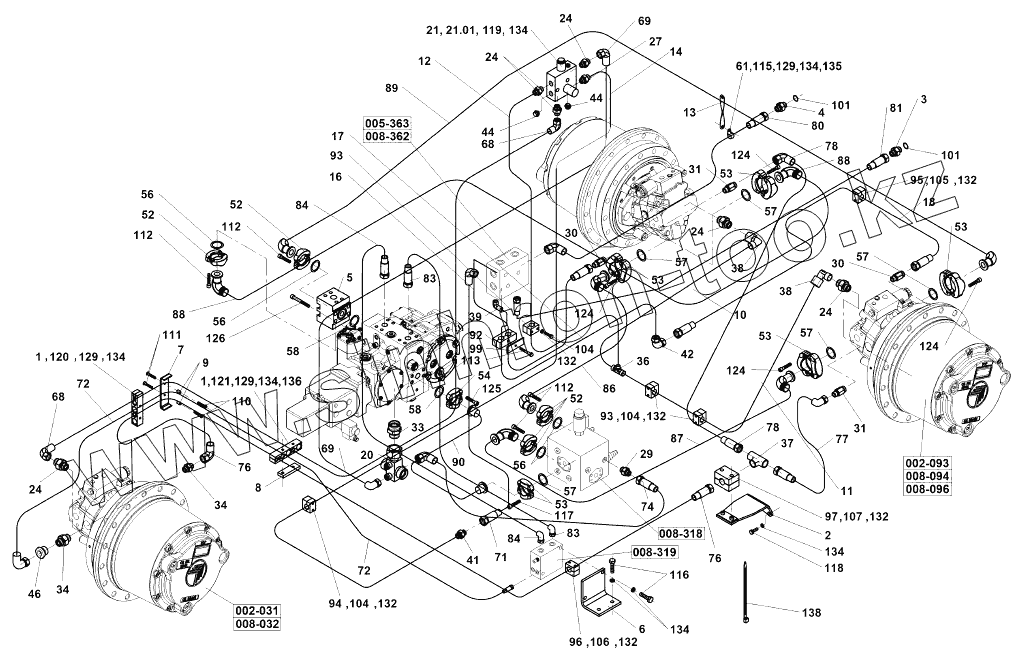

Каталог запасных частей к технике: Ammann ASC 170. Driving hydraulics

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
20
21
21.01
24
24
24
24
24
27
29
30
30
31
31
33
34
34
36
37
38
38
39
41
42
44
44
46
52
52
52
53
53
53
53
53
54
56
56
56
57
57
57
57
57
58
58
61
68
68
69
69
71
72
72
74
76
76
77
78
78
80
81
83
83
84
84
86
87
88
88
89
90
92
93
93
94
95
96
97
99
101
101
104
104
104
105
106
107
110
111
112
112
112
113
115
116
117
118
119
120
121
124
124
124
124
125
126
129
129
129
132
132
132
132
132
132
134
134
134
134
134
134
135
136
138
Позиция на иллюстрации Заводской номер детали Название детали
4-107743 4-107743 Driving hydraulics
1 4-11859А Clip
2 4-324729 Bracket
3 4-319877 Connector
4 4-324677 Connector
5 4-319771 Cube
6 4-443906 Holder
7 4-12526А Holder
8 4-11853А Washer
9 4-12528А Spacer element
10 4-614085 Pipe
11 4-614086 Pipe
12 4-613669 Pipe
13 4-444267 Holder
14 4-613670 Pipe
16 4-614084 Pipe
17 4-613672 Pipe
18 4-614083 Pipe
20 4-5160572134 Hydraulic body
21 4-5451050067 Hydraulic brake block
21.01 4-8300750318 Electromagnet
24 4-5160650058 Screwed connection
27 4-5160650078 Connector
29 4-5160650166 Connector
30 4-5160650086 Connector
31 4-5160650033 Connector
33 4-5160650041 Connector
34 4-5160572081 Connector
36 4-5160660059 T-socket
37 4-5160660100 T-socket
38 4-5160670087 Screwed connection
39 4-5160670029 Screwed connection
41 1204252 Clutch
42 4-5160660012 Clutch
44 4-5160670114 Plug
46 4-5160680030 РЕДУКЦИЯ
52 4-5160580015 Semi-flange
53 4-5160580016 Yoke
54 4-5160580017 Yoke
56 4-6160142201 O-ring
57 4-6160142202 O-ring
58 4-6160142203 O-ring
61 4-5160572175 Clip
68 4-5160571793 Hydr hose
69 4-5160572160 Hydr hose
71 4-5160571792 Hydr hose
72 4-5160573263 Hydr hose
74 4-5160570953 Hydr hose
76 4-5160571884 Hydr hose
77 4-5160571881 Hydr hose
78 4-5160571194 Hydr hose
80 4-5160572048 Hydr hose
81 4-5160570615 Hydraulic hose
83 4-5160572140 Hydr hose
84 4-5160572141 Hydr hose
86 4-5160572138 Hydr hose
87 4-5160572139 Hydr hose
88 4-5160571238 Hydr hose
89 4-5160571239 Hydr hose
90 4-5160572135 Hydr hose
92 4-5358050027 Sleeve
93 4-5358050022 Sleeve
94 4-5358050011 ЗАЖИМ
95 4-5358050024 Sleeve
96 4-5358050039 Sleeve
97 4-5358050035 ОБОЙМА
99 4-5358050032 Cap
101 4-6090010424 Sealing ring
104 4-3114306022 Socket head cap screw
105 4-3114306028 Socket head cap screw
106 4-3114306030 Socket head cap screw
107 4-3114306040 Socket head cap screw
110 J908876 Countersunk screw
111 1-902973 Countersunk screw
112 4-3114308030 Socket head cap screw
113 4-3001508035 Hexagon head screw
115 4-3002510025 Hexagon head screw
116 4-3002510020 Hexagon head screw
117 4-3001510035 Hexagon head screw
118 4-3001510045 БОЛТ
119 4-3114310060 Socket head cap screw
120 4-3001510065 Hexagon head screw
121 4-3117610070 Stud bolt
124 4-3114310035 Socket head cap screw
125 4-3506771634 Hexagon head screw
126 4-3506771630 Hexagon head screw
129 4-3048500100 Hexagon nut
132 4-3170200064 ШАЙБА
134 4-3900017100 Spring washer
135 4-3170200105 Washer
136 4-6150090095 Cover
138 4-6150051019 Staple strip
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
