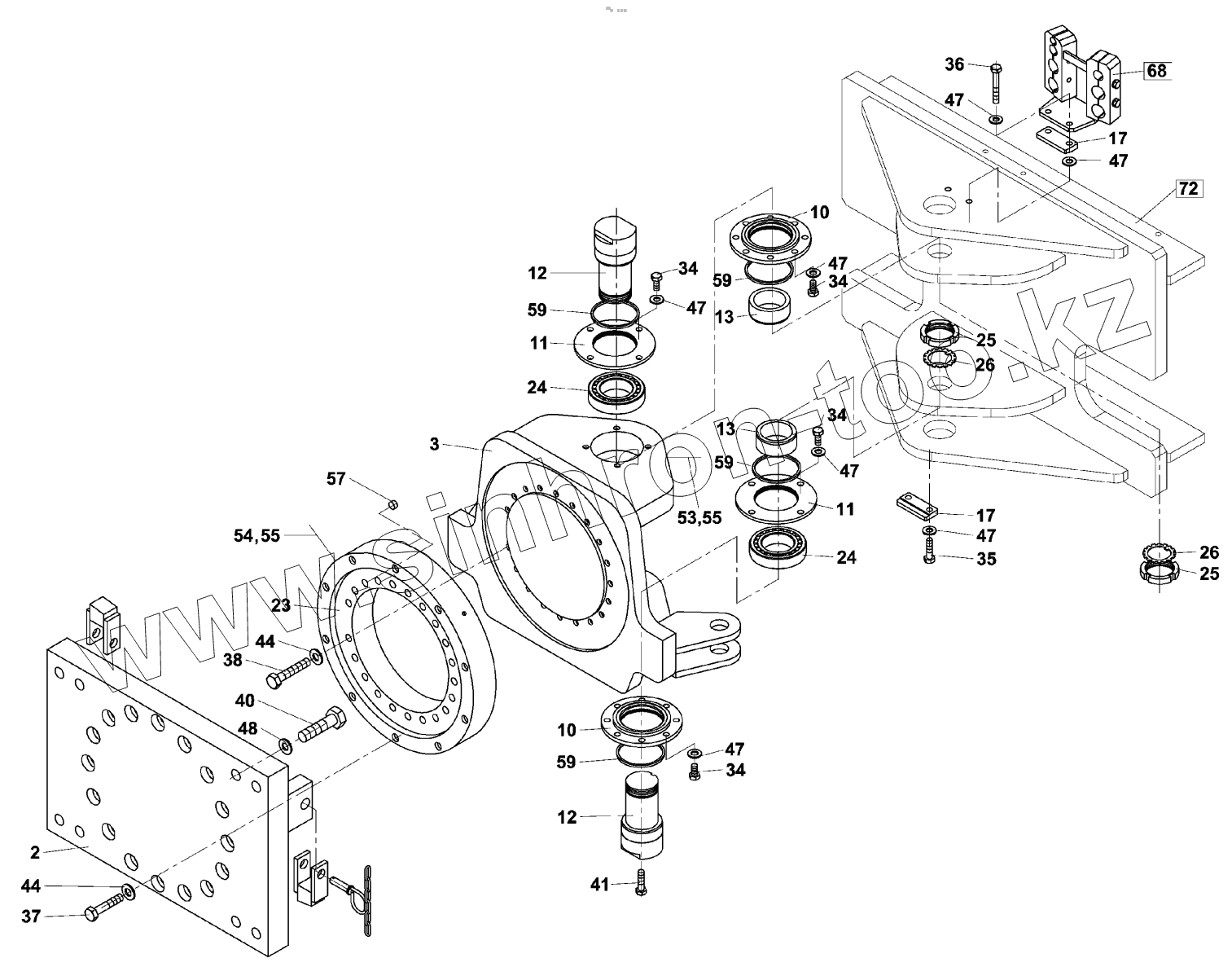

Каталог запасных частей к технике: Ammann ASC 120. ШАРНИР;JOINT
2
3
10
10
11
11
12
12
13
13
17
17
23
24
24
25
25
26
26
34
34
34
34
35
36
37
38
40
41
44
44
47
47
47
47
47
47
47
48
53
54
55
55
57
59
59
59
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107211 | 4-107211 | Joint | |
| 2 | 4-210458 | Plate | |
| 3 | 4-107210 | Hub | |
| 10 | 4-321489 | Cover | |
| 11 | 4-321488 | Cover | |
| 12 | 4-324160 | Bolt | |
| 13 | 4-439838 | Spacer element | |
| 17 | 4-439815 | Plate | |
| 23 | 4-5462000043 | Bearing | |
| 24 | 4-5462050015 | Bearing | |
| 25 | 4-5462110017 | Nut | |
| 26 | 4-5462110132 | Plate | |
| 34 | 4-3002512025 | Hexagon head screw | |
| 35 | 4-3002512030 | Hexagon head screw | |
| 36 | 4-3002512040 | Hexagon head screw | |
| 37 | 4-3001712050 | Hexagon head screw | |
| 38 | 4-3001712080 | Hexagon head screw | |
| 40 | 4-3001520070 | Hexagon head screw | |
| 41 | 4-3002516025 | Hexagon head screw | |
| 44 | 4-3170600130 | Washer | |
| 47 | 4-3900017120 | Spring washer | |
| 48 | 4-3900017200 | Spring washer | |
| 53 | 4-5536210001 | Greasing nipple | |
| 54 | 4-5536210006 | Greasing nipple | |
| 55 | 4-5358030042 | Plug | |
| 57 | 4-5358570033 | Plug | |
| 59 | 4-6160082015 | Stripper ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
