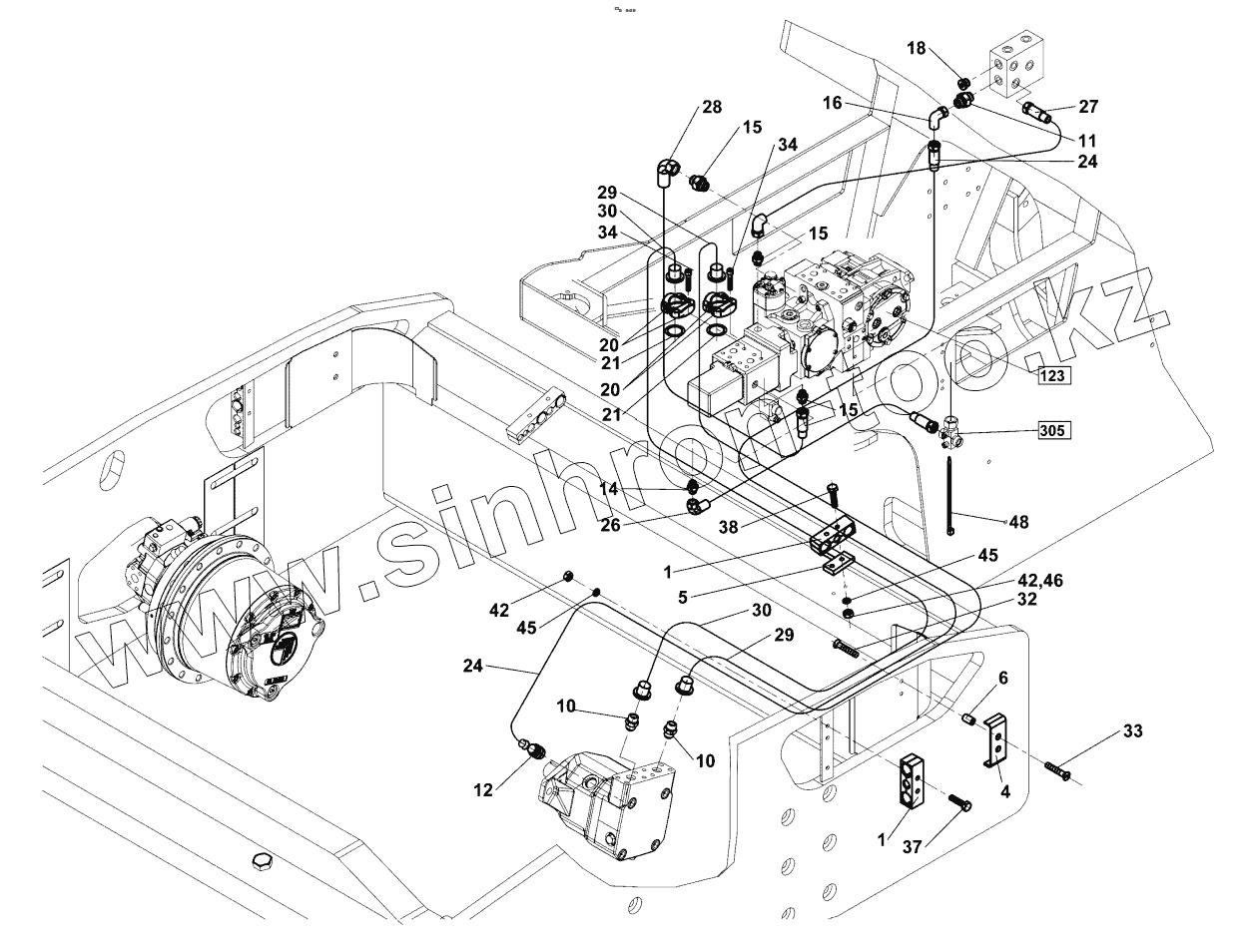

Каталог запасных частей к технике: Ammann ASC 110. Vibration hydraulics D
1
1
4
5
6
10
10
11
12
14
15
15
15
16
18
20
20
21
21
24
24
26
27
28
29
29
30
30
32
33
34
34
37
38
42
42
45
45
46
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4-107659 | 4-107659 | Vibration hydraulics | |
| 1 | 4-11851A | Clip | |
| 4 | 4-14738 | Holder | |
| 5 | 4-11854A | Washer | |
| 6 | 4-12561A | Spacer element | |
| 10 | 4-5160650034 | Connector | |
| 11 | 4-5160650014 | Connector | |
| 12 | 4-5160650086 | Connector | |
| 14 | 4-5160650043 | Connector | |
| 15 | 4-5160650040 | МУФТА | |
| 16 | 4-5160670029 | Screwed connection | |
| 18 | 4-5160670040 | Plug | |
| 20 | 4-5160580016 | Yoke | |
| 21 | 4-6160142202 | O-ring | |
| 24 | 1166005 | Hose | |
| 26 | 4-5160572288 | Hose | |
| 27 | 4-5160572156 | Hose | |
| 28 | 4-5160572158 | Hose | |
| 29 | 4-5160572154 | Hose | |
| 30 | 4-5160572557 | Hose pipe | |
| 32 | J908876 | Countersunk screw | |
| 33 | 1-902973 | Countersunk screw | |
| 34 | 4-3114310035 | Socket head cap screw | |
| 37 | 4-3001510065 | Hexagon head screw | |
| 38 | 4-3117610070 | Stud bolt | |
| 42 | 4-3048500100 | Hexagon nut | |
| 45 | 4-3900017100 | Spring washer | |
| 46 | 4-6150090095 | Cover | |
| 48 | 4-6150051019 | Staple strip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
